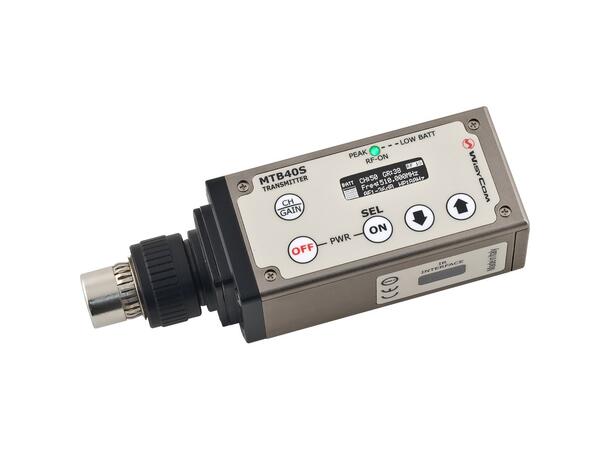

Wisycom MTB40S

MTB40S is an extremely small and light plug-on transmitter especially designed for professional wireless microphone applications.
MTB40S benefit of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation.

Improved features:
– New white OLED display
– New XLR locking system
– Integrated HW limiter

FEATURES

• Up to 232 MHz bandwidth in 470/798 MHz range
• Enhanced robustness against self-interferences and antenna performances thru a proprietary “intermodulation cancellation” circuit
• Miniature design with flexible pcb (no connectors) for extended reliability
• User selectable companding systems
  ENR (noise optimized)
  ENC (voice optimized)
• Input dynamic extension with an integrated HW limiter (30 dB above peak)
• P48 phantom power for condenser microphones
• New white OLED display (128 x 32 pixels)
• New XLR-3F connector with locking collar to ensuring an extremely tight noiseless fit!
• Infrared interface for management and firmware update
• Audio input circuitry with high linearity audio transformer
• Battery: 2 AA Alkaline or rechargeable NiMH or Lithium
