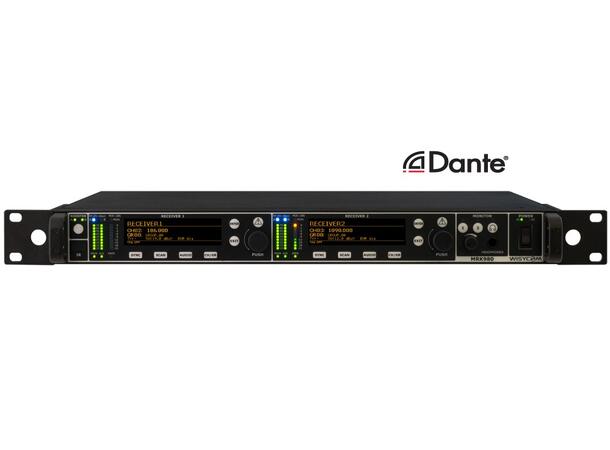

Wisycom MRK980 Dual True Diversity

Receiver with Dante on 19" 1U rack

Varenr: 115620
-+
Bestillingsvare (20 dager)

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseRESSURSER
Beskrivelse

Standard VHF & UHF version Wisycom MRK980

is a true diversity, ultra-wideband dual channel receiver. With its 1090MHz of band switching, it ensures the users an exceptional band flexibility, combined with a superb selectivity and intermodulation immunity, for best operating performances of the wireless microphone systems. MRK980 also features an internal DSP processor, Wisycom famous Multicompanding system, new Dante compatibility and a completely and renewed user interface, which make this system easy and quick to setup.

FEATURES

Two channels true diversity receiver (full DSP processing)

Up to 1090 MHz bandwidth in 170/1260 MHz range

Push to talk (PTT) enabled with dedicated outputs (optional)

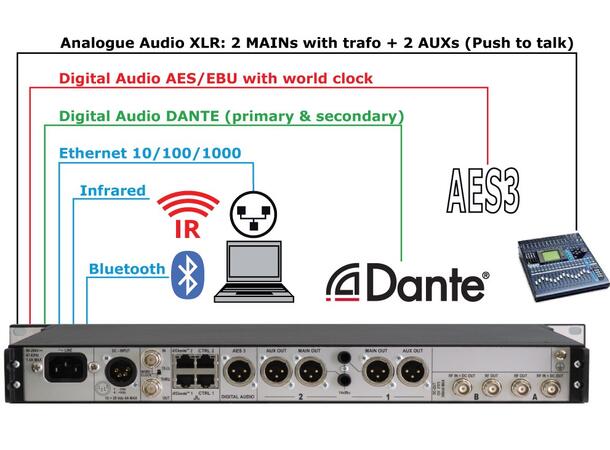

Analogue, AES/EBU & Dante outputs (with redundancy)

Dante machine Synchronized mode: no sample rate delay!

Next Gen Multiband front-end filtering:

High Q moving filter in 170-230 MHz

High Q moving filter in 470-800 MHz

High Q moving filter in 960-1160 MHz (DME) (or 806-810 MHz saw filter – Japan)

Country specific saw filters: USA 940-960 MHz or Japan 1240-1260 MH

Wideband and Narrowband DSP-FM operation (SW selectable):

Narrowband allows 50% more band efficiency (200/250 kHz channel density)

Narrowband allows about 3dB extra sensitivity and noise immunity

Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup

High contrast OLED display

Monitor & control through USB and Wisycom Manager 2.0 (computer SW)

Expansion slot for GPIO or future additional feature
