eMotion LV1 + Extreme Server-C + 32-Preamp Stagebox + Axis Scope

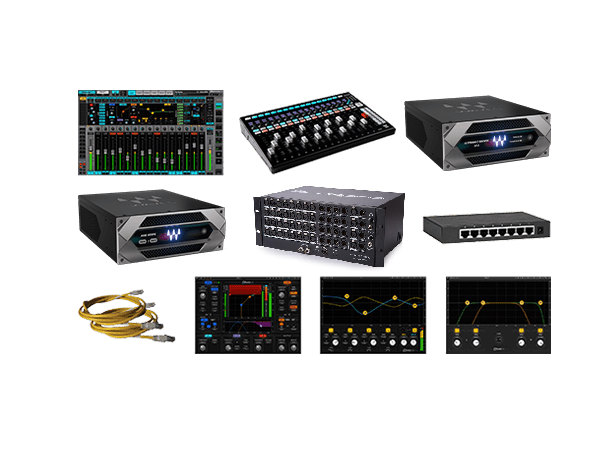

The ultimate package for world-class live sound: eMotion LV1 live software mixer, FIT controller, two 32-preamp SoundGrid Stageboxes (64 preamps in total), SoundGrid Extreme Server-C, Axis One Waves-optimized computer, 2U Rack Mount Shelf, 8-port switch, and compatible network cables.

Experience an unparalleled workflow and deliver class-A sound quality using the eMotion LV1 live mixer. LV1’s channel strips feature a plugin rack that can host up to eight SoundGrid-compatible plugins for real-time processing. LV1 is also pre-loaded with plugins specifically designed for live sound: eMo F2 Filter, eMo D5 Dynamics plugin, and eMo Q4 Equalizer.

For tactile hands-on control of the eMotion LV1 software mixer, this package includes the Waves FIT controller, designed specifically for the LV1. FIT includes 16+1 motorized faders, common controls such as Mute, Solo, Select, and a multi-function rotary control, a Tap Tempo pad, a Touch & Turn knob for controlling any eMotion LV1 parameter, and much more.

The one included DSPRO StageGrid 4000 is road-ready, SoundGrid-compatible stageboxes provides 32 mic/line inputs with high-end preamps. All preamps can be remote-controlled directly from the LV1 mixer channels.

All plugin processing is done on the included SoundGrid Extreme Server-C. You can send the processed audio out to the PA system and back to the stage via the 16 line outputs. All this takes place at lightning speed: Only 0.8 ms at 44.1–96 kHz.

To maximize the performance of your LV1 system, this combo includes the Axis One Waves-optimized computer, which is built from the ground up to perform consistently and reliably in the most challenging live sound situations. It features an Intel i5 8500 processor, 16 GB of DDR4 RAM, 2 HDMI ports, 1 display port, 8 USB2/3 ports and a USB-C port, all housed in a rugged 2U half-rack case. With maximum stability and rock-solid performance, Axis One is optimized to run eMotion LV1 and other Waves software with power to spare.

Together with an 8-port SoundGrid switch and CAT6 Ethernet cables, and a 2U rack mount shelf, this comprehensive combo includes everything you need to build a SoundGrid-powered live mixing system.

• Everything you need to set up a SoundGrid-powered live show
• eMotion LV1 64-channel (mono/stereo) mixer with Waves eMo plugins
• Waves FIT controller designed for tactile control of eMotion LV1
• 1 DSPRO StageGrid 4000 (64-in/32-out)
• SoundGrid Extreme Server-C
• Axis One Waves-optimized computer
• 8-port network switch and CAT6 Ethernet cables
• 2U rack mount shelf
