Waves Live Extreme-C SoundGrid Server

Extreme-C is a very powerful compact, lightweight and durable DSP unit, custom-designed and optimized to relieve your computer of plugin processing. Run hundreds of Waves plugins in real time, live or in the studio — using only half the width of a standard rack.

Whether you're mixing a live show or tracking overdubs in the studio, real-time plugin processing is a must. The Extreme-C server gives you exactly that and does it at lightning-fast speeds: latency as low as 0.8 ms at 44.1, 48, 88.2 and 96 kHz.

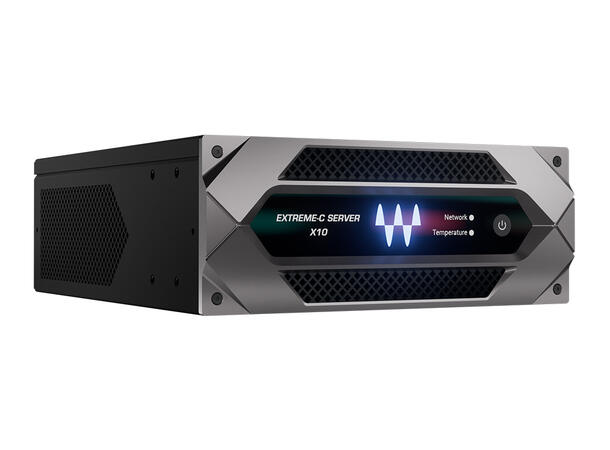

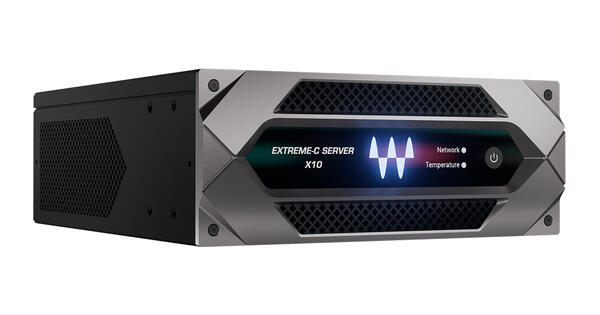

The latest generation of Waves’s SoundGrid servers boasts a new sleek industrial design built for elegance and durability. Extreme-C now features LED indicators for easy network and temperature monitoring, plus sturdy RAM positioning that secures your mixing experience wherever you are.

Extreme-C is fitted into a rugged all-metal 2U casing which is only half the width of a standard 19-inch rack. You can rack-mount a single server using rack ears, or mount two servers side-by-side using a rack shelf.

Small enough so you can easily take it with you to any production or session, the Extreme-C server allows you to mix plugin-rich sessions anywhere you go.

Adds more processing power to your system
Ultra-low latency: as low as 0.8 milliseconds at 44.1, 48, 88.2 and 96 kHz
Quiet fan design: fan speed auto-adjusts based on CPU temperature
NEW: Powerful Intel® 10th Generation i7-10700
NEW: Sleek new industrial design
NEW: Enhanced with sturdy RAM positioning for added reliability

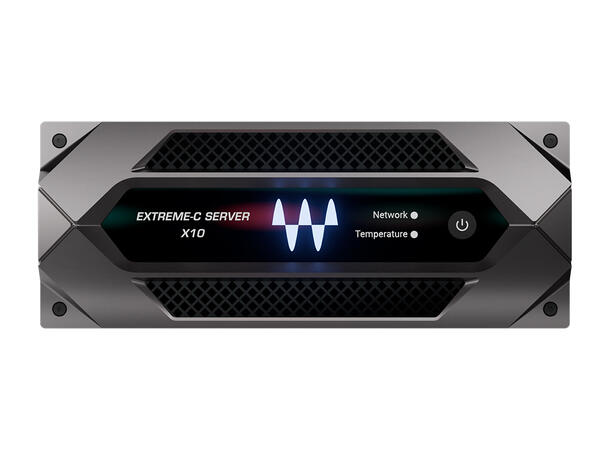

NEW: LED indicators for easy network & temperature monitoring
Rugged Neutrik etherCon connector
8 GB RAM
Use with any SoundGrid interface (including DiGiGrid I/Os)
Use with non-SoundGrid I/Os (ASIO/Core Audio) via SoundGrid Connect

Computer
CPU: i7-10700
RAM: 8GB
Motherboard: Gigabyte GA-IMB410N
LAN Card: Intel I211

Overall Dimensions
Width: 22 cm / 8.7 inches
Height: 8.6 cm / 3.4 inches
Depth: 28.4 cm / 11.2 inches
Device Weight: 3.4 kg / 7.5 lbs
Package and Device Weight: 5.0 kg / 10.9 lbs

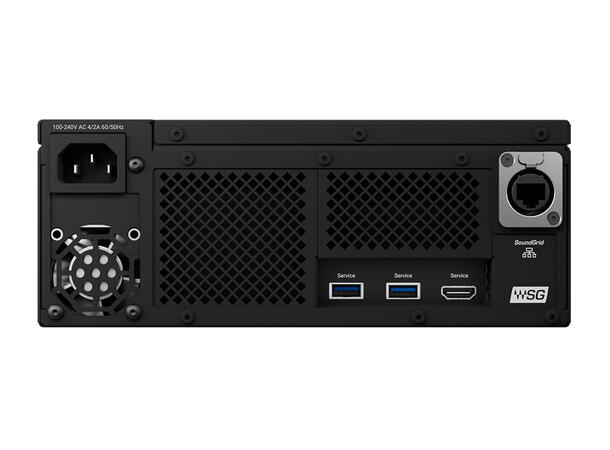

Connectivity
2 x USB 3.0 (Service only)
1 x HDMI (Service only)
1 x RJ45 (Ethercon)

Power Consumption (100~240VAC 50/60Hz): 65W

Sampling Rates: 44.1, 48, 88.2, 96 kHz

Environment:
Operating Environment temperature range: 50°?to 95°F / 10°?to 35°C
Max Environment temperature: 104°F / 40°C
