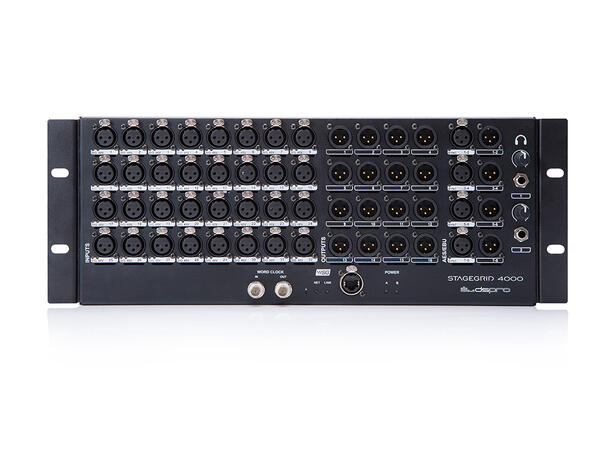

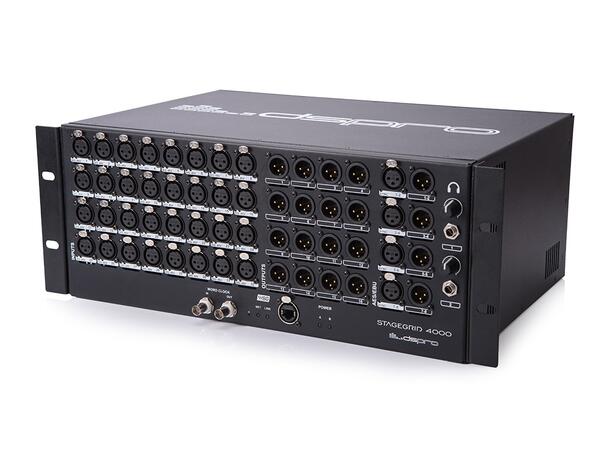

Waves Live DSPRO StageGrid 4000

SoundGrid stagebox, perfect for use with the eMotion LV1 live mixer.
Crafted for supreme sound quality and reliability, with 32 mic/line ins, 16 analog outs and AES/EBU ins/outs, all digitally controlled.

Featuring pristine preamps designed to deliver a dynamic sound with superb clarity, StageGrid 4000 is fully integrated into the Waves ecosystem and easily interfaces with the eMotion LV1 mixer and any other SoundGrid network component. It provides a seamless solution for live sound applications, coupled with the modularity and power of SoundGrid technology.

Built ruggedly in a robust 4U rack-mountable chassis, StageGrid 4000 is designed with the challenges of the road in mind, and with no compromise in audio quality. All of StageGrid 4000's components were carefully selected and tested to ensure continuous system stability and maximum dependability, including a redundant power supply. This way you can focus on what really matters – creating a consistent, impactful sonic experience, show after show.

Spesifikasjoner:
SoundGrid stagebox perfect for the eMotion LV1 mixer
32 Analog mic/line Inputs
16 Analog line outputs
4 Stereo AES / EBU Digital inputs
4 Stereo AES / EBU Digital outputs
Sample Rate: 44.1 kHz - 96 kHz
2 Headphone outs with individual volume controls
Word Clock input and output,
BNC connectors
SoundGrid Ethernet connection

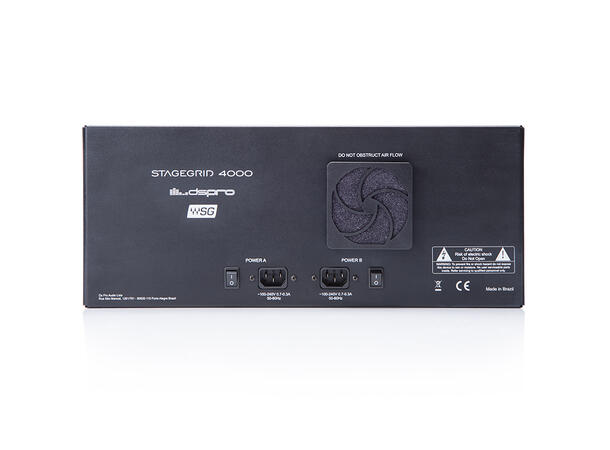

Redundant AC power supply

Dimensjoner
Height: 176 mm / 6.92 in (4RU)
Width: 430 mm / 19.92 in (for 19” rack)
Depth: 300 mm / 11.81 in (not including connectors)
Weight: 7.89 Kg

General

32 Analog mic/line Inputs
16 Analog line outputs
4 Stereo AES / EBU Digital inputs
4 Stereo AES / EBU Digital outputs
Configurable Sample Rate of 44.1, 48, 88.2 and 96kHz
Two headphone outputs
Wordclock IN\OUT
A SoundGrid Ethernet port
Redundant Power supply

Analog Inputs
Impedance: 2.86 kOhms
Gain range: -4 dB to 60 dB
Max input level: 28 dBu (-4 dB gain)
Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Equivalent input noise: -128 dBu (60 dB gain, A-weighted, 150 ohms)
Frequency response: +/- 0.1 dB (20 Hz to 40 kHz at 96 kHz sampling rate)
Phase Shift: <10° at 20 Khz

Analog Outputs
Output impedance: 50 ohms
Max output Level (0dBFS): 24 dBu
Dynamic range: 115 dB (-60 dBFS, 1 kHz, A-weighted)
THD: 0,002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted)
Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz)
Phase shift: <5° at 20 Khz
AES/EBU IN/OUT
Standard: AES3 (2009)
Sample rates: 44.1, 48, 88.2 and 96 kHz
Impedance: 110 ohms
HeadphonesOutput Power: 150 mW per channel on 16 ohms
Dynamic range: 100 dB
SoundGridInterface: Gigabit Ethernet
Connector: Neutrik EtherCON
Word ClockConnector: BNC
Impedance: 75 Ohms
Voltage level: 5V TTL
Power supplyVoltage: 110 or 240 VAC
Frequency: 50 Hz or 60 Hz Power: 60 W
