Gen 2 is Here
We’re excited to introduce the VANGUARD AUDIO LABS V4 gen2!
we have upgraded key components to audiophile-grade parts, including US-made low-noise resistors. These upgrades have netted us a lower signal-to-noise ratio (even though we already had a superb reputation for low noise mics), and vastly improved sound staging. We undertook a ground-up redesign of every mechanical component to improve the fit and finish of the final product, so not only are they world-class performers, but they look damn good while they’re doing it!
We designed V4 with certain characteristics of classic FET
microphones in mind, while also utilizing modern technology & design
to meet the demands of today’s recording professionals. Our ultra-thin
3µm edge-terminated capsule diaphragms are extraordinarily sensitive,
ensuring that every nuance and detail of the performance is faithfully
captured.
We heard from a number of Vanguard V44S users that they loved the
clean and full character of the V44S so much as an alternative to their
V13 and V1 microphones, they wanted a small “mono” version of the V44S
for travel purposes. The signal and power paths of the V4 is identical
to a single channel of the V44S, but because we had space for an extra

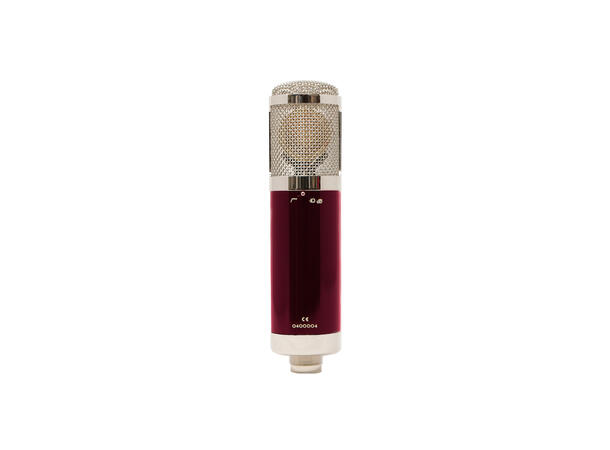

PCB and switch, we couldn’t resist adding a simple pad/rolloff combo
switch to the rear, as well as spacing the power conversion circuit as
far as possible from the signal path.
After hundreds of hours of listening with world-class engineers in
environments ranging from fully-equipped major studios to bootstrapped
home setups, we can confidently say that this microphone will vastly
exceed the performance of other microphones in its price range, and
rival the performance of microphones costing several times more.
Transducer Type: Condenser
Capsule Size: 1.34? / 34mm (dual-capsule)
3 selectable polar patterns – Cardioid, Figure-8, Omnidirectional
Diaphragm Size: 1.04? / 26.4mm
Capsule Diaphragms Thickness: 3µm
Electronics Type: Solid-state, electronically-balanced output
Output Impedance: 200O
Max SPL: appx. 135dB (145dB w/ Pad)
Frequency Response: 20Hz-20000Hz
Equivalent Noise Level: <=14dBA (A-weighted)
Sensitivity: TBA
Output Connector: Male XLR 3-pin, gold-plated
High-Pass/Rolloff Switch: 120Hz (either/or with pad)
Attenuation/Pad Switch: -10dB (either/or with rolloff)
Finish: Polished nickel trim / High-gloss Pinot Noir
Weight (microphone): 0.83 lbs / 0.38 kg

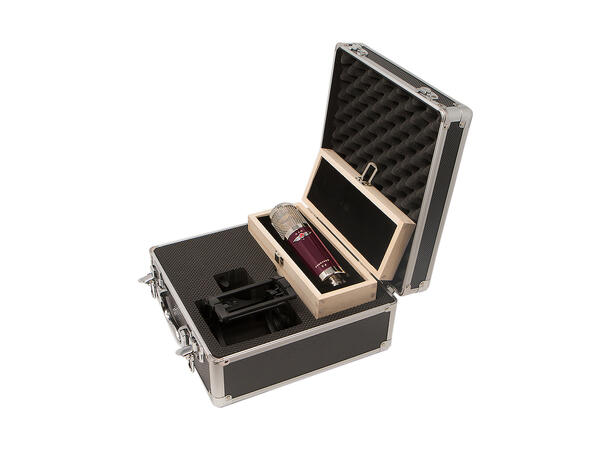

Weight (in case): 5.63 lbs / 2.56 kg
Dimensions (microphone): 7.25? long, 1.8? diameter / 184mm long, 46mm diameter
Dimensions (case): 12?L x 11?W x 5.75?H / 305mmL x 280mmW x 146mmH
Voltage Requirement: Phantom Power (+48V ideal)
