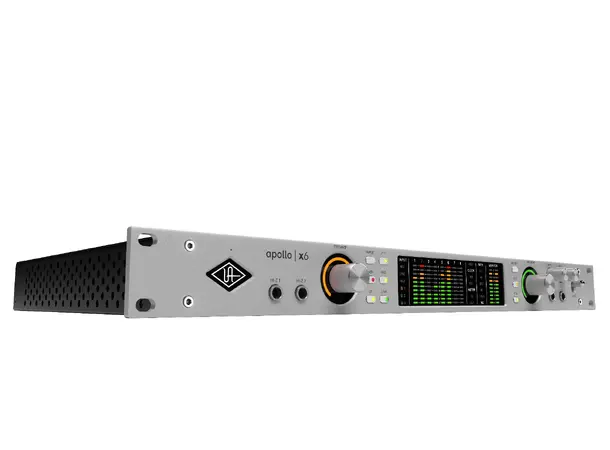

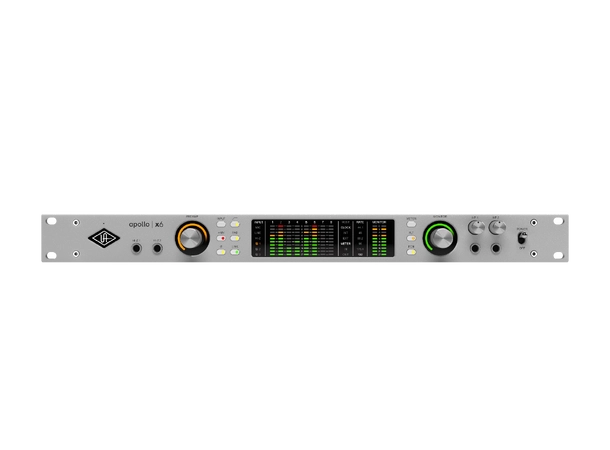

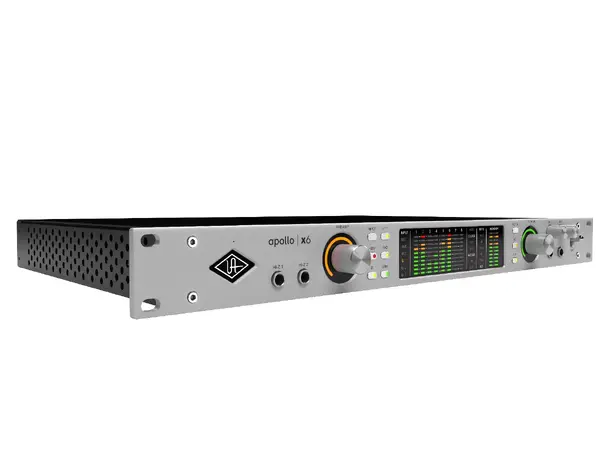

Universal Audio Apollo x6 Gen 2 STUDIO

Midtpunktet i din neste musikkproduksjon.

Produser hits med vår mest avanserte Apollo x6 til dags dato. Med høyoppløselig lydkonvertering, to Unison™ mikrofonforforsterkere og sanntids UAD-behandling – som lar deg ta opp gjennom plug-ins fra Neve, API, Manley, Auto-Tune og mer uten ventetid – Apollo x6 gir tiår med inspirerende analog lyd rett i racket ditt.

• 16 x 22 Thunderbolt 3 lydgrensesnitt med HEXA Core DSP plug-in prosessering

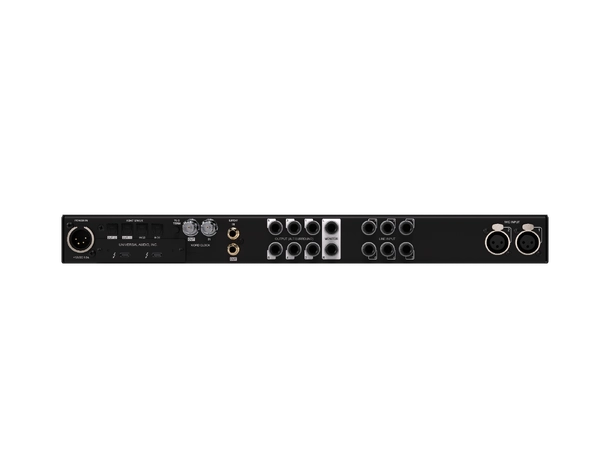

• To Unison™ mikrofonforforsterkere, to Hi-Z instrumentinnganger, seks 1/4" linjeinnganger, to optiske Toslink I/O (ADAT S/MUX), RCA koaksial I/O (S/PDIF), ordklokke I/O (BNC)
• To 1/4" monitorutganger, seks 1/4" linjeutganger (ALT / 5.1 surround), to 1/4" TRS hodetelefonutganger
• Eliteklasse Apollo X Gen 2 konvertere med 24-bit / 192 kHz oppløsning
• Forbedret D/A for kritisk overvåking og avspilling med 130 dB dynamisk område og forbløffende lav THD på -127 dB
• Kalibrer hovedmonitorene og hodetelefonutgangene dine med Apollo Monitor Correction drevet av Sonarworks®
• Fullt utstyrt monitorkontroller med alternativ høyttalerbytte og integrert talkback for enkel kommunikasjon med artisten
• Oppdatert UAD Console-app med Auto-Gain, Plug-In Scenes, subwoofer-integrasjon med Bass Management, støtte for immersive lyd og mer
• Onboard DSP støtter over 200 UAD plug-ins via VST, AU og AAX 64-formater i alle større DAW-er
• Inkluderer opptil 50+ UAD-plugin-moduler med Essentials+ eller Studio+ Editions
• Kompatibel med LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live og mer*
• Kan utvides med Thunderbolt Apollo-lydkort eller utvalgte modeller over Dante
• Gratis bransjeledende teknisk støtte fra kunnskapsrike lydteknikere

SPECS:

I/O Complement

Simultaneous Channel I/O Count (analog + digital) 16 x 22
Microphone Inputs Two
High Impedance (Hi-Z) Instrument Inputs Two
Analog Line Inputs Six
Analog Line Outputs (DC coupled) Six (eight including Monitor outputs
Analog Monitor Outputs (DC coupled) Two (one stereo pair)
Headphone Output Two stereo
Digital Audio Port (ADAT or S/PDIF, selectable) ADAT: Two inputs, two outputs
S/PDIF: One input, one output
Thunderbolt 3 Port* Two
*(Mac only) Thunderbolt 1 and 2 connections supported via Apple Thunderbolt 3 to Thunderbolt 2 adapter

A/D – D/A Conversion

Simultaneous A/D conversion Six channels
Simultaneous D/A conversion Twelve channels
Available Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample 24
Analog Round-Trip Latency 1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency through four UAD legacy plug-ins (included) via UAD Console software 1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)

ANALOG I/O

Microphone Inputs 1 & 2
Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 123 dB (A–weighted)
THD + Noise (1 kHz @ 24 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level (PAD on) 25 dBu
Default Input Impedance
(variable via Unison plug-ins) 5.4 K O
Gain Range +10 dB to +65 dB
Pad Attenuation
(switchable per mic input) 20 dB (variable via Unison plug-ins)
Phantom Power
(switchable per mic input) +48V
Connector Type XLR female, pin 2 positive (combo XLR/TRS)

Hi-Z Input (600 K O input termination)

Frequency Response 20 Hz – 20 kHz, ±0.05 dB
Dynamic Range 121 dB (A–weighted)
THD + Noise
(1 kHz @ 11.4 dBu, -1 dBFS) -110 dB (0.00032%)
Maximum Input Level
(at minimum gain) 12.4 dBu
Default Input Impedance
(variable via Unison plug-ins) 1 M O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TS Unbalanced

Line Inputs 1 - 6

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 122 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -115 dB (0.00018%)
Maximum Input Level
(reference level @ +4 dBu) 20.2 dBu
Input Impedance 10 K O
Gain Range +10 dB to +65 dB
Connector Type ¼" Female TRS Balanced

Line Outputs 1 - 6

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 127 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -119 dB (0.00011%)
Maximum Output Level
Reference level @ +4 dBu
Reference level @ -10 dBV
20.2 dBu
14.5 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Monitor Outputs L & R

Frequency Response 20 Hz – 20 kHz, ±0.04 dB
Dynamic Range 129 dB (A–weighted)
THD + Noise
(1 kHz @ 19.2 dBu, -1 dBFS) -120 dB (0.0001%)
Maximum Output Level 20.2 dBu
Output Impedance 100 O
Connector Type ¼" Female TRS Balanced

Stereo Headphone Outputs 1 & 2

Frequency Response 20 Hz – 20 kHz, ±0.01 dB
Dynamic Range 124 dB (A–weighted)
THD + Noise
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
-112 dB (0.00025%)
-114 dB (0.00019%)
Maximum Output Level
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
15.4 dBu
15.8 dBu
Maximum Output Power (RMS)
300 O load (1 kHz @ 14.4 dBu, -1 dBFS)
600 O load (1 kHz @ 14.8 dBu, -1 dBFS)
69 mW
38 mW
Connector Type ¼" Female TRS Stereo

DIGITAL I/O

Digital Audio Ports ADAT: Two inputs, two outputs
S/PDIF: One input, one output
S/PDIF
S/PDIF Channels One stereo input, one stereo output
Connector Type Female Phono (RCA)
Format IEC 958
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96

ADAT

ADAT Channels Up to eight input & eight output channels
Format ADAT Lightpipe with S/MUX
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Channel Assignments @ 44.1 kHz, 48 kHz Channels 1 – 8
Channel Assignments @ 88.2 kHz, 96 kHz Channels 1 – 4
Channel Assignments @ 176.4 kHz, 192 kHz Channels 1 – 2

WordClock

Connector Type BNC
Lock Range ±4% of any supported sample rate
Word Clock Input Termination 75 O, switchable
Clock Synchronization Sources
Internal, ADAT, S/PDIF Conditional per selected digital input type
ELECTRICAL
Power Supply External AC-to-DC Power Supply, Level VI compliant
AC Input Connector IEC male
AC Requirements 100V – 240V AC, 47 – 63 Hz, 1.6 A max
DC Connector Type XLR 4-pin locking male (Neutrik P/N NC4MDM3-H)
DC Requirements 12 VDC, 6 A
Maximum Power Consumption 72 Watts (30 W typical)

ENVIRONMENTAL

Ambient Temperature Range 32º to 104º F (0º to 40º C)

MECHANICAL

Dimensions

Width 19" (482.6 mm)
Height 1.74" (44.2 mm)
Depth, Chassis Only 12" (305 mm)
Depth, Including Knob & Jack Protrusions 13.5" (343.1 mm)

Shipping Box

(Length x Width x Height) 23.62" x 16.73" x 7.68" (600 mm x 425 mm x 195 mm)
Weight

Shipping Weight

(with box & accessories) 16.89 lbs (7.66 kg)
Weight (bare unit) 8.7 lbs (3.95 kg)

Package Contents

Apollo x6 Gen 2 Audio Interface

External Power Supply

AC Power Cable (IEC) Region Specific (USA, EU, UK, ANZ, or Japan)
Set of (4) Rack-Mount Screws
