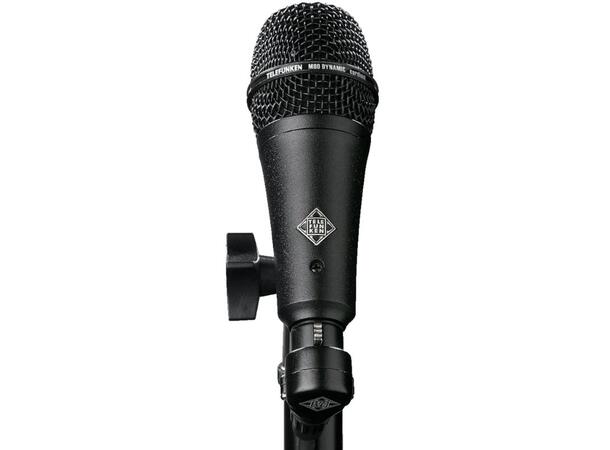

M80-SHB

TELEFUNKEN Elektroakustik has created the M80-SHB for use on snare drum and vocal applications where a lower profile microphone with right angle XLR cable is needed.

The wide frequency response and higher SPL capabilities offer the user a superior alternative to the midrange-laden character of the "industry standard dynamic microphone.”

A tight cardioid polar pattern and a frequency response boasting a subtle rise in the high end result in a microphone that is equally suitable for snare drum, vocals or instruments on both the stage and the studio.

The M80-SH is offered with either chrome or black head grills and ships with a leather microphone bag and 5 meter SGMC-5R XLR cable with right angle female XLR.

Technical Specifications

• Type: Dynamic
• Polar Pattern: Supercardioid
• Frequency Range: 50 Hz - 18 kHz, ±3 dB
• Capsule: 25mm Dynamic Moving Coil
• Transformer: TELEFUNKEN Elektroakustik T80
• Sensitivity: 1.54 mV/Pa, ±1 dB
• Output Impedance: 325 O
• Maximum SPL (for 1% THD): 135 dB
• Dimensions: 125 mm L x 48 mm Dia
• Weight: 340 g
• Included Accessories: Right Angle XLR Cable, Plastic Mount, Metal Mount, Zip Pouch
