Magnetismus 2 - Transient Shaper

The Magnetimus 2 was developed for the processing of drums and other transient rich signals such as acoustic guitars. It combines a modern flexible VCA compressor with a downstream Transient Shaper. The result is a fat sound, which is similar to a tape recording, but integrates better into the mix due to the highly developed analog circuitry.

Magnetismus 2 can also be used as a creative sound design tool when a ‘targeted destruction’ is desired for your audio signals.

Because the compressor can be used separately the Magnetismus 2 is also well suited to mix individual signals or to be used as a bus compressor.

Features:

Stereo Unit

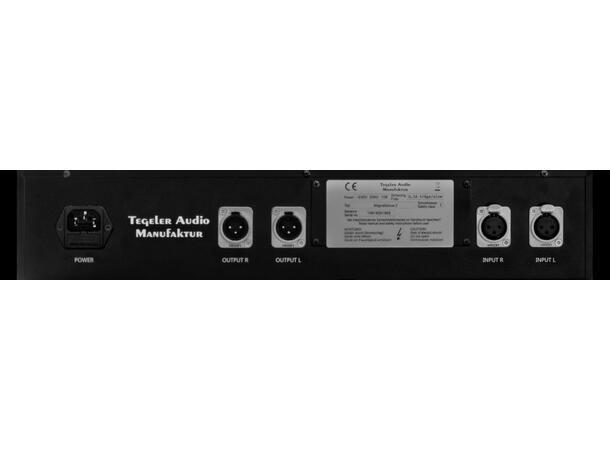

Input: Balanced XLR
Output: Transformer Balanced XLR
VCA Compressor
Adjustable threshold and ratio
Wide range of adjustable timing
LED gain reduction meter
Adjustable level and intensity of transient processing
Illuminated VU meter for working point control
Adjustable output level
Stepped Potentiometers
Bypass Switch
Internal power supply
Height: 88,1mm (2HE), width: 483mm, depth: 250mm

Specifications:

Frequency Response: 20Hz - 22kHz
Maximum Input Level: +20 dBu
Input Impedance: = 2.4kO
Output Impedance: < 600 O
Maximum Output Level: +24 dBu
Dynamic Range: = 95 dB
Voltage: 110- 240 V~/50-60 Hz
Fuse: 500mA slow-blow
Maximum Power Consumption: < 25 W
Dimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm
