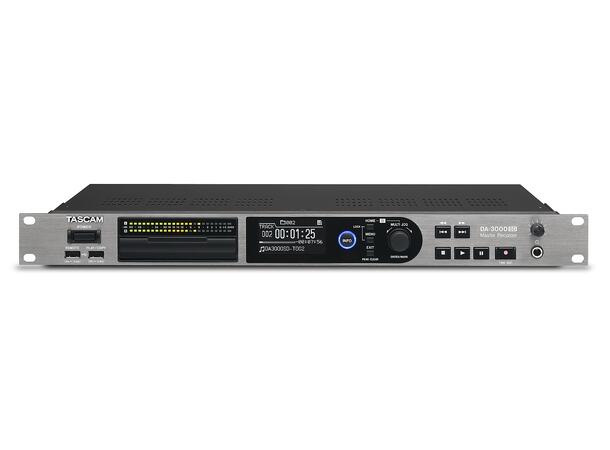

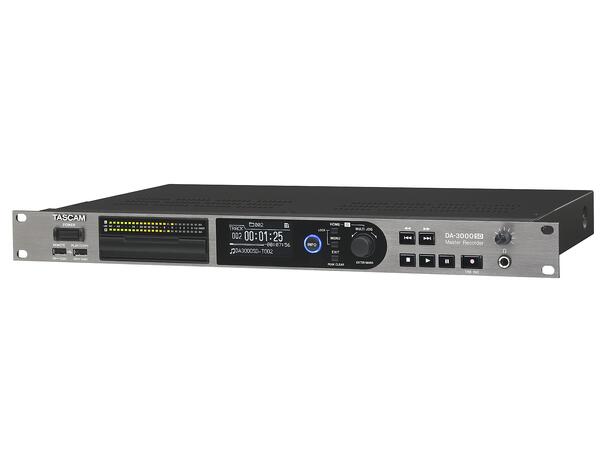

Tascam DA-3000SD

DA-3000SD combines a top-of-the-range, reference-grade master recorder and AD converter for musically correct recording at high sample rates. Using only the highest quality components, the DA-3000SD continues to set the industry standard for professional master recording and AD/DA conversion.

Professional Stereo Master Recorder with Superior AD/DA Converters
Following in the footsteps of its highly acclaimed predecessors, the DA-3000SD is an indispensable master recorder and professional monitoring device in a single rack-mountable unit.

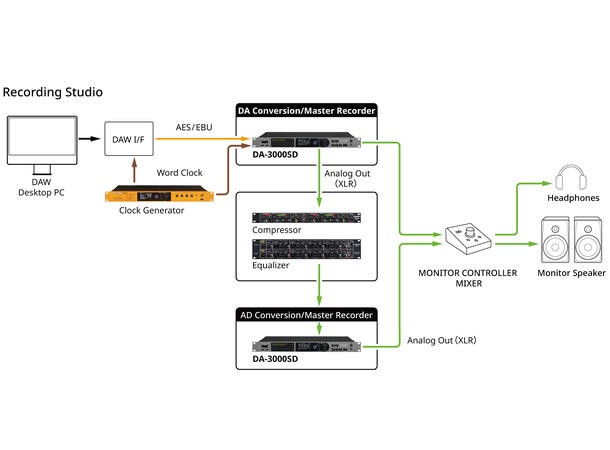

Bouncing a recording in a DAW alone cannot capture the quality offered by the DA-3000SD as a master recorder. When used as an AD/DA converter in a DAW production environment, it provides unparalleled, noise-free monitoring, enhancing the clarity and depth of the audio.

Features at a glance
PCM recording at up to 192 kHz, DSD recording at up to 5.6 MHz

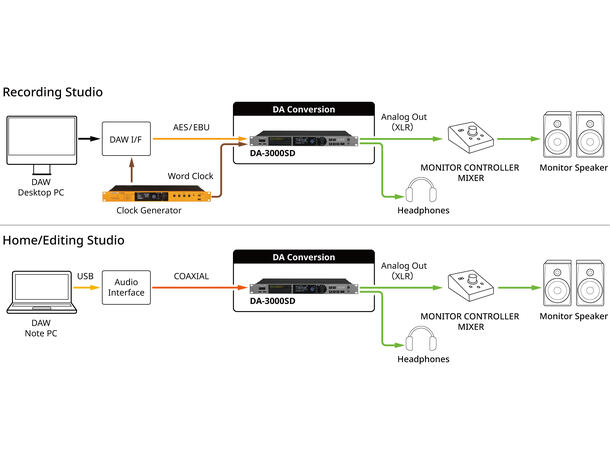

Can also be used as a phase-coherent pure standalone AD/DA converter (direct mode)

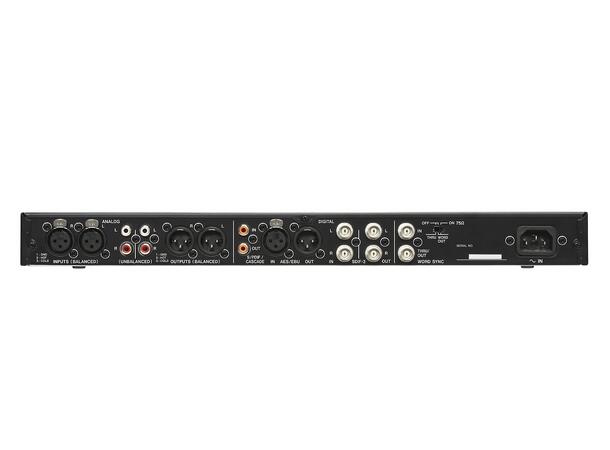

Wide range of inputs and outputs:
Analogue: XLR and RCA
PCM: SPDIF and AES/EBU
DSD: SDIF-3 and DSD-raw
High-precision TCXO (less than 1 ppm) for sample-accurate clock synchronisation
Zero-noise design: no cooling fans or other mechanical noise sources
Two premium galvanically isolated BurrBrown PCM1795 converters for minimum interference between channels
Separate transformer coils for digital and analogue circuits to ensure extremely clean supply voltages
Two units can be cascaded to record two mono files

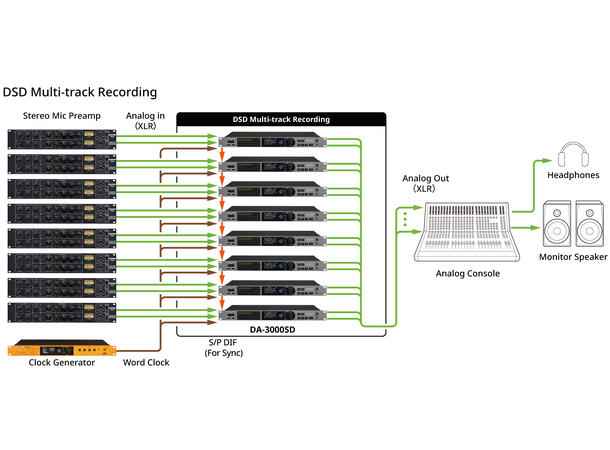

Up to eight units can be cascaded to create a 16-track DSD recording environment

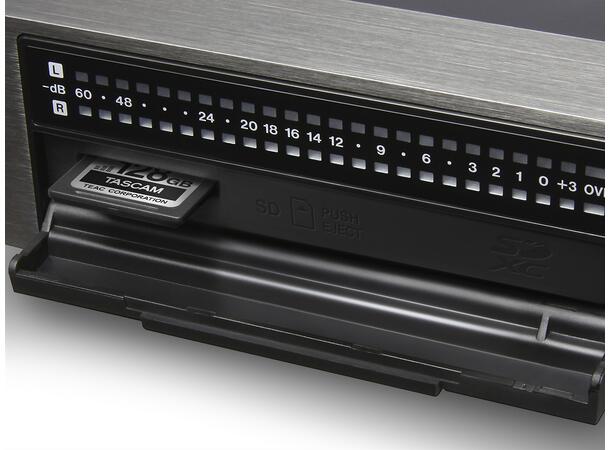

Uses SD/SDHC/SDXC storage media up to 512 Gigabytes
USB media can be used to play or copy files
Automatic file closing function to prevent the loss of already recorded data
Marks can be set
Front panel can be locked to prevent unintentional or unauthorised access
Oscillator for testing and level calibration
Adjustable output level
Remote control and text input with computer keyboard or keypad via USB port
Wireless remote control possible using optional Tascam RC-10
Easy-to-read LED level meters (24 dots)

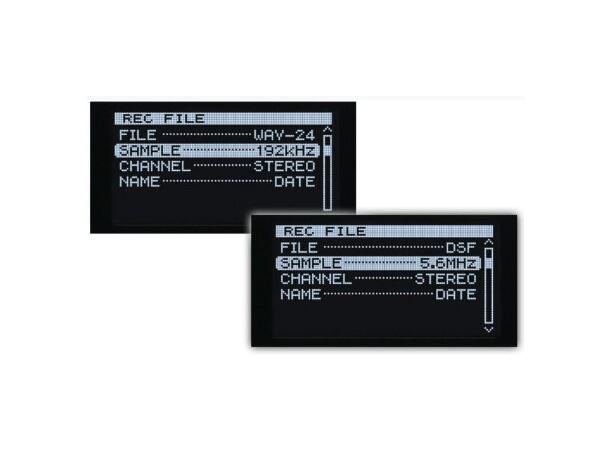

OLED display (128 x 64 dots) provides wide viewing angle and high visibility
1U compact size
