Tascam RC-W100

The RC-W100 is a wall-mountable programmable remote control for the Tascam MX-8A Matrix Mixer or other compatible products. Four switch buttons and one encoder with push-button function allow users to select between four or eight audio sources, adjust volume levels and mute sound in a permanently installed audio system. The easy-to-read, illuminated display provides information about the selected audio source and the current volume setting.

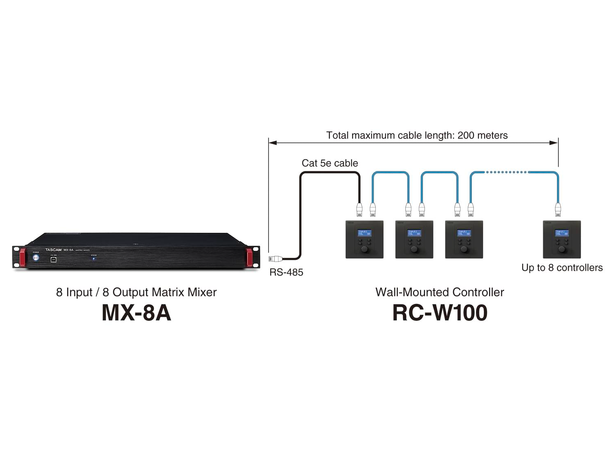

Up to eight controllers can be used with one mixer by daisy-chaining the units via an RS-485 connection with a cable length of up to 200 meters. End-users can be prevented from making mistakes by assigning only necessary functions to the encoder and switches using Tascam MX Connect.

The RC-W100 extends the comfort of any sound reinforcement system where the MX-8A matrix mixer is at the centre.

Specs:

• Wall-mounted programmable controller for MX-8A and other compatible Tascam products
• Encoder (with push switch) and four switches for adjusting volume, muting and switching audio sources
• Functions can be assigned to the encoder and the switches using Tascam MX Connect
• Prevents end-users from making mistakes by assigning only necessary functions to the controller
• Two source switching modes available:
  -1: Sources can be selected directly by pushing switches (up to four sources can be assigned)
  -2: Sources can be selected from a screen (up to eight sources can be assigned)
• Easy-to-read display
• Name of the selected source and current volume can be checked
• Backlight turns off automatically
• Daisy chaining of up to eight units is possible using Cat 5e cables (or better, maximum length 200 m)
• Power can be supplied to the unit from the mixer via the RS-485 connection, reducing power construction and installation costs
• Two different product variants available:
  -RC-W100-R120 is compatible with switch boxes commonly used mainly in the USA and Japan

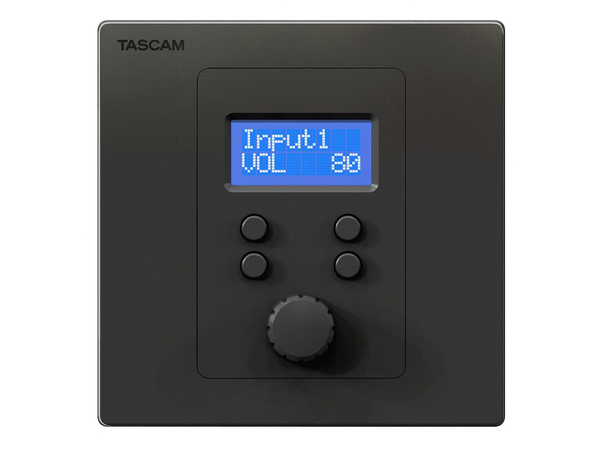

  -RC-W100-R86 is compatible with switch boxes commonly used mainly in Europe
• Connectors: Two RJ-45 (RS-485) connectors
• Power consumption: 0.24 W
• Overall dimensions (W × H × D):
  -RC-W100-R120: 70 mm × 114 mm × 54 mm
  -RC-W100-R86: 87 mm × 87 mm × 54 mm
• Weight: 140 g
• Permissible operating temperature range: 0–40 °C
