32-channel analog line input/output
Equipped with Dante interfaces
Dante primary and secondary connectors support redundancy
Compatible with SMPTE ST 2110-30
AES67 is also supported. Possible to connect with AES67-compatible network audios including Ravenna
Dante Controller enables flexible routing
Supports up to 96kHz/24bit

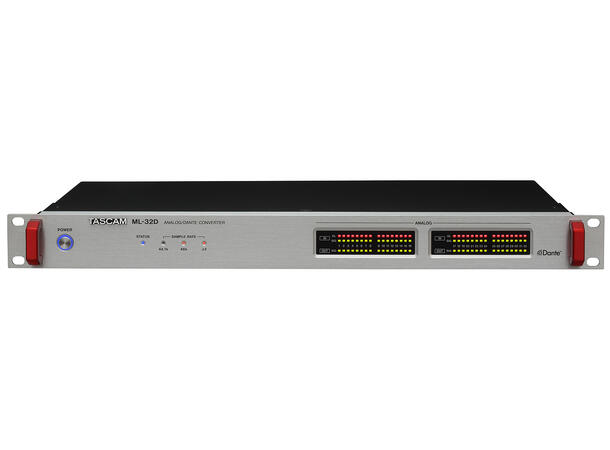

Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
5 selectable reference levels which can accommodate to a variety of scenes including professional usages, public addresses, and usages in broadcasting studios
Equipped with a STATUS indicator for indicating failures and errors of the device
Firmware update via a Dante interface is possible

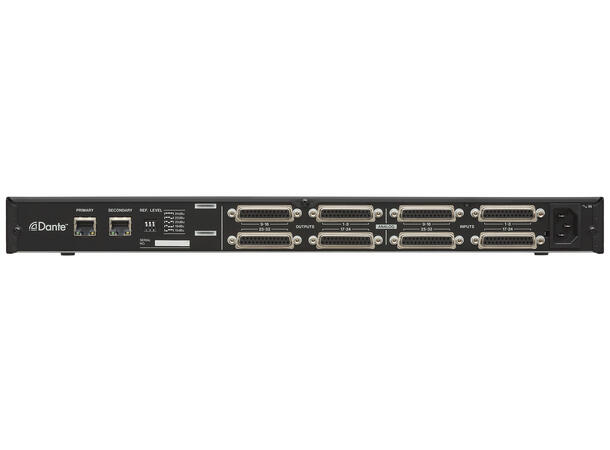

Equipped with D-sub 25-pin connectors as line input/output connectors
1U rack mount size
Using an optional BO-32DE (D-sub/Euro Block breakout box) enables supporting Euro Block connectors which are optimal for professional usages
Using an optional BO-16DX/IN and BO-16DX/OUT (D-sub/XLR breakout box) enables supporting XLR connectors which have multiple usages including usage as a stage box.
