Tascam LM-8ST

The LM-8ST is a compact line mixer for installation, studio submixing, keyboardists or anyone who needs a mix of line signal sources. Eight stereo input sources like CD/MP3 players, tuners, instruments etc. can be routed independently to a pair of stereo outputs. For the second output the user can choose between pre and post-fader routing. Input and output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance. Master bus inputs and outputs are available for cascading multiple units.

The LM-8ST is housed in a rugged rack-mountable chassis and has a built-in power supply (no AC adapter) for many years of safe and reliable operation.

Main Features

• Line mixer with flexible signal routing
• Ideal solution for installations in boardrooms, conference rooms, health/fitness clubs, restaurants, houses of worship, as a keyboard or stage sub mixer and more
• 8 stereo input channels for line sources like CD/MP3 players, tuners, TV or VCR audio signals etc. (balanced TRS)

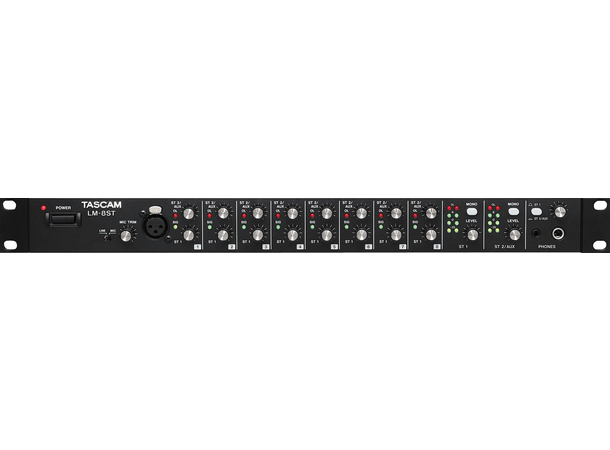

• Additional mic/line input with level control for channel 1 on front panel for announcements etc. (balanced XLR)
• 2 stereo outputs (ST1 and ST2/AUX, balanced XLR / unbalanced RCA)
• Each stereo input can be mixed to each stereo output independently:
• ST1: Input signal is sent to ST1 output
• ST2: Signal before the ST1 level control (pre fader) is sent to ST2/AUX output
• AUX: Signal behind the ST1 level control (post fader) is sent to ST2/AUX output
• Switches for ST2/AUX selection per channel on bottom panel
• Input level selectable between +4 dBu and –10 dBV per channel (on rear panel)
• Signal presence and overload LEDs on each channel
• 4-dot LED stereo level meters on each output
• Each stereo output switchable to mono
• High-power headphones output with level control and selectable source (ST1, ST2/AUX)
• Balanced master bus output and input (input selectable between ST1, ST2/AUX and Mix) for cascading of multiple units

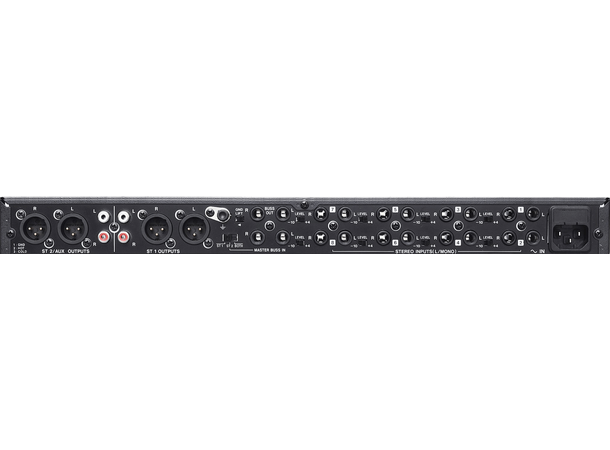

• Ground terminal and ground lift switch on rear panel
• Easy replaceable fuse
• 1U rack-mountable chassis

Spec:

• Audio inputs and outputs  Mic input   XLR (balanced)
•   Input impedance   2.4 k?
•   Nominal input level   –58 dBu (1 mV) to –12 dBu (195 mV)
•   Maximum input level   +10 dBu (2.45 V)
• Stereo inputs   6.3-mm TRS (balanced)
•   Input impedance   56 k?
•   Nominal input level   +4 dBu (1.23 V)
•   Maximum input level   +24 dBu (12.3 V)
• Master bus input   6.3-mm TRS (balanced)
•   Input impedance   56 k?
•   Nominal input level   +4 dBu (1.23 V)
•   Maximum input level   +24 dBu (12.3 V)
• ST1, ST2/AUX outputs   XLR (balanced)
•   Output impedance   94 ?
•   Nominal output level   +4 dBu (1.23 V)
•   Maximum output level   +24 dBu (12.3 V)
• ST1, ST2/AUX outputs   RCA (unbalanced)
•   Output impedance   200 ?
•   Nominal output level   –10 dBV (0.3V)
•   Maximum output level   +10 dBV (3.16 V)
• Bus output   6.3-mm TRS (balanced)
•   Output impedance   94 ?
•   Nominal output level   +4 dBu (1.23 V)
•   Maximum output level   +24 dBu (12.3 V)
• Headphones output   6.3-mm TRS (stereo), 3.5-mm TRS (stereo)
•   Maximum output power   250 mW + 250 mW (at 32 ?)
• Audio performance
• Frequency response   20 Hz–50 kHz, ±3 dB (PHONES outputs)
• 10 Hz–100 kHz, ±3 dB (BUSS output)
• S/N ratio   =80 dB(A) (PHONES outputs, 20 kHz LPF)
• =80 dB(A) (BUSS output, 20 kHz LPF)
• THD   =0.07% (PHONES outputs, when outputting 100 mW + 100 mW (32 ?), 20Hz HPF and 20 kHz LPF) =0.03% (BUSS output, 20 Hz HPF and 20 kHz LPF)
• Channel separation   =50 dB(A) (PHONES outputs, 20 kHz LPF, 1 kHz nominal input and output, 32 ? termination)=70 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 ? termination)
• Crosstalk   =65 dB(A) (BUSS outputs, 20 kHz LPF, 1 kHz nominal input and output, 600 ? termination)
