HUSK å bestille bunnplate:
- A-XLR (XLR hardwired back plate for A10/20-RX)
- A-TA3 (Standalone back plate for A10/20-RX)
- A-SL (25pin Superslot back plate for A10/20-RX)

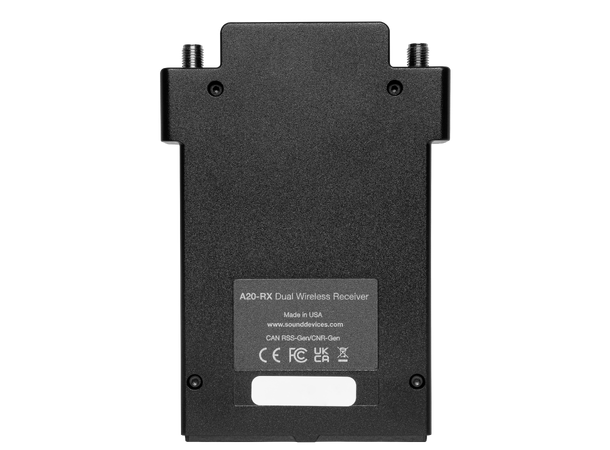

Experience ultimate flexibility as you find open spectrum away
from the crowded UHF TV band. The A20-RX two channel true diversity receiver
features industry-exclusive SpectraBand technology, which delivers a tuning
range of 470 – 1525 MHz in a single unit. Superior low-loss, brick-wall SAW
filters deliver excellent performance in noisy RF environments, while the
AutoAssign feature makes frequency selection and setting quick and easy.
•
SpectraBand Technology: compatible
with the A20-Mini from 470 MHz – 1525 MHz and all tuning ranges of the
A10-TX.
•
Advanced Digital True Diversity
topology uses two complete RF receivers for each of the two channels, with four
RF receivers in total.
•
SuperSlot compatible with the SL-2
and 8-Series mixer-recorders.
•
State-of-the-art 100% digital
long-range modulation delivers the longest transmission distance of any digital
system on the market.¹
•
GainForward Architecture compatible
with the A20-Mini. Set the Mini’s gain levels via trim control (with an
8-Series) or at the A20-RX (for other mixers).
•
Full 10 Hz – 20 kHz audio
bandwidth; 100% digital RF modulation and transmission.
•
Excellent immunity from nearby IFB
or camera hop transmitters without the need for external filters or extra
cabling.
•

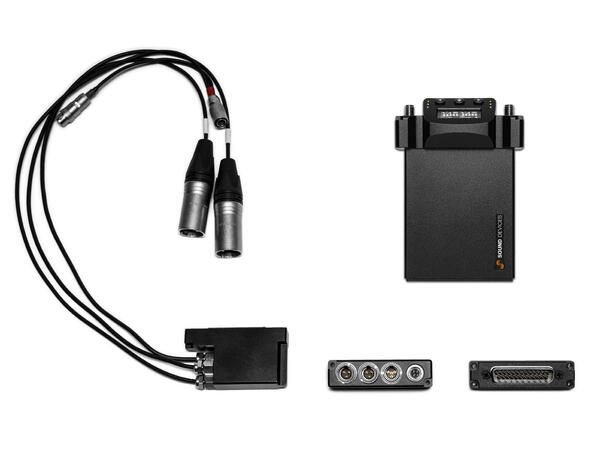

Maximum connectivity: SuperSlot,
XLR, and TA3 backplates, A-RXMON headphone amp, and A-15PIN two-channel AES
Sony camera slot adapter.
•
Analog line-level or AES digital
audio output.
