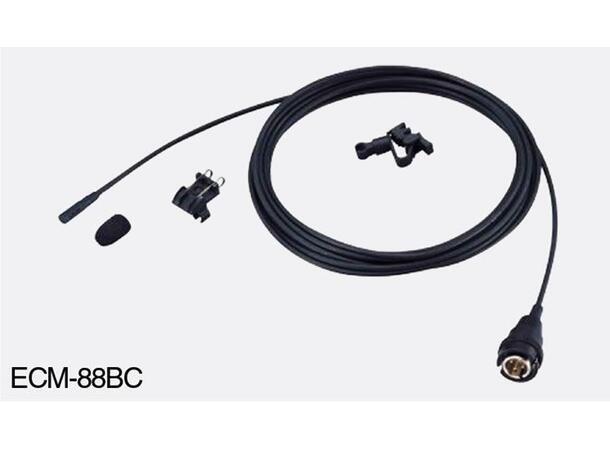

The Sony ECM 88BC is a miniature condenser, lavalier microphone with a 4-pin Hirose connection. The 4-pin connector enables use with Sony WRT-822B and WRT-8B bodypack transmitters. The capsule is 3.5 x 3.5 x 16.8mm, allowing natural-looking concealment on stage or camera. The electret condenser element uses a dual-diaphragm mechanism, resulting in high sensitivity.
The microphone provides a flat, wide frequency response (20Hz to 20kHz) resulting in a natural sound reproduction, capturing in great detail. The water resistant design assures durability from the elements as well as moisture caused by sweat in stage applications.
Specifications
Capsule Type Electret Condenser
Frequency Response 20 Hz to 20 kHz
Directivity Omni-directional
Sensitivity *[1] -52 dB +/- 2 dB (when used with DC-78), (-39.0 dB 11.2 mV for BC)
Output Impedance *[2] 30O±30%, Unbalanced
100O±20%, Balanced (when used with DC-78)
Dynamic Range 99 dB or more
Signal-to-Noise Ratio *[3] 68 dB or more
Inherent Noise *[4] 26 dB SPL or less
Induction Noise From External Magnetic Field *[5] 5 dB SPL or less
Wind Noise *[6] 45 dB SPL or less (with supplied windscreen)
Maximum Input Sound Pressure Level *[7] 125 dB SPL
