Sonosax SX-R4+ 16 tracks opptaker med dual SD kortsystem
Inputs / Outputs

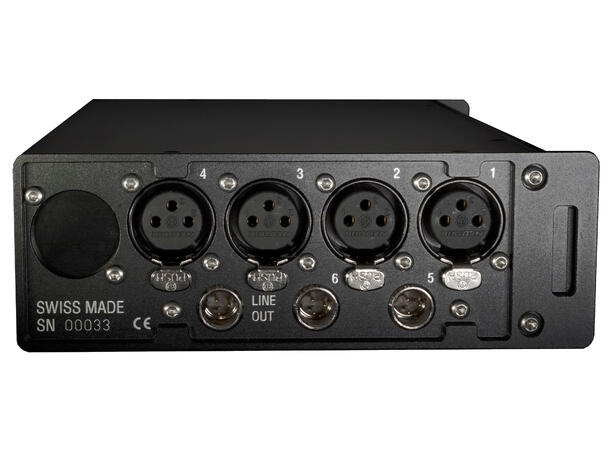

- 4x XLR-3F inputs, individually configurable as:
- ANALOG: mic/line levels, electronally balanced, with
phase reversal, 48V phantom, LF cut and level control on the front panel
- DIGITAL: transformer balanced AES3 or AES42 with
ASRC, phase reversal, LF cut and level control on the front panel
- 2x Line inputs, electronically balanced on TA-3 with level control on the front panel
- 4x AES3 balanced inputs on multi-pin connector
- 1x AES3 balanced input with ASRC on TA-3 connnector (shared with AES3 output)
- 2x analog unbalanced line outputs on TA-3
- 1x AES3 balanced output (user independant sampling frequency) on TA-3 connnector (shared with AES3 input)
- Up to 12x Mic inputs when connected to the SONOSAX AD8+

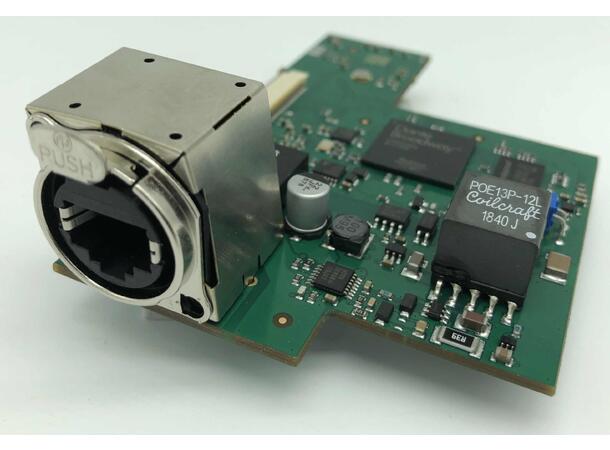

- Optional audio over IP on RJ45 connector, such as AVB, Dante & Ravenna
Performance
- 135 dB (A-weighted) overall dynamic range from analog input
to recorded file (114 dB (A-weighted) dynamic range with USA version)
- 90kHz overall frequency response @192 kHz recording
- 40 bits processing
Recording capabilities
- up to 16 tracks recording on 2x SD cards (SDHC, SDXC)
- uncompressed BWF with iXML metadata
- 44,1 up to 192 kHz @ 24bits, Pull up/down 0.1% for NTSC world

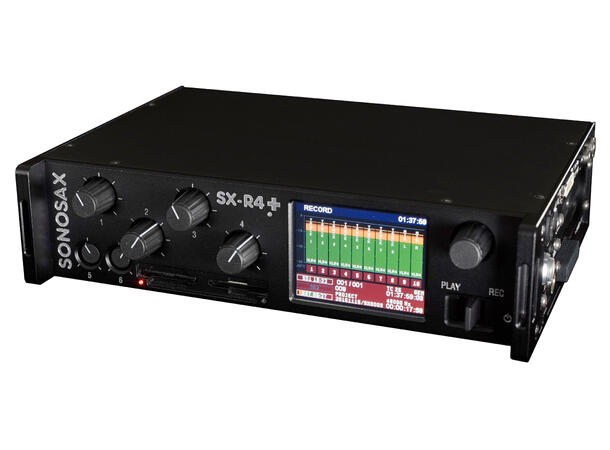

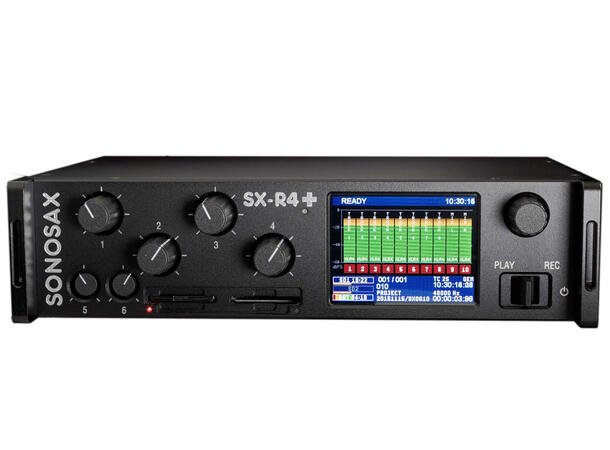

User Interface
- Touch screen 2.4'' TFT color display

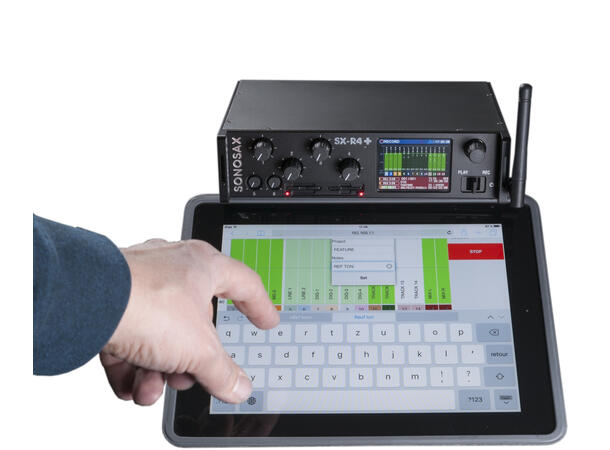

- WiFi dynamic web-app interface
Powering
- Removable 14.4V 48Wh Lithium battery, SMBUS capable (sold separately)
- External DC 9..18V on Hirose 4pins, SMBUS capable, electrically isolated (sold separately)
- 12V regulated decoupled DC output to power peripherals equipments up to 7W
- Intelligent energy management with detailed on-screen information
Timecode
- Accuracy: 0.5 ppm
- Independant in/out on lemo connector
- 23.976, 24, 25, 29.97DF, 29.97ND, 30DF, 30ND
Mechanical
- Machined aluminum housing
- Overall dimension: 200 x 50 x 144.5 mm (7.87'' x 1.96'' x 5.7'')
- Weight: 910g / 2.0lbs without battery, 1.2kg / 2.64lbs with 48Wh battery
