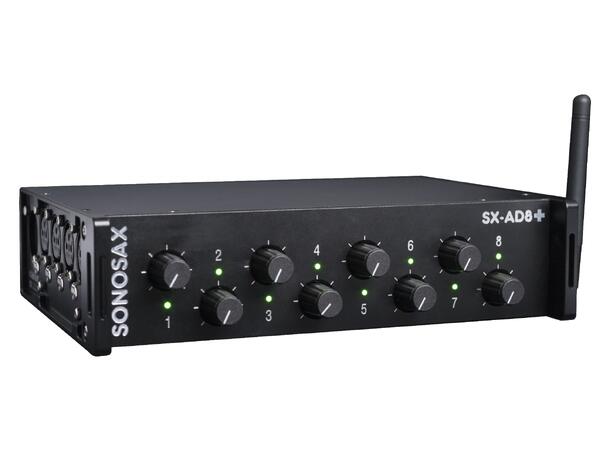

Description

Inputs / Outputs

• 8x Mic/Line inputs, electronally balanced on XLR-3F, with phase reversal, 48V phantom and LF cut with level control on the front panel
• 4x AES3 transformer balanced outputs on multi-pin connector
• Optional audio over IP on RJ45 connector, for AVB and Dante

Performances

• 135 dB (A-weighted) overall dynamic range
• 90kHz overall frequency response @192 kHz
• 40 bits processing
• 24bits 48/96/192 kHz

User Interface

• Using front panel push-buttons
• WiFi dynamic web interface
• through SX-R4+ user interface

Powering

• External DC 9..18V on Hirose 4pins
• Class 1 IEEE 802.3af PoE (with Dante option board)

Mechanical

• Machined aluminum housing
• Overall dimension: 200 x 50 x 144.5 mm (7.87” x 1.96” x 5.7”)
• Weight: 850g / 1.9lbs

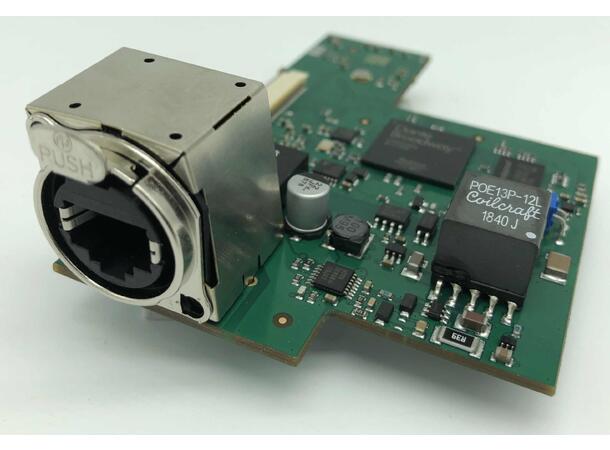

DANTE option card for the SX-AD8+

The card allows the SX-AD8+ to be connected to a DANTE audio network and makes the 8 analog input channels available as 8 sources in the DANTE Controller. The card is PoE power supply compatible and the SX-AD8+ can be fully powered via the Ethernet cable.
