Description

SX-R4+ firmware version 3.5 or greater required

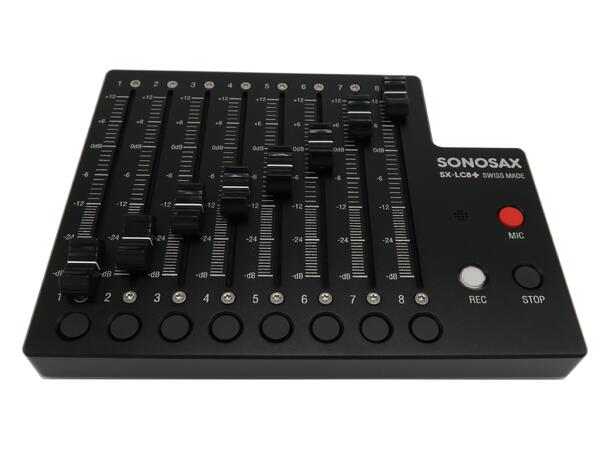

A dedicated control surface for the SX-R4+ providing input gain control or 8 linear faders with function switch to improve mixing convenience. The SX-LC8+ also provides a slate/com microphone.

Note: this product comes without cable. Please read the cables configurations document to order the cable you need (in the Accessories tab).

Key Features

• 8 linear faders that can be assigned to a SX-R4+ input or fader (for the mix channels)
• 8 assignable function switches
• dedicated REC/STOP buttons
• slate/com microphone with AES output
• a SX-LC8+ can be linked to another SX-LC8+ to operates with 16 linear faders
• can be operated with a SX-RC8+ or a SX-AD8+

Mechanical

• Machined aluminum housing
• Overall dimension: 200 x 155 x 28 (7.87” x 6.10” x 1.10”)
• Weight: 780g (1.72lbs)
