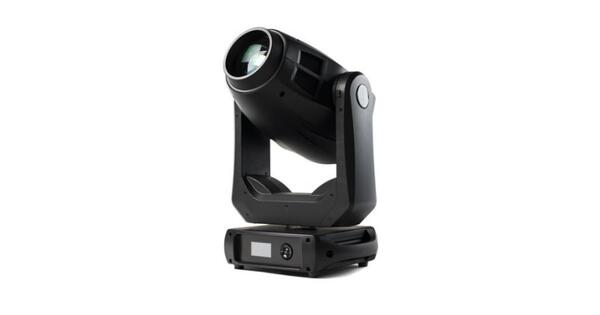

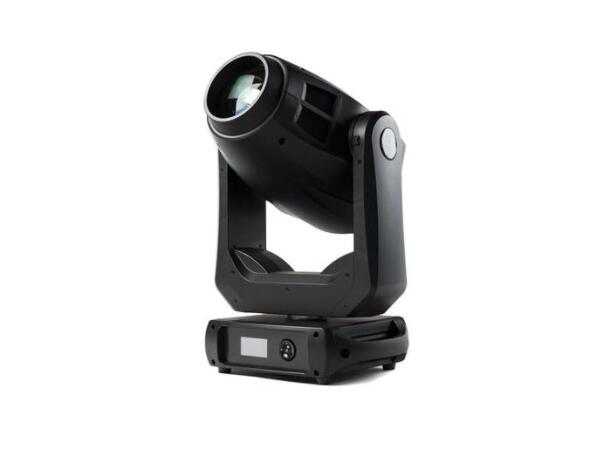

Snow Frost Hybrid Spot 350

CMY,W-DMX/RDM/Artnet/5-35 zoom

Varenr: 117865
-+
Bestillingsvare (0 dager)
BeskrivelseAlternativerRESSURSER
Beskrivelse

BESKRIVELSE

The Frost Hybrid Spot is the «swiss army knife» of the series, taking all the features you find in the Frost Beam, and adds a 350W White Osram LED with >90% spot evenness, CMY colour mixing with dichroic filters, linear CTO filter, Art-Net in/out, ArtNet2DMX, 5-35 degree zoom range, 4-facet prism with bi-directional rotation, linear motorised focus and zoom and a frost filter.

In other words, the perfect all-in -one beam-spot-wash fixture. Control is managed through both 3-and 5-pin DMX with support for RDM, Art-Net in/out on Ethercon RJ45 and built in W-DMX from Wireless Solution in Sweden.

TEKNISK INFO
      • 1 x 350W Osram Ostar white
      • Powercon I/O, 3&5 Pin DMX/RDM/ArtNet

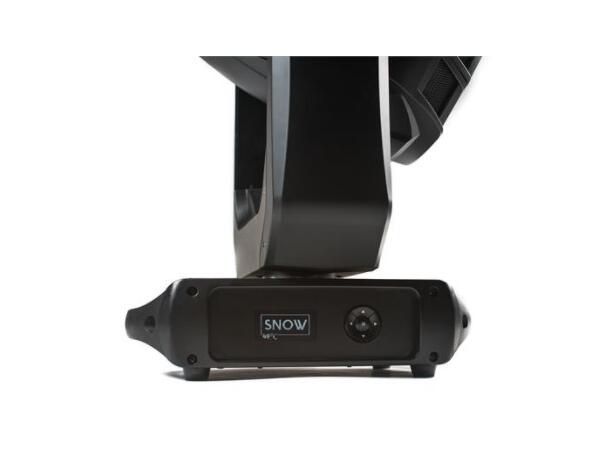

      • User friendly interface
      • 5-35 degree zoom
      • Universal power supply

    Technical specifications

    Light output:

      • Lux @ 5m 116666
      • LED type 1 x 350W Osram Ostar
      • LED color white
      • Drive current 4A
      • Refresh rate: Selectable 1200MHz-25.000Hz
      • Power 100~240VAC…50/60Hz
      • Power consumption: 350W Max
      • Control signal type: DMX/RDM/W-DMX/ArtNet
      • Number of DMX channels 25(Standard),20(Basic)



      Optics:

        • Beam angle, 5-35°
        • Rotating Gobo: 8 gobos + white, gobo-flow effect, gobo-shake, bi-directional rotation
        • Static gobo: 12 gobos + white, gobo-flow effect, gobo shake
        • Colorwheel: 8 dichroic-filters + white, rainbow-flow effect
        • Color: CMY + CTO
        • Prism: 1 x 4-facet w/bi-directional rotation, speed adjustable
        • Iris: 5-100% linearly adjustable with macro
        • Focus: motorised linear focus
        • Zoom: motorized linear focus:
        • 1 frost filter

      Dimensions:

          • 359 x 249 x 596 mm
          • Weight 18 kg
          • Housing material: Flame retardant plastic
          • Color: Black

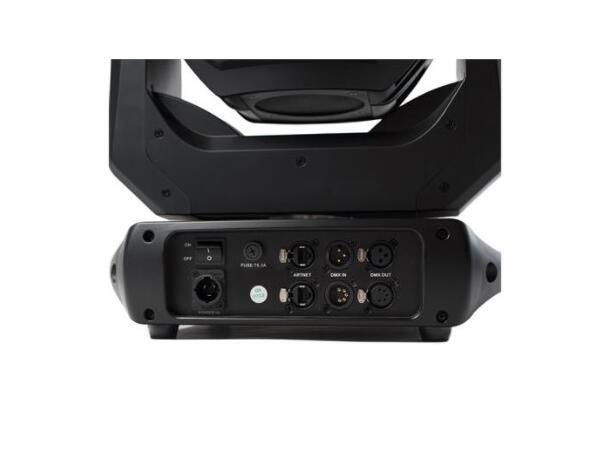

        Connections:

          • DMX: 3 & 5 pin in/out
          • Power: Powercon true 1 in/out
          • Forced convection cooling
          • Operating temperature: 0 – +45 grader Celsius
          • Ingress protection IP20, dry location

          Certification: CE, MET
