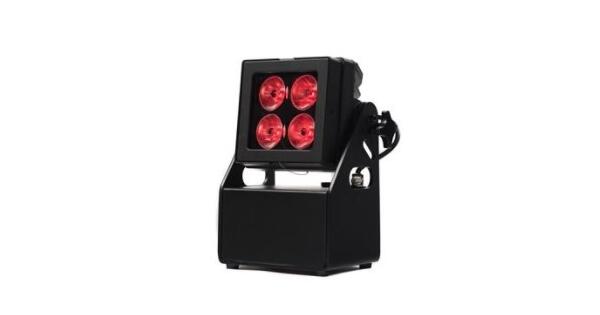

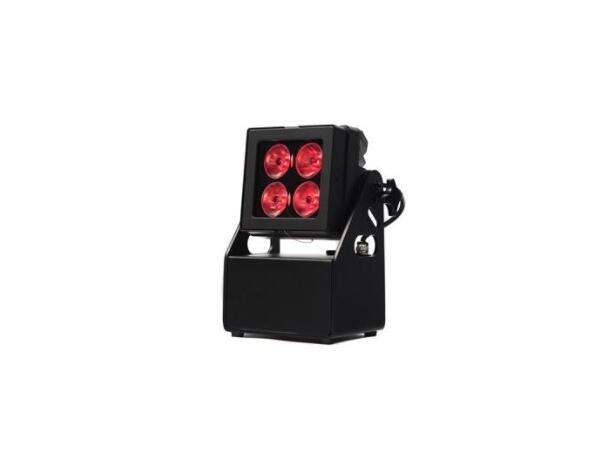

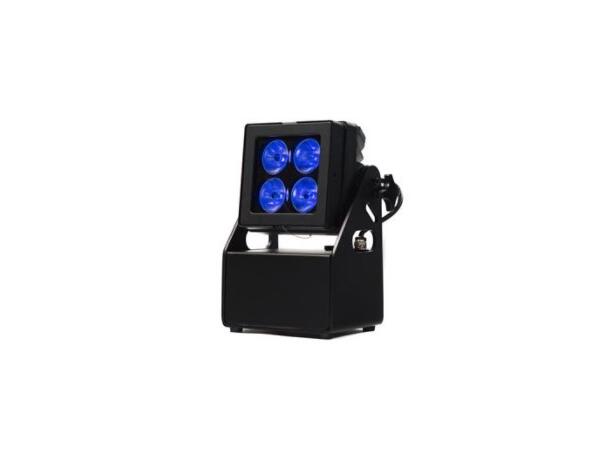

The SnowBAT Pro Quad 4 sports Osrams latest 15W RGBL (Red, Green, Blue, Lime) LEDs, 4 of them to be exact, for stunning color mixing and accurate white color reproduction. (Preset from 27000K-10000K). Massive output compared to size, with minimal battery draw makes sure the SnowBAT will last for your entire show and then some!
True IP65 waterproofing makes it ready for any situation and W-DMX from Wireless Solution in Sweden makes DMX-control a breeze.
You can even use the IR remote in situation where DMX control is not necessary.
The LED head is tiltable from 0-90 degrees and also has a magnetic frame to hold optional diffusion filters of your choice. (Pre-cut filters with 10, 20 and 30 degree diffusion is available.)
3-section pixelmapping control adds to your creative possibilities and 1/4-turn bracket mount makes rigging quick and effortless.
It charges through a standard True 1 power connection, no extra chargers or adapters are needed. It can of course be operated with power connected as well.
An optional 6-way flight case with power distribution is available, making transport, storage and maintenance easy.
TEKNISK INFO
Optical system
Light source: 4x15W (Osram RGBL)
Lens Angle: 10°(15° total beam) w/magnetic filter holder for 10,20 and 30 degree diffusor.
Electrical Specs
Voltage 100-240VAC,50/60Hz
Drive Current 600mA
Power Connection: True 1 Power In
Control System
Dimmer: 0-100% 16Bit
Cooling: Convection
Control: W-DMX, infrared control
Control display: On board OLED Touch display, Manual, Auto, Custom Mode,0-25Hz Strobe
Personality: HSIC/7CHS,SSP/7CHS,TOUR/11CHS,PIXEL/11CHS
Battery Info
Battery Storage: 14.8 V,11A/h
Run time: Up to 48h. Typically 10-20hrs(single colors 14-28hrs,double colors 9-18hrs,=three colors 6-12hrs)
Charging Cycle: 7hrs
Appearance
Size: 223x132x274mm
Weight: 6.3kg
Chassis: Die-cast aluminum
Color: Black
Work Environment
Ambient Temp: -20 - 45 degree
IP Rated: IP65
Certification
CE, MET
