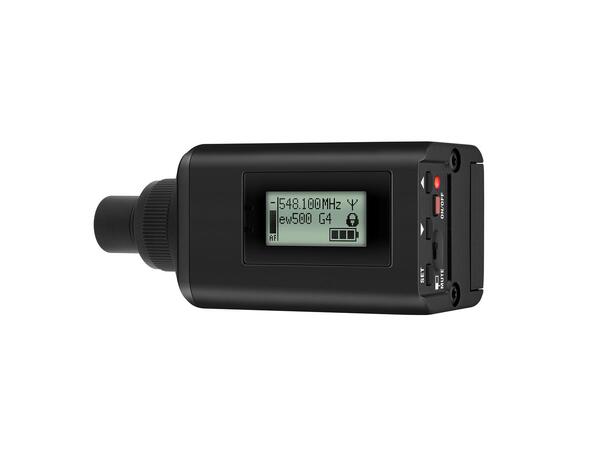

Sennheiser SKP 500 G4-BW Powerful plug-on transmitter w/ Phantom

Sennheiser SKP 500 G4-BW

Powerful plug-on transmitter w/ Phantom

Varenr: 117377
-+
Utsolgt (3 dager)
Send meg mail når varen er på lager

Jesper Kolvig

Salgssjef

+47 23 19 96 07









BeskrivelseAlternativerRESSURSER
Beskrivelse
Frekvensområder Bw: 626 - 698 MHz
  • Professional sound and excellent construction quality
  • Easy to use and fast setup time
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 88 MHz bandwidth, up to 32 channels
  • Range: up to 100 meters / 330 feet
  • Increased RF output power (10/30/50 mW)
  • Up to 8 hours of operation time
  • With 48 V phantom powering



DimensionsApprox. 105 x 43 x 43 mm
CompanderSennheiser HDX
THD, total harmonic distortion= 0.9 %
Weight(incl. batteries) approx. 195 g
Signal-to-noise ratio= 120 dBA
RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidthup to 88 MHz
Peak deviation±48 kHz
Nominal deviation±24 kHz
Operating timeTypically 8 h
ModulationWideband FM
Power supply2 AA batteries, 1.5 V or BA 2015 accupack
Current consumptionat nominal voltage: typ. 210 mA
with transmitter switched off: = 25 µA
Input impedance68 kO, unbalanced
Max. Input voltage6 Veff
Powering3 V battery / 2.4 V rechargeable battery
Transmission frequencyMax. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
AF frequency response80 – 18,000 Hz
Temperature Range-10 °C to +55 °C
