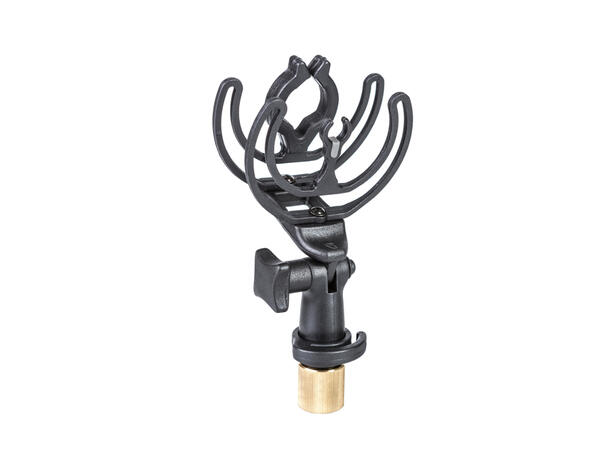

The INV-5 is suitable for compact microphones such as the Schoeps CCM series when used without a large foam windshield. The single 62 (19/25) Lyre at the front holds a mic body diameter of 19-25mm and the rear single 62 (9.5) Lyre holds connectors of 8-11mm e.g. lemo.
Suitable for the Beyerdynamic CK930 and Neumann KM100 amongst others.
Fitted with:
- 1 x 20mm clip at the front and 1 x 9.5mm clip at the rear, with Standard (70mm wide) Lyre
- Standard bar with 25mm (1") centres
An InVision set contains two Lyre, an appropriate length mounting bar, and in some cases, a reducing sleeve (InVision INV-4). The Lyre suspension webs of our InVision come in two sizes: - InVision Lyre width: 43 mm - Standard Lyre width: 70 mm Mounting bars come in two sizes: - Standard length: 25 mm - Large length: 70 mm The reducing sleeve allows for smaller microphones (e.g. Schoeps CCM series) to be held by the Lyre.
