RME HDPSe AoX-D Dante

512-Channel 4x MADI PCI Express Card Series
with Dante or Milan-Compatible AVB

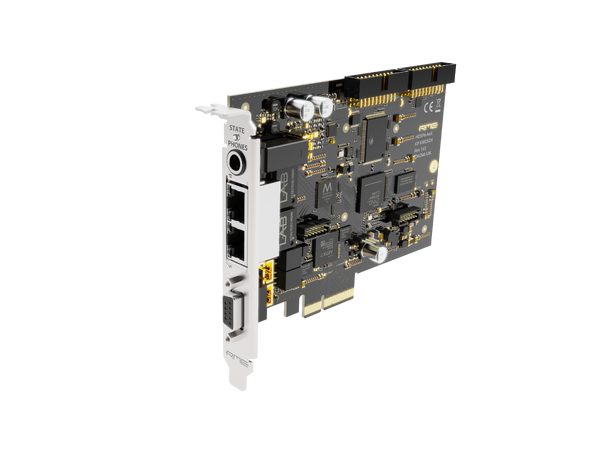

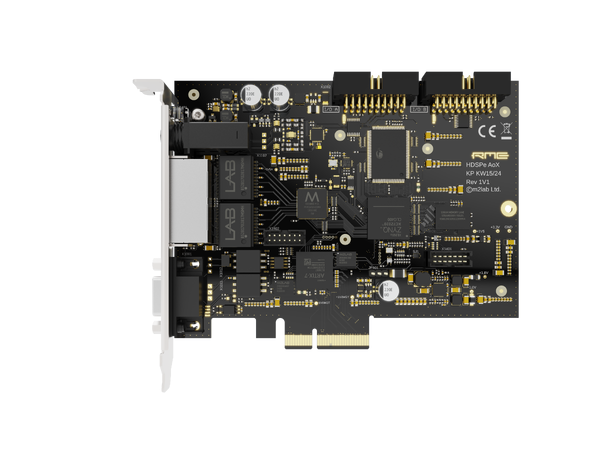

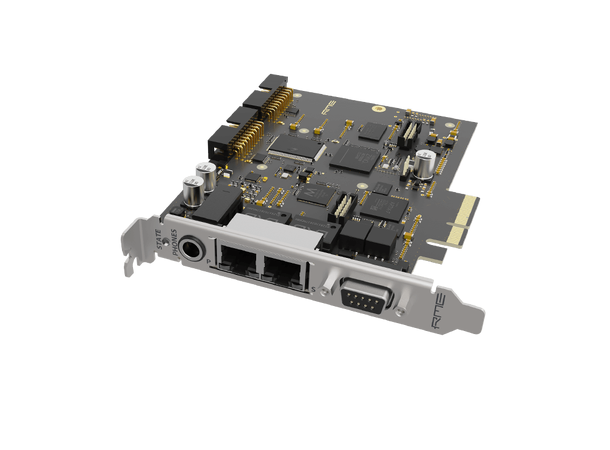

The HDSPe AoX (AVB) and HDSPe AoX-D (Dante) PCIe x4 audio interface cards combine dual network ports with headphone
output, AES3, MIDI, SteadyClock™ for all digital input signals and internal expansion headers for up to four optional MADI
ports. Whether used in a Thunderbolt™ expansion chassis or built into DAWs or audio processors, these cards send and

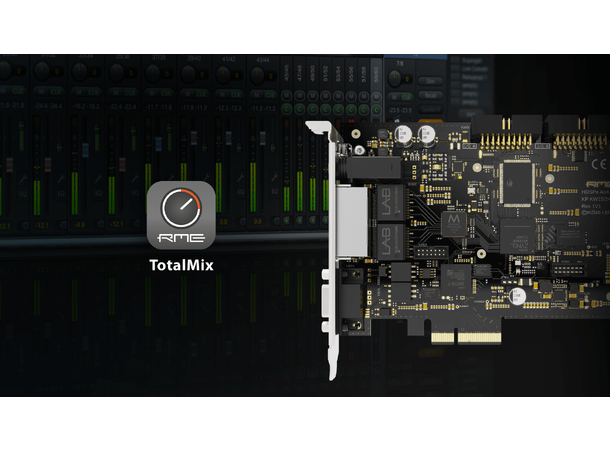

receive up to 512 channels of audio and provide numerous mixing and routing capabilities via TotalMix.

Connectivity

• PCIe I/O: 512/256/128 channels at 48/96/192 kHz sampling rate

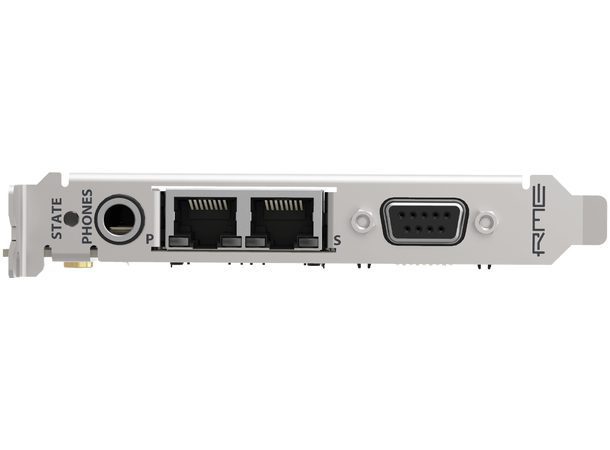

• 1x stereo phones out, ¼“ TRS

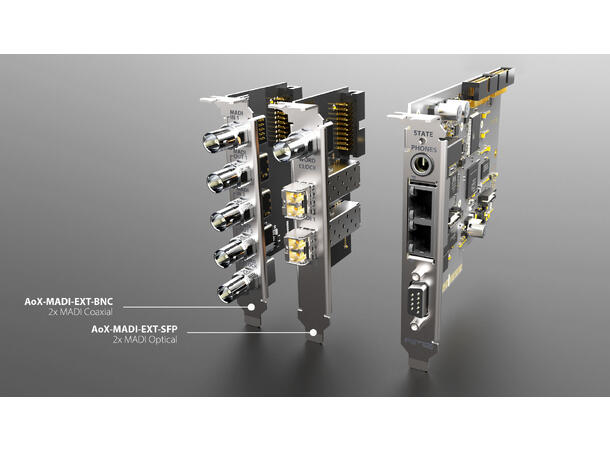

• 4 x MADI I/O (coaxial BNC & optional available optical SFP Modul)
• AES3 I/O via DB9 to XLR breakout cable
• 2 x RJ45 1 GigE
• Word Clock I/O (BNC)
• MIDI I/O via DB9 to 2x DIN breakout cable
