32-kanals 192 kHz AD-converter med MADI og DANTE, 1U
The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analog conversion with high-end network audio processing. These new converters are available with either 32 analog inputs or outputs, and either with Dante® or AVB for a choice of four different models.
Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.

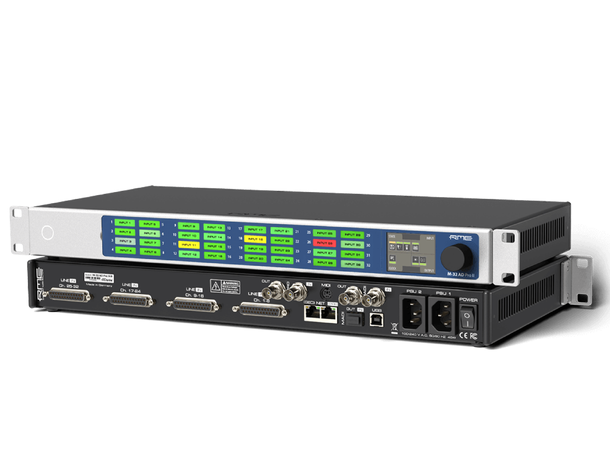

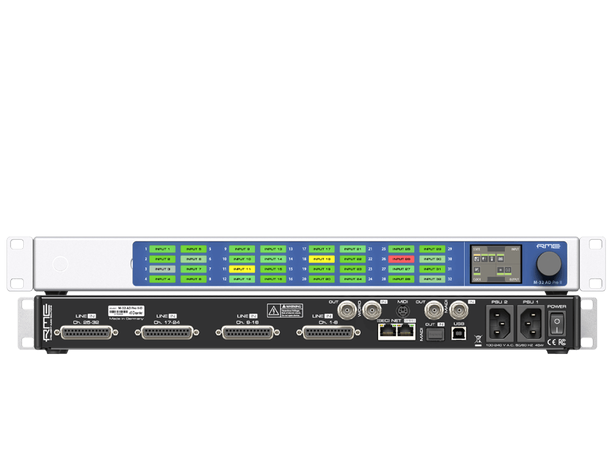

M-32 AD / M-32 DA Pro II-D
32 x Analog In/Out (25-pin D-sub, up to +24 dBu)
2 x MADI I/O (via optional available optical SFP and coaxial BNC, up to 128 Ch.)
2 x RJ45 for Dante network connectivity (up to 64 channels)
(optional) MIDI I/O for legacy MIDI Remote
Word Clock I/O (BNC)
USB 2.0 (for remote control)
2 x monitored fully redundant internal PSUs
32-channel AD converter, fully symmetrical design, 120 dBa
19” enclosure 1 unit height
Large, tri-color backlit channel indicators with Peak/RMS metering
Magnetic cover with customizable channel labels
SyncCheck® and ICC® - detects when a clock source is not in sync and falls back to other available signals
MADI Auto-Input - seamless redundancy
2” display with control knob for full device control
15 Preset storage, firmware upgrade persistent
Lock (optional code) and dark mode
Remote control via HTTP, JSON, MIDI over MADI and optional MIDI
M-32 Pro II-D AD Line In 1-32:
Resolution: 24 bit
Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Inputs AC coupled, fully symmetrical signal path (servo-balanced)
Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
Signal to Noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
Signal to Noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
THD @ -1 dBFS: < -111 dB, < 0.00029%
THD+N @ -1 dBFS: < -108 dB, < 0.00039 %
Channel separation: > 110 dB
M-32 Pro II-D DA Line Out 1-32:
Resolution: 24 bit
Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Outputs DC coupled, fully symmetrical signal path ("truly balanced")
Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
Signal to Noise ratio (SNR) @ +13/+19/+24: 116 dB RMS unweighted, 119 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 22 kHz
THD @ -1 dBFS: < -109 dB, < 0.00035 %
THD+N @ -1 dBFS: < -107 dB, < 0.00043 %
Channel separation: > 110 dB
