32-kanals 192 kHz DA-converter med MADI og AVB I/O, 1U
The M-32 Pro II series is designed to meet the demanding requirements of professional studios, immersive sound installations, live sound systems, and industrial applications that need a reliable solution for analog conversion with high-end network audio processing. These new converters are available with either 32 analog inputs or outputs, and either with Dante® or AVB for a choice of four different models.
Boasting up to 32-channels, fully equipped MADI I/Os (coaxial & optical via optional SPF module), improved specs with extremely low THD values, intelligent channel routing and innovative usability, the brand-new M-32 Pro II Series truly represents the state-of-the art in exceptional audio performance.

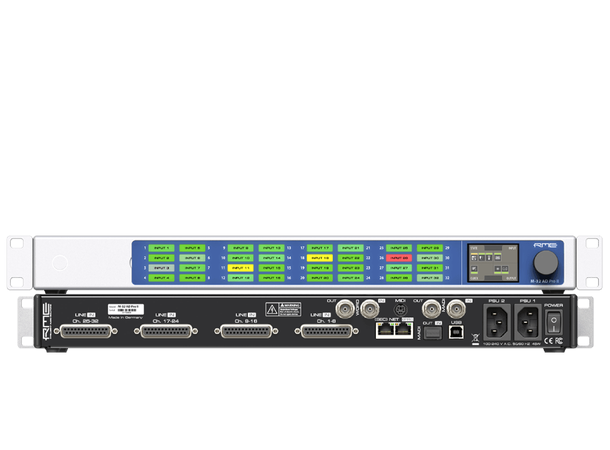

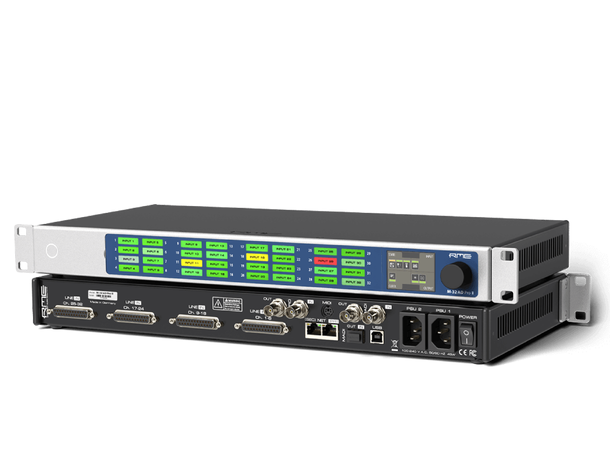

M-32 AD / M-32 DA Pro II
32 x Analog In/Out (25-pin D-sub, up to +24 dBu)
2 x MADI I/O (via optional available optical SFP and coaxial BNC, up to 128 Ch.)
2 x RJ45 1 GigE AVB, four streams with 4/8/12/16 Ch. each
(optional) MIDI I/O for legacy MIDI Remote
Word Clock I/O (BNC)
USB 2.0 (for remote control)
2 x monitored fully redundant internal PSUs
32-channel AD converter, fully symmetrical design, 120 dBa
19” enclosure 1 unit height
Large, tri-color backlit channel indicators with Peak/RMS metering
Magnetic cover with customizable channel labels
SyncCheck® and ICC® - detects when a clock source is not in sync and falls back to other available signals
MADI Auto-Input - seamless redundancy
2” display with control knob for full device control
15 Preset storage, firmware upgrade persistent
Lock (optional code) and dark mode
Internal routing of up to 224x192 M-32 AD Pro / 192x224 M-32 DA Pro channels in 4 channel blocks (32 x Analog, 64 x MADI Opt, 64 x MADI Coax, and 64 x AVB)
Remote control via HTTP, JSON, IEEE 1722.1 AVDECC ] MIDI over MADI and optional MIDI
M-32 Pro II AD Line In 1-32:
Resolution: 24 bit
Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Inputs AC coupled, fully symmetrical signal path (servo-balanced)
Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
Signal to Noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
Signal to Noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
THD @ -1 dBFS: < -111 dB, < 0.00029%
THD+N @ -1 dBFS: < -108 dB, < 0.00039 %
Channel separation: > 110 dB
M-32 Pro DA II Line Out 1-32:
Resolution: 24 bit
Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
Outputs DC coupled, fully symmetrical signal path ("truly balanced")
Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
Signal to Noise ratio (SNR) @ +13/+19/+24: 116 dB RMS unweighted, 119 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 22 kHz
THD @ -1 dBFS: < -109 dB, < 0.00035 %
THD+N @ -1 dBFS: < -107 dB, < 0.00043 %
Channel separation: > 110 dB
