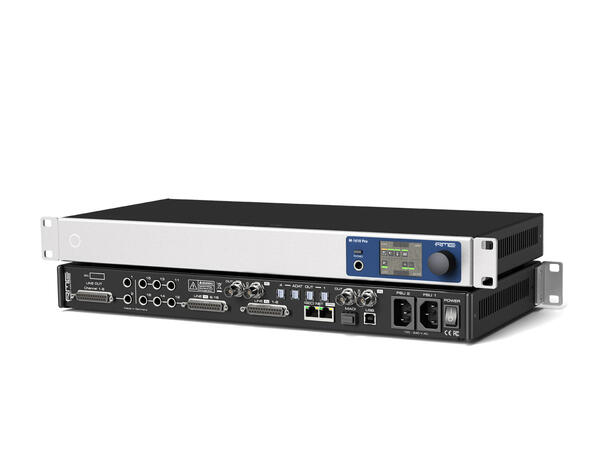

RME M-1610 Pro 16AD/8DA og Formatkonverter

Konverter for audio networks AVB MILAN, MADI og ADAT

Simplicity at first glance - Flexibility and reliability beyond
Integrating 16 analog inputs with a switchable  sensitivity of up to +24 dBu per channel; 8 corresponding analog outputs; and an additional headphone output, the M-1610 Pro brings plenty of analog I/O to any studio setup. With its coaxial and (optional) optical MADI,
 redundant AVB, four ADAT optical outputs, and redundant DC coupled power outputs, the device represents one of the most versatile and highest-performing


Add Analog and AVB I/O to any existing MADI devices

At the request of recording engineers using a variety of analog effects and instruments in their sessions, RME have combined the outstanding performance of the M-32 Pro AD and DA converters into a single device, and at an unbeatable price-point.

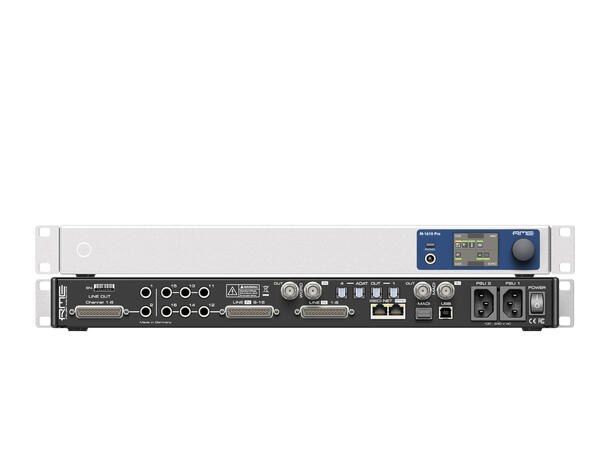

When compared with the M-32 Pro series, which were designed primarily for fixed installations, the M-1610 Pro adds a selection of additional user-friendly features, for seamless operation in studio, live and broadcast. Input and output TRS jacks provide alternative connections for the D-Sub inputs (inputs 11-16) and D-Sub outputs (outputs 1-2), alongside redundant network ports, a headphone output for monitoring and trouble-shooting, and quick access buttons for source selection and volume.

The internal routing matrix provides visual control over all channels side by side - up to eight AVB streams (with a total of 64 channels); the coaxial and (optional) optical MADI ports (with each up to 64 channels); all analog I/O; and the ADAT outputs, for flexible routing between the 208 inputs and 234 outputs.

Lowest converter latencies and deterministic AVB networking with configurable network delay down to 0.3 ms allow the M-1610 Pro to deliver samples, even from multiple devices, at incredible speeds - time-aligned with nanosecond accuracy across an entire network.

The AD and DA filters have been carefully optimized for different sampling rates, with a focus on accuracy and RME’s signature ‘transparency’ (nothing added, nothing removed). Together with SteadyClock FS, RME’s ultra-low jitter digital clock technology, the conversion to and from analog is state-of-the-art, at any level and across all digital formats. As a notable difference to similar devices, the three analog line levels per channel each offer the full dynamic range of the converters.

Two fully redundant network ports

For the first time, RME offers an AVB device with two fully redundant network ports, based on the recommendations of MILAN. The RME AVB Core has meticulously  implemented the IEEE standards for audio-streaming, discovery and control, allowing RME devices to be both discovered and fully controlled by any AVB controller, and making vendor-specific control protocols a thing of the past. Any signal reaching the 12Mic can be routed and streamed over a network with fixed latency and guaranteed bandwidth - no switch configuration is required!
