Description

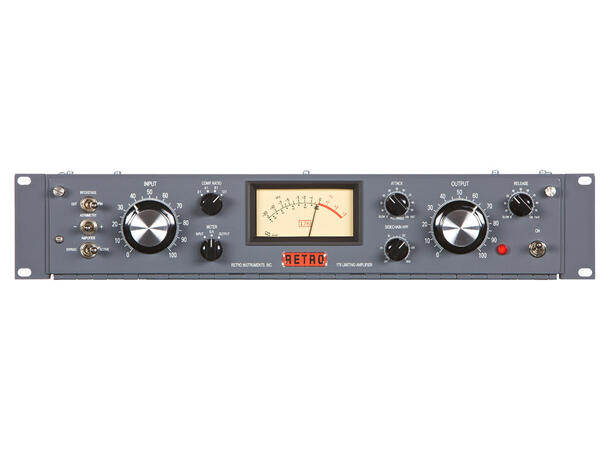

The Retro Instruments 176 is based on a Bill Putnam classic, the UA 176. The 176 faithfully reproduces the sound of the 1960s original with new features for the modern recording studio. The Retro Instruments 176 provides one of the most desirable compression signatures in recording history.

Learn more about the Bill Putnam original.

Features
Authentic variable-mu tube design
Precision Knob scales for easy recallability
Continuously variable attack and release time
Four settings of compression ratio from soft compression to limiting (2:1, 4:1, 8:1, 12:1)
Wide-Range Sidechain Highpass Filter
Vocal Asymmetry Tool
Hard-wire Bypass Switch
Interstage Transformer Bypass Switch
High Quality VU Meter switchable between Input, Output and Gain Reduction
XLR input and output connections
IEC power connector
115/230V AC Mains
Integral tube balance test
Easy stereo strapping of two or more units
Selected NOS tubes and components

Specifications
20 dB of available gain reduction
Signal to noise ratio of greater than 76dB
Flat frequency response within 0.5dB from 20-20,000Hz
Harmonic Distortion of less than 1% from 0-15dB gain reduction

Retro Instruments 176 Limiting Amplifier Compressor Limiter

Tilbehør

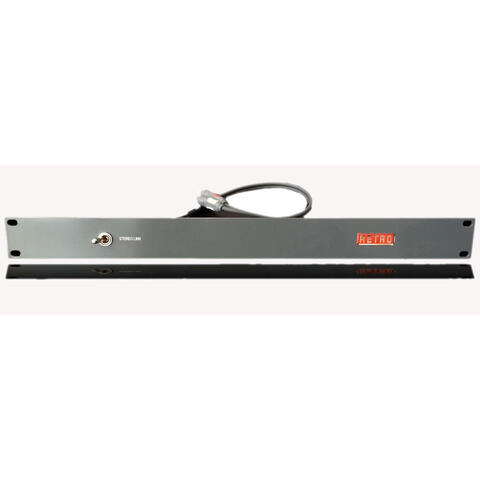

Retro Instruments Link Panel

Alternativer

IGS One Leveling Amplifier

IGS Double Triode Limiter

Artikler

Antall artikler funnet:

Retro Instruments 176 Limiting Amplifier

Compressor Limiter

Varenr: 115382

Utsolgt (9 dager)

Send meg mail når varen er på lager

Beskrivelse

Description

Learn more about the Bill Putnam original.

Features
Authentic variable-mu tube design
Precision Knob scales for easy recallability
Continuously variable attack and release time
Four settings of compression ratio from soft compression to limiting (2:1, 4:1, 8:1, 12:1)
Wide-Range Sidechain Highpass Filter
Vocal Asymmetry Tool
Hard-wire Bypass Switch
Interstage Transformer Bypass Switch
High Quality VU Meter switchable between Input, Output and Gain Reduction
XLR input and output connections
IEC power connector
115/230V AC Mains
Integral tube balance test
Easy stereo strapping of two or more units
Selected NOS tubes and components
