Rackmount Mic-Level Passive Splitter

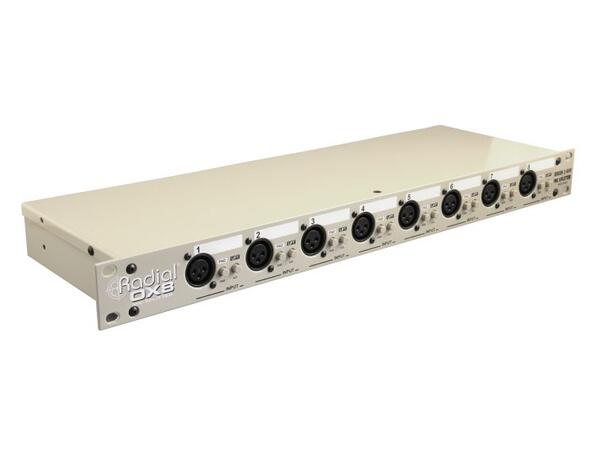

The OX8™ is an eight channel passive mic splitter designed to send the outputs of multiple microphones to three destinations at once, with transformer isolation and ground lifts to eliminate hum and buzz from ground loops.

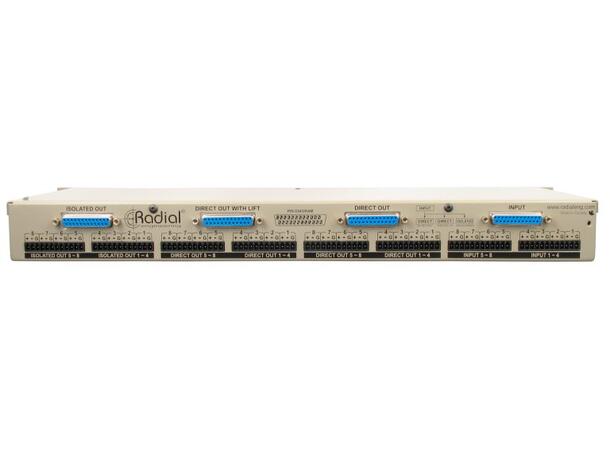

The Radial OX8 is a professional audio tool that is equally at home on a live stage as it is in a broadcast studio, splitting eight microphone signals to multiple destinations simultaneously without noise or distortion, and eliminating hum and buzz from ground loops. Each channel is configured with a balanced input, a direct out which also serves as a return path for 48V phantom power, a thru-put with a ground lift switch, and a fully transformer-isolated output. The OX8 may be ordered with premium Jensen JT-MB-CPC transformers or Eclipse ET-MS10 transformers as an affordable alternative. Each channel also benefits from an ultra-short signal path and built in RF filters to ensure absolute quiet performance even in the most noise-prone environments.
