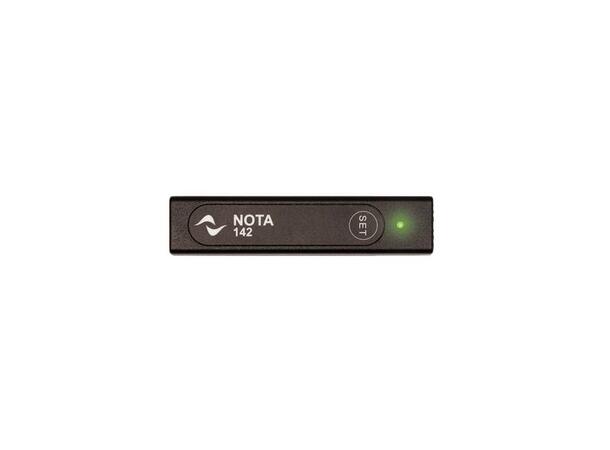

Powersoft NOTA 142
Nota is an ultra compact, versatile PoE/PoE+ amplifier designed for networked AoIP applications where space and wiring constraints are a concern.
Tailored for AV and IT system integrators, it offers an intuitive installation process with a single Ethernet cable for power and data.
With its modular design and flexibility, Nota seamlessly integrates into existing systems and expands them as needed, ensuring efficient operation in any networked environment.
Take Full Control.
Nota is compatible with the latest version of ArmoníaPlus software, giving you unmatched performance and seamless integration.
Compact Design
With its small form factor, it seamlessly integrates into tight spaces and offers the flexibility to expand your system as it grows.
Easy Installation

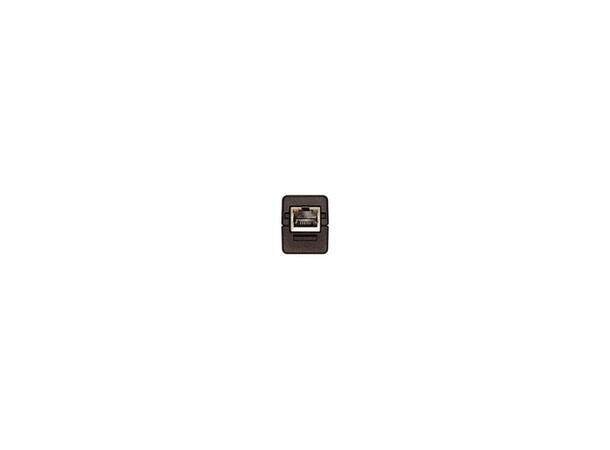

PoE integration simplifies setup by delivering power and data over a single cable, reducing wiring complexity.
AES67 Support
Ensures high-quality AoIP integration, it can be installed in confined spaces without the risk of overheating.

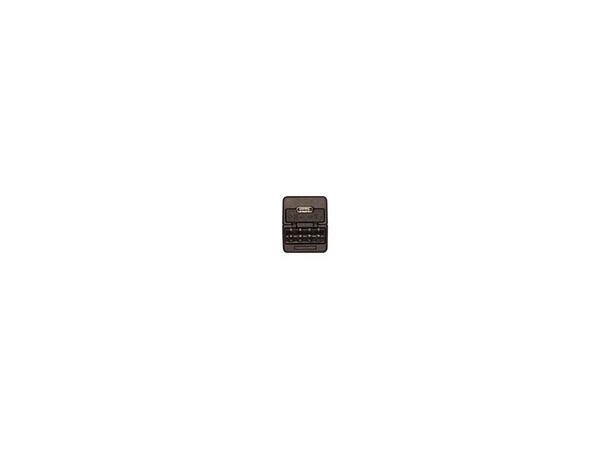

USB Connectivity
The USB-C port allows connectivity for external multimedia devices, while also acting as a USB to AES67 converter.
Built to Expand
Whether starting with a single zone or scaling up to large, complex installations, Nota is designed to grow with your needs. Its compact form and powerful performance allow it to seamlessly integrate into existing systems, providing flexibility for future expansion. Ideal for commercial and conferencing installations, it adapts effortlessly, ensuring both immediate and long-term scalability.
Powersoft Nota is purpose-built for AV and IT system integrators Its DSP LOAD MONITORING capabilities new systems or enhancing existing installations, Nota who demand versatility, efficiency, and seamless integration in their installations. Compact yet powerful, this professional PoE/PoE+ amplifier delivers up to 140 W across two channels, making it an ideal choice for networked environments where and speaker health monitoring ensure reliable performance, while compatibility with AES67 guarantees straightforward integration existing AoIP networks. into combines modularity, ease of use, and efficient operation in one compact solution. For integrators seeking a streamlined yet powerful amplifier that fits modern networked demands, Nota delivers an unmatched balance of performance and simplicity. space and wiring constraints are critical. Nota simplifies installations by using a single Ethernet cable for both power and data, significantly reducing complexity and cost. Through the Auto Setup function, Nota matches the impedance of the connected speaker and applies a high pass filter at the touch of a button. Designed to support a wide range of applications—commercial spaces, conferencing environments, and retrofit projects—Nota offers the f lexibility to adapt to diverse system needs. It empowers users with full control via Powersoft’s ArmoníaPlus software or third-party solutions through provided APIs, streamlining system management without requiring deep technical expertise. Whether creating cost-effective f PoE/PoE+ Powered f Class-D design f USB -C Connectivity f Auto Setup f Power Sharing f Integrated DSP f Lightweight and compact design f Mounting accessories.
Specifications
Audio Parameters
- Number of Output Channels: 2
- Rated Power @ 4O: 140 W
- Power Source: PoE+ / PoE
- Power Output (Per Channel):
- PoE+
- 8O (symmetrical): 35 W
- 8O (asymmetrical): 50 W
- 4O (symmetrical): 70 W
- 2O (symmetrical): 50 W
- 16O (asymmetrical): 40 W
- 8O (asymmetrical): 70 W
- 4O (asymmetrical): 110 W
- 2O (asymmetrical): 80 W
- PoE
- 8O (symmetrical): 30 W
- 8O (asymmetrical): 33 W
- 4O (symmetrical): 30 W
- 2O (symmetrical): 35 W
- 16O (asymmetrical): 33 W
- 8O (asymmetrical): 50 W
- 4O (asymmetrical): 73 W
- 2O (asymmetrical): 35 W
- Frequency Response: 10 Hz – 22 kHz
- THD+N (0.1 W to Half Power): < 0.005%
- Dynamic Range: >115 dB(A)
Environment
- Operating Temperature: 0°C – +35°C
- Humidity: 90% non-condensing
- IP Class: 30
- Certifications: CE, FCC, UKCA, CSA, Plenum rated
DSP
- DA Converters: 24 Bit @ 48 kHz
- Dynamic Range: 115 dB(A)
- Internal Precision: 32-bit floating point
- Latency: <10 ms
- EQ: Parametric IIR (peaking, hi/lo shelving, all-pass, band-pass, band-stop, hi/lo pass)
- Crossover: Butterworth, Linkwitz-Riley, Bessel (6 dB/oct to 48 dB/oct IIR)
- Limiters: RMS voltage, Peak limiter
- Input Delay: 0–100 ms
- Output Delay: 0–10 ms
- Startup Time: 1.1 ms
Power Supply
- PoE/PoE+ Voltage Range: 37–44 V
- Max Continuous Current Drawn: 600 mA
- Efficiency: =75%
Mechanical Parameters
- Nominal Size (D x W x H):
- 115 x 23.4 x 31.4 mm
- 4.5 x 1.1 x 1.2 in
- Weight:
