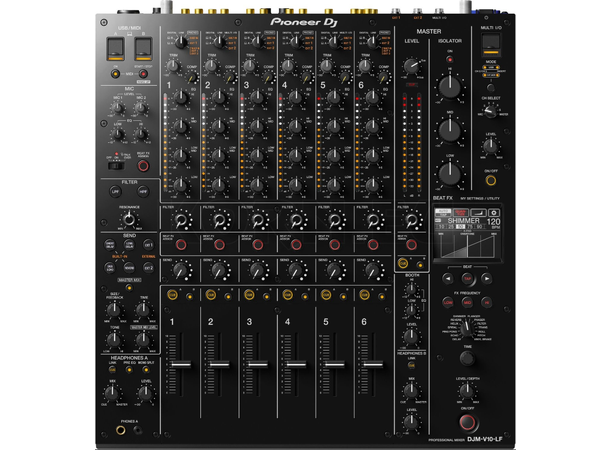

PIONEER DJ DJM-V10 LONG FADER

Craft your sound

The DJM-V10-LF features new, longer channel faders with optimized curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes.

The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.

All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.

Key features:

60 mm shaft slide faders
If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have replaced the 45 mm ones on the channels.

Unique fader curve
The unit includes two classic fader curves from its predecessor – optimized to make the most of the extra length – plus an all-new curve preset that enables you to make fine adjustments to the volume of each channel and precisely control the output sound.

Elite sound quality
Feel the warmth of natural sound and hear every detail. Studio-quality 64-bit mixing and dithering processing, 32-bit high-quality A/D and D/A converters, a low-jitter clock circuit, and many other components all work to  produce a full low-end, vibrant mids, and precise highs.

6 channels with a wide range of inputs
You’re free to create your perfect setup with 6 channels and a host of different input types.

4-BAND EQ and compressor
Take full control of your mix with the newly developed 4-band EQ. A built-in compressor enables further adjustment of the loudness of your tracks.

Effects for more creative expression
The expanded send/return section enables you to add external FX, or even combine them with built-in FX. Create unique sounds; the possibilities are nearly limitless

3-band master isolator
Effortlessly control the tone of your entire mix with the 3-band master isolator, featuring new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and drive the crowd wild by drastically changing the sound.

Dual headphones output and booth EQ
The DJM-V10-LF makes back-to-back monitoring simple and comfortable. You can tweak the sound in the DJ booth just the way you like.

 Lockable power cable
A lockable power cord is included for added reliability and to avoid accidental disconnections.

DJM-REC compatible
Record and archive your mixes via iPhone or iPad, upload your sounds to cloud services or effortlessly live-stream your sessions. Find out more.

rekordbox
Make full use of rekordbox's low-latency DVS feature for intuitive, smooth scratching. Find out more.

Serato DVS-ready
Use Serato DVS to control and scratch with CDJs or turntables (Serato DJ Club Kit license required, available separately).

TRAKTOR DVS-ready
Enjoy DVS control via Native Instruments’ TRAKTOR PRO 3 (available separately) . Use it to intuitively control and scratch with digital audio files stored on your computer. Find out more about the Pioneer DJ Certified program.

ShowKontrol
The DJM-V10-LF supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the key information from the DJM-V10-LF, such as fader and knob positions, to align sound and visuals to create shows that blow audiences away.

Main Features:

MIDI Control

• Full assignable MIDI controls
• ProDJ Link - Yes
• Booth EQ - Yes
• P-LOCK Fader Caps - Yes
• Auto Standby - Yes


DVS Control

• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3


What's in the box

• DJM-V10-LF
• Power Cord
• Warranty (for some regions)
• Quick Start Guide
• Precautions for Use


Specifications:

• Sampling Rate - 96 kHz
• Width - 17.23 in / 44cm
• Height - 4.25 in / 11cm
• Depth - 18.39 in / 47cm
• Weight - 26.24 lb / 12kg
• Frequency Range - 20 - 40000 Hz
• A/D Converter - 32 bit
• D/A Converter - 32 bit
• S/N Ratio Line - 105 dB
• S/N Ratio Phono - 88 dB
• S/N Ratio Mic - 79 dB
• Distortion - < 0.005 % (LINE)


Channels

• EQ - 4 band
• EQ Range - [Hi/Low] -8 ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
• COMP- Yes


Performance Control

• Channels - 6


Filter

• HPF
• LPF


SEND

• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4-inch TS jack)
• MULTI I/O
• 1/4-inch jack
• USB (Type A)

Beat FX

• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake

• FX Frequency - Yes
• X-PAD - Yes
• rekordbox Quantize -Yes
• Master Isolator - Yes


Mic

• Mic Connection
• XLR / 1/4-inch Jack Combo
• 1/4-inch TRS Jack
• Talkover
• 3 Position Switch
• Talkover Attenuator - Yes

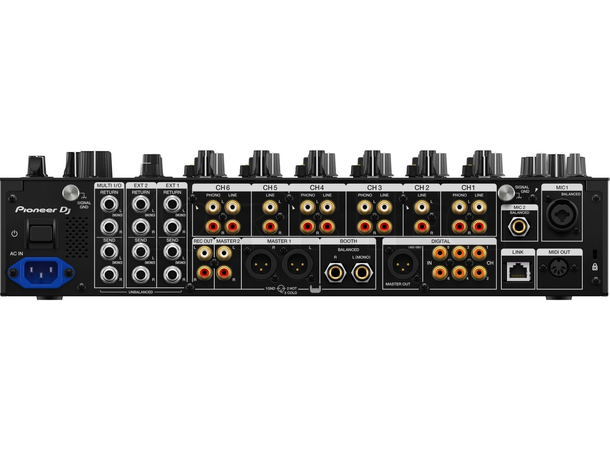

Terminals:

Inputs

• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)


Send/Return

• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)


LAN - 1

USB

• 2 USB B ports
• 1 USB A port


Outputs

• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)
