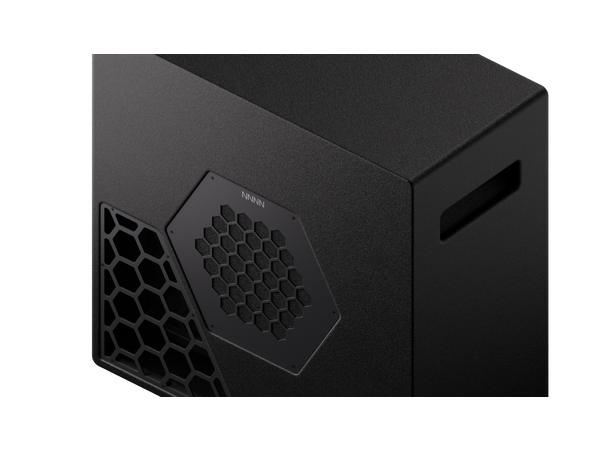

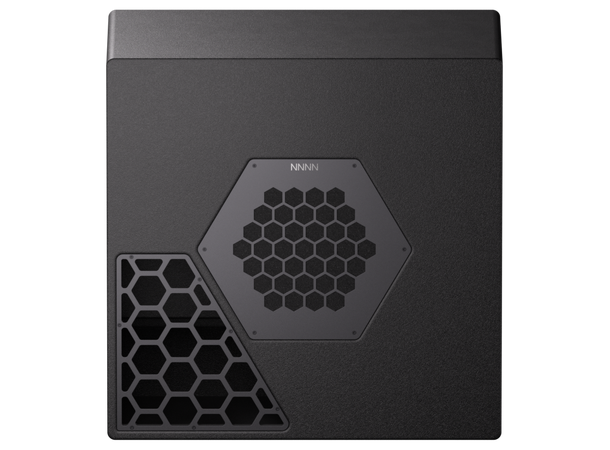

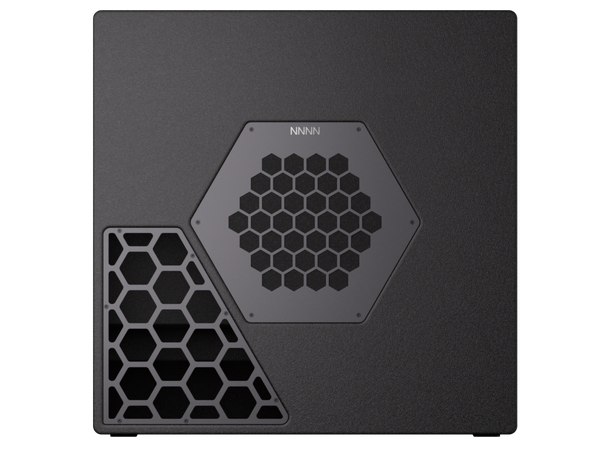

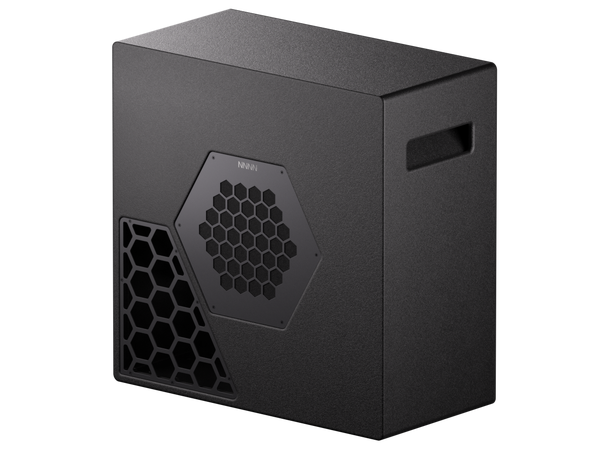

The Devor 40 is a high performance horn loaded subwoofer system with two 8” studio grade drivers.

Horn loading

The horn design provides high quality audio reproduction down to 40Hz. Devor 40 provides a low frequency response with very low distortion and a fast impulse response, where sound quality is prioritized over the very deepest frequencies.

Sub cardioid dispersion pattern

The Devor 40 has a close to sub cardioid dispersion pattern all through its intended bandwidth. This allows the sound pressure to be directed towards the audience, and minimizes the need for acoustical treatment of the room, as less energy is reflected off surrounding surfaces.

Mechanically balanced design

The Devor 40 is designed with dual 8’’ drivers, working mechanically in a push push configuration to feed the horn. This cancels out the movement exercised on the cabinet by each driver and minimizes distortion from the cabinet. This also contributes to the audience perceiving the bass signal through the air, along with rest of the music instead of out of time through the floor.

High SPL, small cabinet

Devor 40 has a high sound pressure level and a small visual impact, making it appropriate for a broad range of applications. Devor 40 can cover clubs to concert halls and auditoriums but also functions as a bass extension in studio and HiFi setups where 40Hz extension is sufficient.

Specification

Configurations: Self-powered and active 2-way
Frequency response ±3dB: 40 Hz - 125 Hz
Max SPL average: 130 dB
Nominal impedance front/rear: 8 O
Power handling capacity (cont./ program): 700 W / 1400 W
Connections self-powered: PowerCon True1 for power, XLR input, XLR output, Ethernet
Connections 2-way: SpeakOn 4 pole

Height: 600 mm / 23,6 in
Width: 600 mm / 23,6 in
Depth: 300 mm / 11,8 in
Weight self-powered: 30,6 kg / 67,5 lb
Weight 2-way: 29,6 kg / 65,3 lb
