TRS jack i front og bak



Description:

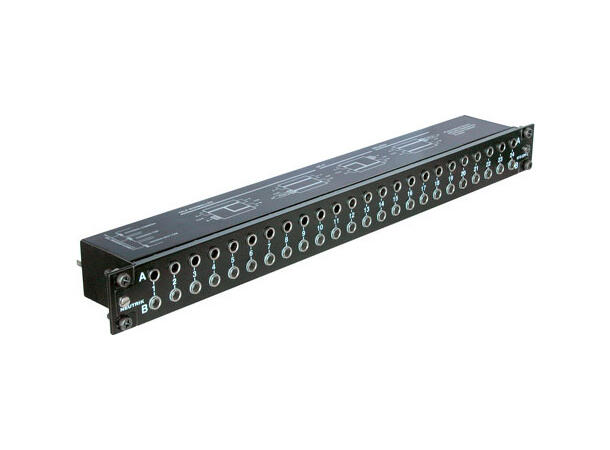

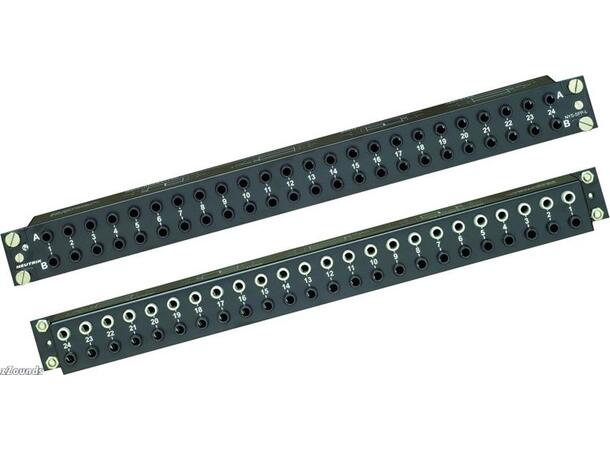

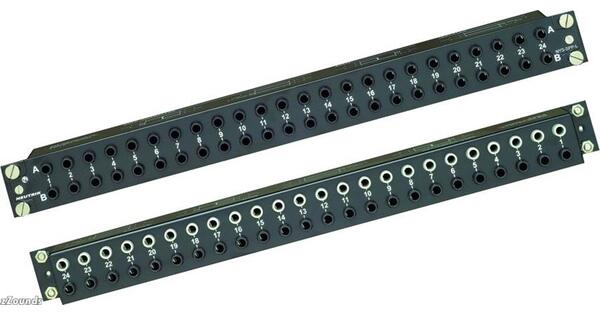

Neutrik TRS Jack Patchbay 2 x 24 sockets front and rear, selectable switching, fully PCB wired



Extremely sleek 1/4" Patch Panel with grounding possibility offering 2 rows of balanced sockets, a total of 24 front pairs and 24 rear pairs fully PCB-wired (without nut fastening), 1U 19" rack-mount and identification strips for front and rear panel included.



Design Criteria
The NYS-SPP-L1 is a economical and remarkable sleek designed 1/4'' modular Patch Panel for 19'' rack mount (19'' x 1U) with a reinforced metal housing. Each of it's 48 PCB wired balanced channels (24 front pairs and corresponding 24 rear pairs) can either be grounded separately or in groups of inividually chooseable channel numbers (detailed information see below).
The PCBs are held securely in place by being clamped between the front and the rear panel, this grants an easy reconfiguration of the Patch Panel without the danger of loosing any small parts (e.g. nuts). The grey jack serves as an easy and distinguishable normalling identification.



Features & Benefits



•Individual grounding available for each channel separately
•Ruggedized metal housing
•Improved contact design minimises wear on mated plugs
•Economic and versatile designed 1/4" modular Patch Panel with 2 rows of jack sockets
•48 balanced channels with fully PCB wired jack (24 vertical PC boards), 24 front pairs and corresponding 24 rear pairs
•Jack PC card contains 4 balanced 1/4" jacks with non-tarnishing contacts, is held securely in place without the use of nuts - no little pieces to drop, break or lose
•Easy to change configuration by just flipping individual PC board
•Normalling jack is coloured grey for easy identification
•4 designation strips included for front and rear panel
