Deep bass in a small space
The compact KH 750 DSP is the ideal choice for smaller rooms and
smaller studio monitors, such as the KH 80 DSP. It has a unique and
flexible 2.0/0.1 Bass Manager allowing the subwoofer to be used in many

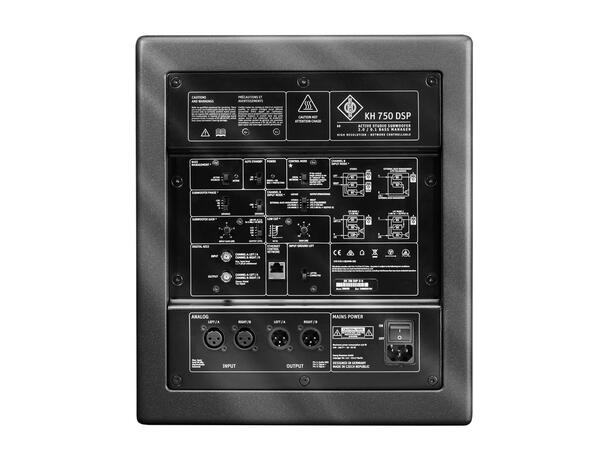

different system configurations. On the back panel there are analog and
digital inputs and outputs, four routing modes and adaptable acoustical
controls to allow for seamless system integration. The Neumann.Control
software gives access to many additional functions inside the subwoofer.
The KH 750 DSP can be used in music, broadcast, and post production
studios for tracking, mixing, and mastering.
Dealer Description

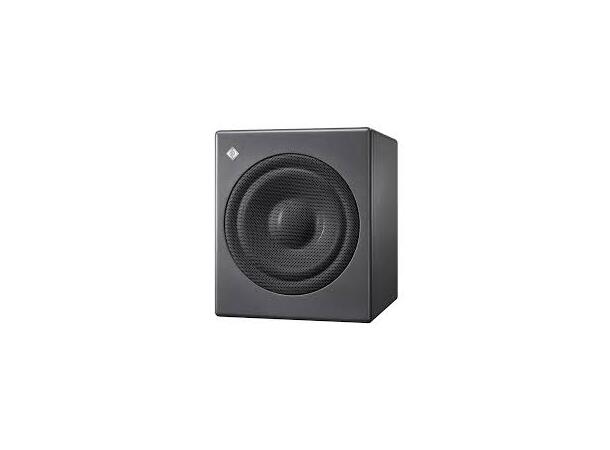

The newly designed 10” long-throw driver has a large magnet, linear
motor design and a very stiff pressed steel basket. As subwoofers are
usually placed on the floor, a robust grille protects the driver from
accidental damage. The well-braced cabinet is a sealed designed which
brings the fastest possible transient response. The two analog XLR
inputs are balanced as are the two analog XLR outputs. The 192 kHz /
24-bit digital input can accept AES3 and S/P-DIF signals. There is a
bypassable standby function and the switch-off time can be adjusted in
Neumann.Control.
Control and align your monitor setup with your iPad®
Via standard IP networking, Neumann.Control gives access to many
additional the functions of the KH 750 DSP Subwoofer. Systems of
loudspeakers can be defined, from mono to 3D, aligned for a good in-room
sound, and then operated centrally: Setup, Align, Operate. At last, you
do not have to be an expert to optimally integrate this subwoofer into
your system, even in a small room.
Neumann.Control for iPad®
The Neumann.Control app for iPad® offers several features allowing
you to setup, align and operate the KH 750 DSP and KH 80 DSP even in
large setups up to 9 loudspeakers.
The key features are:
Setup:
• 1, 2, 4, 5, 7 and 9 loudspeakers and subwoofers
• Identify loudspeakers and subwoofers on the network that are in the room
• Assign the identified loudspeakers and subwoofers to positions in the room
Align:
• Guided Alignment – a set of simple questions resulting a well-balanced
sound. The Guided Alignment is a process where you are asked very
simple questions about the room and the loudspeaker/subwoofer position,
and then the app adjusts the response of each loudspeaker/subwoofer
accordingly.
• Manual Alignment – an 8-band fully parametric equaliser for expert
users. In Manual Alignment expert users have complete freedom to adjust
an 8-band parametric equalizer, levels and delays in each
loudspeaker/subwoofer as they wish. Manual Alignment can also be used to
edit Guided Alignments in a more detailed way.
Operate:
• System and alignment selection
• Volume control, preset levels, dim, mute all
• Groups, solos, mutes
• Other system settings such as delay, standby level and logo brightness
System Requirements: iPad® with iOS® 10 or higher
Applications:
- Decreased the bass extension of the monitoring system
- Increasing the maximum SPL of loudspeakers
- Decreasing harmonic and intermodulation distortion of loudspeakers
- Reproducing the LFE channel
- Reproducing the “Sub” signal of a bass managed multichannel source
- Working as an extension for KH line subwoofer systems
(1)
Compact ultra stiff wooden cabinet
- Tough painted finish and high density rubber isolating feet
- Excellent self-damping properties leading to minimal cabinet resonances
- No standing wave resonances inside cabinet
- Tight bass sound due to very low group delay
(2)
In-house modelled long-throw bass driver with Extremely Linear Force Factor™ (ELFF™) and robust built-in grille
- Damping of break up modes brings low distortion at high sound levels
- Extremely linear force factor provides low harmonic distortion even at high excursions
- Reduced air noise and improved rocking modes
- Grille protects against mechanical damage
(3)
2.0/ 0.1 Bass Management
- Stereo and externally bass managed applications
- Bypassable 4th order crossover for maximum compatibility with consumer reproduction systems
- Allows main loudspeakers to play louder and with lower distortion
(4)
Four routing modes
- Stereo 80 Hz bass management
- External bass management
- LFE up to 120 Hz
- LFE full range
(5)
XLR electronically balanced analog inputs and outputs
- Standard interfacing to professional equipment
- Daisy chain output for subwoofer arrays
(6)
Wide range input gain and output level controls
- Easier interfacing with signal sources
8-position phase control, continuous low cut control and parametric equalizer
- More control in various acoustical environments
- Easy to correct room modes
(7)
Universal switched-mode power supply (100 … 240 V)
- One version works in any country and robust to poor quality mains supply
(8)
Ground lift
- Reduced noise in electrically noisy environments and overcomes ground loops
(9)
Low heat dissipation amplifiers with large headroom and sophisticated protection circuitry
- Improved transient response
- Assured reliability and safety
Separate thermo limiter to protect the voice coil and power amplifier
- Soft clip and excursion limiters
- Increases system reliability
- Allows extraction of the maximum performance from the system
(10)
Digital input and output
- 192 kHz, 24-bit conversion
- BNC connector: AES3 and S/P-DIF signals
(11)
Network connector using standard IP protocol and your existing network infrastructure
- No additional special equipment needed
- Loudspeaker system can be controlled via the Neumann.Control software
(12)
Control function
- Use the back panel controls or the control set defined by the Neumann.Control software
(13)
Standby function
- Reduces power consumption when product is not in use
More features
- 8 x full parametric equalizer incl. Lo-/Hi-Shelf and Low-/High-Pass, controllable via Neumann.Control
-> Accurate and flexible alignment of the subwoofer in the room and within systems
- Delay
-> Lip-sync (100 ms): To align audio and video signals up to 2.5 frames at 50 Hz or 3 frames at 60 Hz
-> Time-of-flight (2 x 20.8 ms): To compensate for listening distance differences up to 7.2 m (12 ft 5in)
