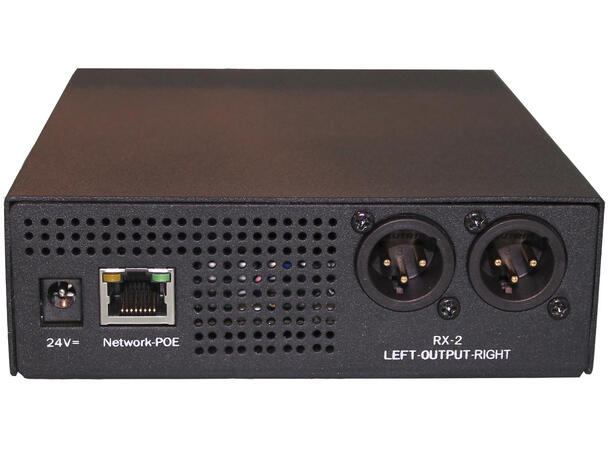

RX-2 Personal Monitor Rackmixer
The RX-2 is a rack-mountable remote controlled networked mixer for
the myMix system. It comes in a solid metal housing (1U) and is designed
to be operated by the myMix Control web browser based interface.The
RX-2 has the same mixing capabilities as a standard myMix: it can select
up to 16 audio channels from the network and create a stereo mix,
controlling volume, pan, tone control and stereo effects perchannel.
The myMix network can manage up to 500 audio channels which can consist
of local inputs from myMix mixers, analogue or digital inputs to IEX16

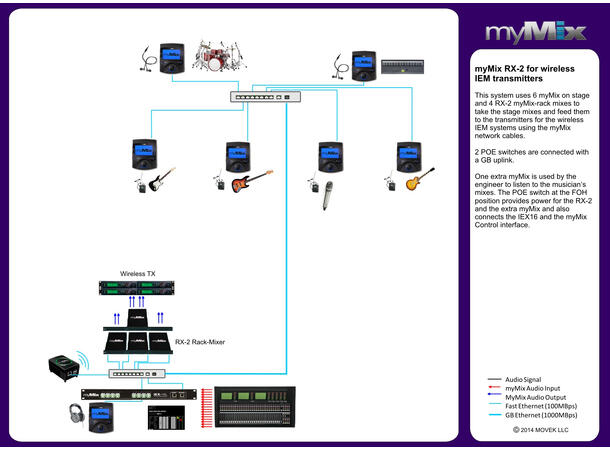

input expanders, or stereo mixes from myMix mixers.The RX-2 is ideal for
transporting a mix that is created on a myMix in one place via the
network to another location, e.g. a musician on stage is creating a
stereo mix and is sending that mix to the network. The RX-2 selects that
mix signal and can add some extra channels like talkback or intercom
from other sources; the output is then fed to a wireless transmitter for

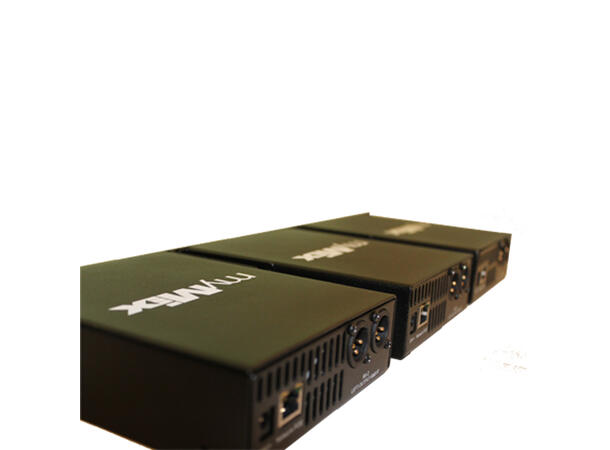

in-ear monitors. The optional RX-RM rack-mount kit allows to fit three
RX-2 devices in 1U rack space.
- For mix outputs from myMix System (to feed wireless IEM transmitters) or internal submixes
- High quality, low latency Audio Over IP on CAT5
- Two balance line level outouts (XLR)
- myMix CONTROL web browser for configuration
- Metal housing with rack mount option
- Optional 19" rack-mount kit - holds 3 Rx-2 in 1U
- Fully compatible with all myMix devices
