PSC 75 RCA/RCA 75ohm 0,5m Coaxial cable 0.5m, 75ohms, black

PSC 75 RCA/RCA 75ohm 0,5m

Coaxial cable 0.5m, 75ohms, black

Varenr: 121789
-+
Bestillingsvare (9 dager)
BeskrivelseTeknisk infoTilbehørRESSURSER
Beskrivelse

PSC 75


The Right Cables with 75 Ohms Characteristic Impedance



Properly Connected: the 75 Ohms Versions



The technically accurate cable is a very relevant factor to experience the quality of MUTEC components in the best possible way. We have therefore decided to develop our own cable series.

With our Prime Select Cables (PSC), you can be sure that devices from MUTEC – but also components of other manufacturers – will achieve their full potential. During development, all coaxial cables of the Prime Select category have been measured exclusively by MUTEC’s developers and tested on MUTEC equipment for compatibility and quality.

In this series with 75 ohms characteristic impedance we offer three connector variants: RCA/RCA, RCA/BNC, BNC/BNC. This way you can find the right version for your individual needs.


Reliable Craftsmanship


Handmade in Germany, Prime Select Cables do not follow any esoteric voodoo philosophies, but are based on technically relevant characteristics that can be reproduced at any time – just as it is known and expected from MUTEC. They combine high quality cable material with first class connectors and precisely meet the specifications required for the intended use. Our developers have meticulously ensured that the signal transmission quality remains consistent, the square-wave signals retain their shape and are not slurred. MUTEC Prime Select Cables guarantee complete, accurate and fast transfer of digital audio and clock signals.



75 Ohms Characteristic Impedance


A constant characteristic impedance of 75 ohms is particularly important for the transmission quality of an S/P-DIF signal or the 10 MHz reference clock signal* between input and output. This is determined not only by the cable material, but also by the connector. Both must ensure the required 75 ohms termination all the way through. Reflections within the cable, which can cause unsteady delivery of the data packets (= jitter), have to be prevented. This problem is avoided with a MUTEC coaxial cable. A characteristic impedance of 75 ohms is guaranteed.

Please note *: For proper connection of devices with a 50 ohm impedance used in their reference clock transmission, we offer a separate cable series: PSC 50 BNC/BNC.


Triple Shielding


The cable material of a MUTEC Prime Select Cable is triple shielded in an unique way – by two robust AL/PTE foils and a tight tinned copper braid. This provides the lowest possible attenuation values and comprehensive shielding from electrical interference fields. With a diameter of 8 mm, the MUTEC PSC 75 is slim, flexible and yet robust. An oxygen-free, silver-plated solid core wire with lowest tolerances acts as conductor. This is embedded in a flattened gas-foamed insulation.



High Quality 75 Ohms Connectors


First-class connectors by Neutrik are used for the RCA versions. They excel with hard gold-plated contacts, a precise design with unique collet strain relief and guarantee the necessary characteristic impedance of 75 ohms due to their construction.
As BNC connector MUTEC uses the product of a German special manufacturer with decades of long-term experience. The mechanically extremely robust full metal connectors are hard gold-plated in the contact area, providing a constant contact pressure over their entire lifespan and meet the required characteristic impedance of 75 ohms with low return loss.

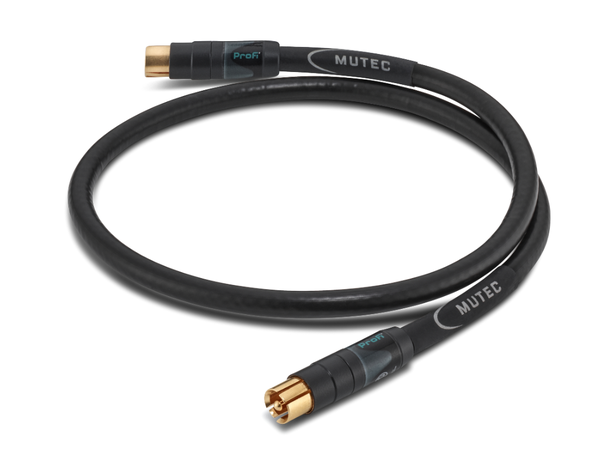

PSC 75 RCA/RCA


The coaxial cable for the S/P-DIF interface with 75 ohms characteristic impedance. One RCA connector per side. It is suitable for stacking MC-series devices with each other or interconnecting with external components: DAC, streamer, CD player/transport.



PSC 75 RCA/BNC

The coaxial cable for the S/P-DIF interface with 75 ohms characteristic impedance. An RCA connector and a BNC connector terminate the cable. It is suitable for stacking MC-series devices with each other or interconnecting with external components: DAC, streamer, CD player/transport. The BNC connector allows the cable to be used directly with the MC3+ USB, whose S/P-DIF coaxial jack offers the BNC format. A BNC/RCA adapter is therefore not required. As a result, a sound-degrading contact point is diminished.



PSC 75 BNC/BNC

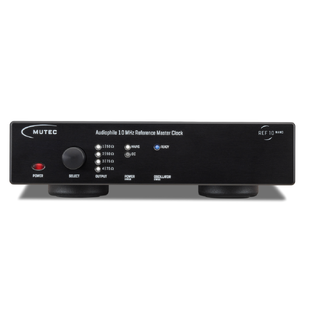

The coaxial cable with 75 ohms characteristic impedance for 10 MHz reference master clock or word clock interfaces. One BNC connector per side. Perfect for interconnecting a MC3+/MC3+ USB interface with a reference master clock of the REF series. Or for connecting a REF10 NANO / REF10 / REF10 SE120 directly to the 10 MHz input with 75 ohms impedance of a compatible device, for example DAC, streamer, network-switch or CD-player. In a professional studio, a MUTEC PSC 75 BNC/BNC is used for interconnecting devices for word clock synchronization.



Technica Data:



  • Impedance: 75 ohms
  • Lengths: 0.5 m, 0.75 m, 1.0 m, 1.5 m, 2.0 m (BNC/BNC only)
  • Interfaces: 2 x BNC connector, 2 x RCA connector, 1 x RCA/BNC connector each
  • Cable diameter: 8.0 mm
  • Cable sheath color: black
  • Cable connectors: BNC: Damar & Hagen, RCA: Neutrik
  • Weight – 0.5 m: 63 g, 0.75 m: 83 g, 1.0 m: 106 g, 1.5 m: 165 g, 2.0 m (BNC/BNC only): 183 g (without packaging)







Teknisk info

Produktinformasjon

- Grensesnitt (Protokoll) WordClock
- Plugg inngang (hun)
  • BNC
  • Phono RCA
- Plugg utgang (han) Phono RCA
