Microtech Gefell M 930 Kondensator mikrofon
- extreme dynamic range
- noise floor 7dB-A
- universal applications
- new large diaphragm capsule
- advanced circuit design
- transformerless output
- internal elastic suspension
- compact design
The M 930, M 940, M 950 studio condenser microphones combine modern large diaphragm capsule technology with the latest in semiconductor circuit topology. They are specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Their very favorable pricing also makes them attractive for project studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.

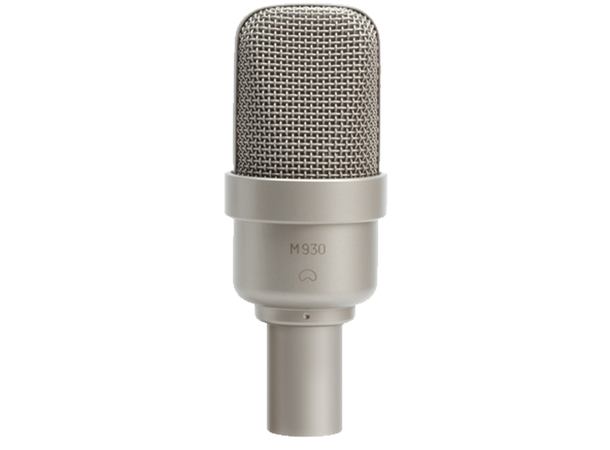

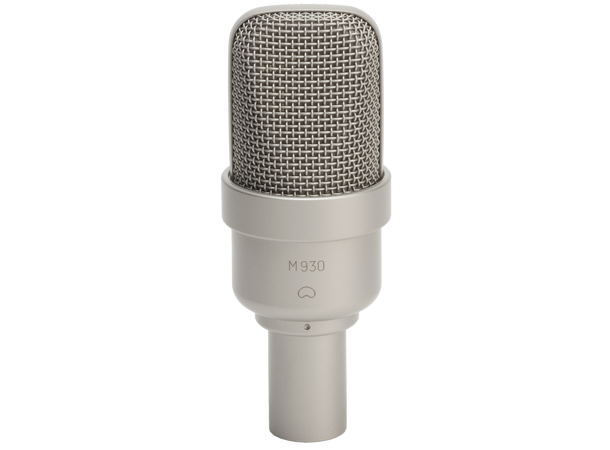

The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.

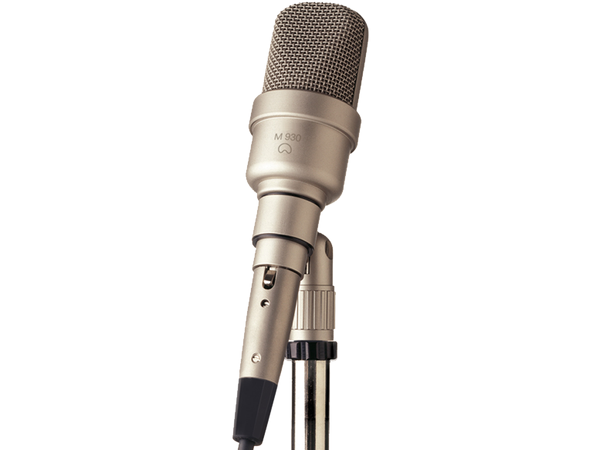

Studio Condenser Microphone M 930
Polar pattern Cardioid
Acoustic operating principle Pressure gradient transducer
Frequency range 40...18000 Hz
Sensitivity at 1 kHz 21 mV/Pa
Output impedance 100 Ω
Noise level CCIR 468 - 4 13 dB
DIN EN 60651 7 dB - A
Signal-to-noise ratio ( re 1 Pa at 1 kHz ) CCIR - weighted 81 dB
A - weighted 87 dB
Max. SPL for THD < 0,5% 142 dB
Max. output level RL = 1 k Ω 17 dBu
RL = 10 k Ω 18 dBu
Dynamic range of electronics 135 dB
Current consumption (P 48, DIN 45596, IEC 268-15) 3,6 mA
Output connector 3-pin XLR connector goldplated contacts
Weight without MH 93.1 210 g
Dimensions ( L x Ø ) 118 mm x 45 mm
Finish satin nickel, dark bronze
