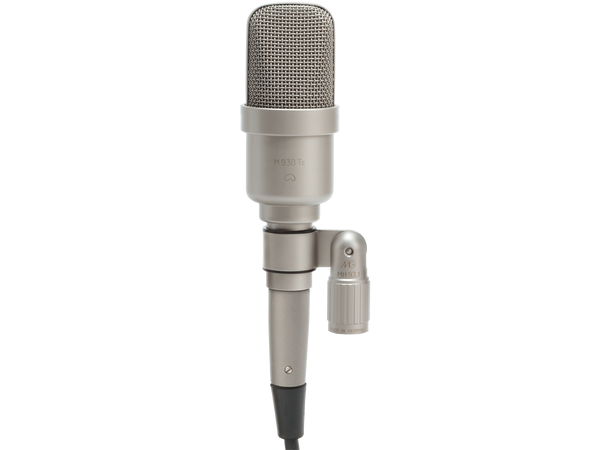

M 930 Ts with holder MH 93.1, in wooden case
Studio Condenser
Microphone
Cardioid
big output transformer with optimized circuit
low frequency transmission with negligible distortion
low frequency response
extreme dynamic range
noise floor 7 dB(A)
highly balanced output
high solid-borne sound attenuation
compact design
| Studio Condenser Microphone |
M 930 Ts
|
| Polar pattern |
Cardioid |
| Acoustic operating principle |
Pressure gradient transducer |
| Frequency range |
40...18000 Hz |
| Sensitivity at 1 kHz |
23 mV/Pa |
| Output impedance |
40 O |
| Noise level |
CCIR 468 - 4 |
18 dB |
| DIN EN 60651 |
7 dB - A |
| Signal-to-noise ratio ( re 1 Pa at 1 kHz ) |
A - weighted |
87 dB |
| Max. SPL for THD < 0,5% |
142 dB |
| Max. output level |
RL = 1 k O |
18 dBu |
| RL = 10 k O |
21 dBu |
| Dynamic range of electronics |
135 dB |
| output symmetry acc. IRT |
> 60 dB |
| power supply |
48 V ± 4 V |
| Current consumption (P 48, DIN 45596, IEC 268-15) |
6 mA |
| Output connector |
XLR3M |
| Weight without MH 93.1 |
273 g |
| Dimensions ( L x Ø ) |
130 mm x 45 mm |
| Finish |
satin nickel, dark bronze |
