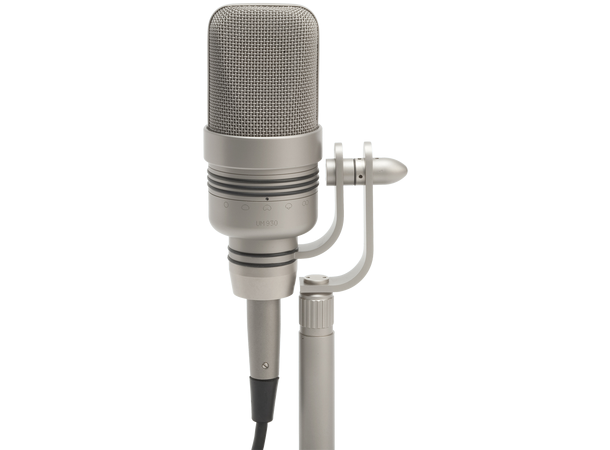

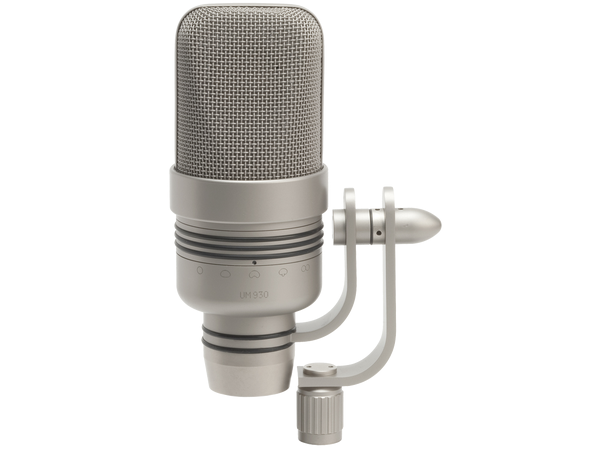

Microtech Gefell UM 930 SCT Mikrofon
large diaphragm dual-capsule
switchable: omni, wide cardioid, cardioid, hypercardioid, fig-8
exceptional dynamic range
equivalent noise level 7 dBA
transformerless output
elastic capsule suspension
Soundcheck Tool SCT
muting function
optical ready indicator
satin nickel / dark bronze finish
The switchable studio condenser microphone UM 930 combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology.
The optimized dual-capsule assembly opens up new applications in the recording technique.
Among conventional switching technique there is the possibility of attaching a twin-Version, viz. microphones can be used with two directional pattern at the same time.
Application
The UM 930 is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. This microphone is ideally suited for universal miking applications in broadcast and sound studios.
Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboards, percussion, wind and string instruments.
The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.
UM 930 SCT with Soundcheck Tool
Available for the UM 930 SCT condenser microphone is an 1kHz level checking test signal for checking a complete sound system following the microphone. The Soundcheck Tool is enabled when the polar pattern switching ring is placed midway between any of the polar pattern symbols for longer than 4 - 5 seconds, and the green LED illuminates. The level testing signal takes the individual sensitivity of the microphone, pattern cardioid, and it is equivalent to a sound level of 74 dB. This is 20 dB lower than the reference level at 1 Pascal, and assists in basic microphone setup during soundcheck. The Soundcheck Tool reduces the need for frequent voice tests during setup in most cases.
