M 310 Studio Microphone durable ceramic electrode
- condenser microphone
- supercardioid
- small diaphragm capsule
- PE diaphragm
- transistor pre-amplifier
- phantom powering P48

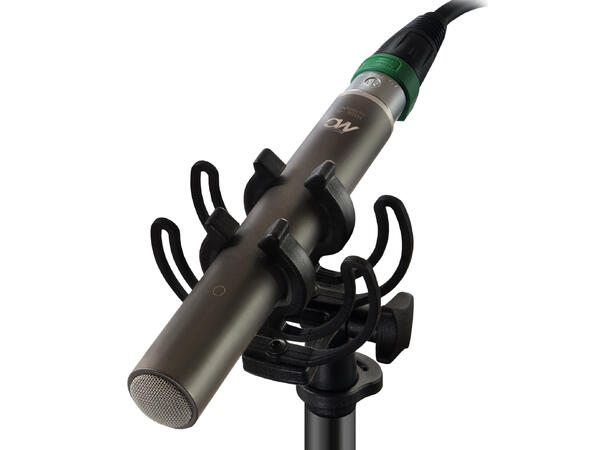

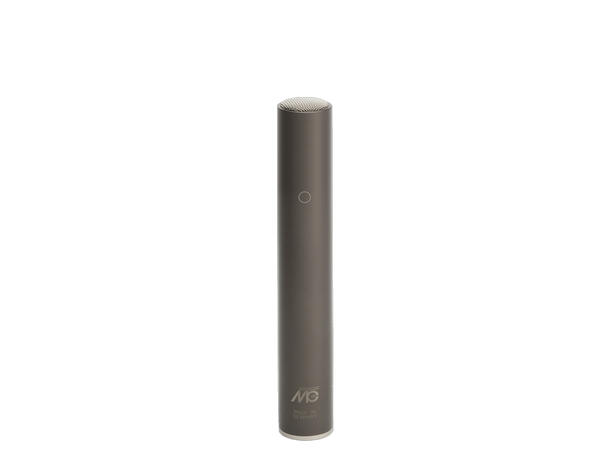

The M 320 is a compact condenser microphone in studio quality. The
miniature microphone is well suited for vocal and instrumental soloists.
lt permits a lifelike recording also at various sound incidence, e.g.
announcer in synchronous studios, speaker, blower. The M 300 is designed
for studio applications in radio, television broadcasting and films for
live performance and recording of instruments, vocals and speech and
sound reinforcement in the professional and semiprofessional market also
under adverse acoustic conditions, e.g. in churches.
A low-noise integrated hybrid circuit and the transformerless circuit
design guarantee an extremely wide dynamic range by a low equivalent
loudness level and a high reliability in operation.
| Polar pattern | omni |
| Acoustic operating principle | pressure transducer |
| Frequency range | 20 Hz bis 20.000 Hz |
| Sensitivity at 1 kHz | 16 mV/Pa |
| Output impedance | 100 Ohm |
| Noise level | CCIR 468-4 | 25 dB |
| DIN EN 60268-4 | 14 dB-A |
| Signal-to-noise ratio | CCIR weighted | 69 dB |
| A-weighted | 80 dB |
| SPL for THD 0,5 % | 144 dB |
| Dynamic range | 130 dB |
| Current consumption | 3,3 mA |
| Output connector | XLR3M |
| Weight | 125 g |
| Length | 21 mm |
| Diameter | 21 mm |
| Surface | dark bronze |
