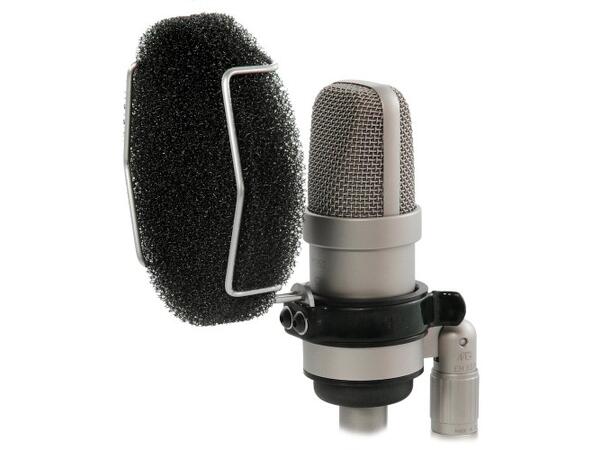

Microtech Gefell M 930 Kondensator mikrofon
medfølger EH93P elastisk oppheng og P110.20 popfilter

The M 930, M 940, M 950 studio condenser microphones combine modern large diaphragm capsule technology with the latest in semiconductor circuit topology. They are specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Their very favorable pricing also makes them attractive for project studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboard, percussion, wind and string instruments.

The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.



Studio Condenser Microphone  M 930
Polar pattern  Cardioid
Acoustic operating principle  Pressure gradient transducer
Frequency range  40...18000 Hz
Sensitivity at 1 kHz  21 mV/Pa
Output impedance  100 O
Noise level  CCIR 468 - 4  13 dB
DIN EN 60651  7 dB - A
Signal-to-noise ratio ( re 1 Pa at 1 kHz )  CCIR - weighted  81 dB
A - weighted  87 dB
Max. SPL for THD < 0,5%  142 dB
Max. output level  RL = 1 k O  17 dBu
RL = 10 k O  18 dBu
Dynamic range of electronics  135 dB
Current consumption (P 48, DIN 45596, IEC 268-15)  3,6 mA
Output connector  3-pin XLR connector goldplated contacts
Weight without MH 93.1  210 g
Dimensions ( L x Ø )  118 mm x 45 mm
Finish  satin nickel, dark bronze
