Flexible studio microphone, with a widecapture range and large frequency range. The signal is so strong you do not need a separate microphone amplifier.

    Maximum SPL Input: 125dB
    Equivalent Noise Level: <7dBA
    Dimensions: Ø60 mm x 155 mm
    Weight: 340 grams

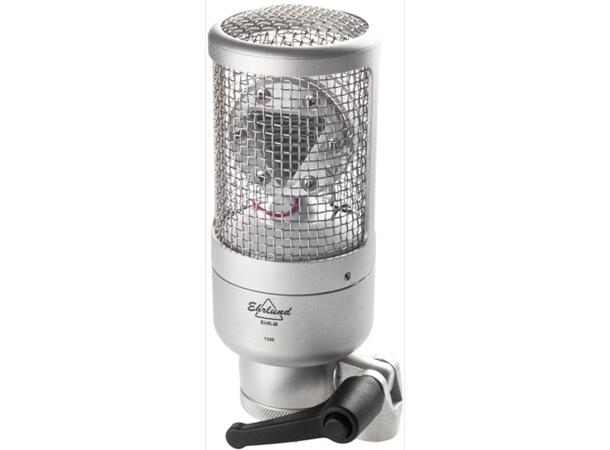

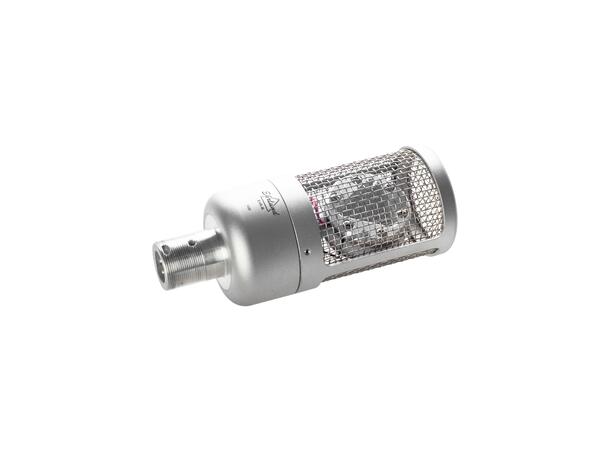

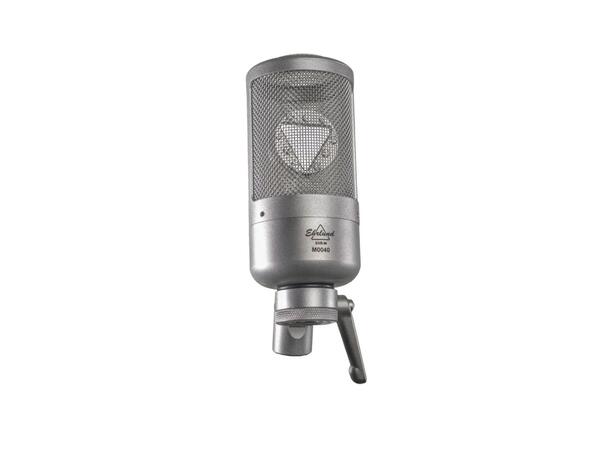

The EHR-M is a Swedish manufactured condenser microphone for studio use, designed for music and song recording. Its patented triangular capsule design has been allied to a very low noise and low power phantom feed amplifier. It has been designed to deliver the cleanest sound possible. This enables complex signals to be reproduced in their original form. The sound becomes transparent and relaxed.The microphone has broad and smooth pickup characteristics, with deep bass and extended treble. This microphone has among the lowest self-induced noise and highest sensitivity on the market. The output signal is so strong that you do not need a separate microphone amplifier.

TECHNICAL INFORMATION

TYPE Condenser microphone with a unique triangular membrane

RECORDING RANGE True cardioid

FREQUENCY CAPTURE RANGE 7-87 000 Hz

IMPEDANCE Handles all impedances that arise without altering the frequency response

MAXIMUM OUTPUT LEVEL Depends on mixer/input used

POWER FEED 48 V phantom feed, 2,0 mA

CONNECTOR Standard 3-pin XLR

POLARITY Positive pressure on the membrane produces positive voltage in pin 2 relative to pin 3

CONSTRUCTION Aluminium body, housing made of toughened stainless steel

DIMENSIONS Ø60 mm x 155 mm
