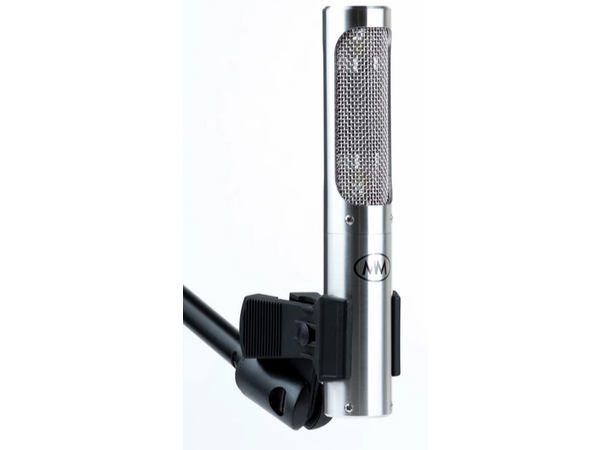

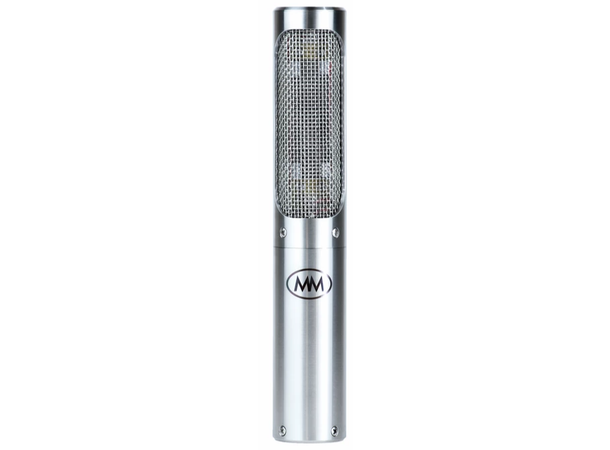

THE MODEL 2A

The ultimate active ribbon microphone

• An all-original one of a kind ribbon motor construction providing an extremely wide and balanced frequency response
• Custom in house wound toroidal transformer and active electronics
• High output level with optimal impedance matching and extremely low self-noise
• Open, transparent, natural sound with incredible depth and detail
• All stainless steel construction
• 100% handcrafted in Detroit, MI

The active version of the Model 2

The Model 2A is an active version of the Model 2 ribbon microphone. The Model 2A utilizes the same design features found in the Model 2 and offers the same unique sonic character. The microphone contains our signature motor structure and custom designed resonator plates to provide the incredibly extended, detailed, and 3D like response found in our Model 2.

The Model 2A’s high output is provided by a custom, in house wound, toroidal transformer. This high turn ratio transformer is perfectly matched to the Model 2A’s ribbon to provide optimal performance.  The phantom powered electronics work as an impedance buffer and provide no additional gain or coloration to the sound. The result of this ideal impedance matching is 13 dB more output than the Model 2 and extremely low self-noise.

 With its high output level, the Model 2A will work perfectly with any preamplifier. Whether you are using an entry-level interface or a high end dedicated preamp, the Model 2A will deliver stunning results. The Model 2A excels on quieter sources such as acoustic guitar, vocals, strings, and piano - yet still delivers beautifully on louder sources like guitar amps and drum overheads. The Model 2A also shines on location recordings of choirs and orchestras where low noise and high output is needed.

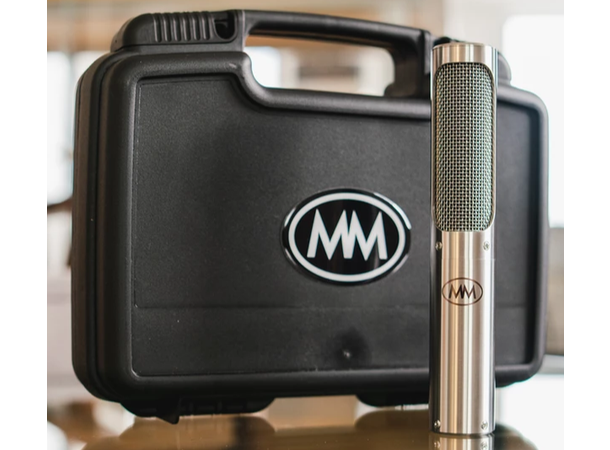

 The Model 2A is covered by a lifetime parts warranty and a free re-ribboning for the original owner within two years of purchase. The microphone ships with a plastic carry case, mount clip, and protective pouch.

Specifications:

• Directional Pattern: Bidirectional
• Frequency Range: 20-20kHz and beyond
• Sensitivity: -40.2 dB (9.8 mV/Pa)
• Self Noise: 11 dB(A)
• Max SPL: 140dB SPL
• Output Impedance: 170 Ohms

?

Ribbon Element:

• Material: Pure Aluminum
• Thickness: 1.8 microns
• Length: 2 in - 5cm
• Width: 0.23 in - 0.58cm

Dimensions:

• Height: 7.4 in - 18.8cm
• Diameter: 1.25 in - 3.175cm
• Weight: 340g
