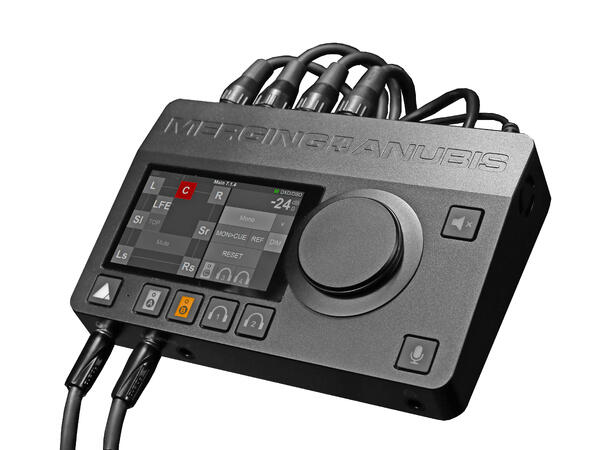

Merging+Anubis SPS Lydkort & Monitorkontroller

Merging Anubis SPS leveres i både PRO og PRE utgaver eg er fokusert mot markedene kringkasting og systemintegrasjons såvel som i situasjonaer der man ønsker en nettverksredundans og kompatibelitet. Anubis SPS leveres med to nettverksporter og har utviddede spesifikasjoner:

MERGING+ANUBIS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities depending on an IP infrastructure. Incorporating client requests to go beyond the ST2110 capability of Anubis, SPS includes no compromise ST2022-7 class C and NMOS compliance. It provides the most efficient and cost-effective solution to AoIP stream monitoring and management.

NMOS

While all MERGING Devices can be discovered and inter connected using MERGING ANEMAN Network Manager, ANUBIS SPS (as well as all other Merging interfaces) is also capable to register itself into an NMOS server as well as comply to connection requests from a compliant NMOS Network Manager such as VideoIPath from Nevion.

ANUBIS+SPS is compliant with:

    NMOS IS-04 (Discovery & Registration)
    NMOS IS-05 (Device Connection Management)

SMPTE ST2110

MERGING holds strongly to its commitment to broadcasters and has been implementing all the new IP protocols into its products. As a regular participant in IP Showcase events, Merging has implemented ST2110 and AES67. Anubis SPS meets the demanding requirements of JT-NM and is self-certified. We want your trust to be based on objective quality and reliability and submitting all our products to independent testing bodies is vital to ensure interoperability.

DC or POE powered... Or BOTH!

Protect your production with not only audio network seamless switching but also power switching! Connect Anubis to both DC and POE supply. Should one fail, Anubis will switch to the other seamlessly.

Accessible and Controllable Remotely

With remote productions becoming the standard and content creators spread around the world, it is paramount to be able to quickly remote into any production device configuration and operation panels without wasting time on the phone running the user through the device.
Anubis configuration, presets and features are completely accessible remotely for very fast troubleshooting and deployment.

RAVENNA / AES67 Built-in

Using RAVENNA (AES67 compatible), Anubis is able to provide flexible connectivity of every single input and output across standard networks, using off-the-shelf network equipment. The future is most definitely networked audio, and Anubis provides it today.

Switch Mode!

There is another good news about Anubis SPS which is that it can be used in switched mode instead of “redundant ST2022-7 mode”, removing the necessity to have a network switch in scenarios where a DAW simply needs to be connected to a Horus and an Anubis, i.e. when doing a mobile recording.

ANUBIS SPS – Systems Integration

Anubis SPS together with the Merging Audio Device, opens remarkable possibilities. MAD is a multi-ASIO driver (also with WDM support) that has an infrastructure option that supports ST2022-7, ST2110, NMOS and Virtual Machine control. This recognizes that centralized data centers and server-based installations are now the new normal way to manage the global nature of the broadcast industry.

Felles muligheter/spesifikasjoner for alle Anubis modeller:

EVOLVING MISSIONS

From the initial recording through to the final master, there are specific “missions” that require precision and control. If your mission of the day is to create a great mix, you need to be in complete control of your monitoring: reference monitors, nearfields, headphones, sources, surround mix, downmix, etc. Anubis gives you that “Mission Control” in a single, compact device that has unrivalled capabilities defined by the software application. But this is only one mission, MERGING+ANUBIS allows the user to choose the Mission Controller app that fits the task. Today, Anubis offers a first mission – ANUBIS+MONITOR.

MODULAR BY SOFTWARE.

What you buy today can offer more tomorrow. Anubis is already planned to implement two missions with more to follow. Each will put you in control of the tasks you want to accomplish. Today a control room or an on-location monitor controller, tomorrow a music studio or live event interface, the day after, it could be something else that allows you to succeed in your mission. Booting up between missions completely changes the user interface and the function of Anubis. Plug-ins will be released to aid whatever workflow is required. Your investment is protected, your missions are secured!

Monitor Mission

Control room, editing room, mastering room, location recording, opera house, OB vans: countless situations, one mission: Monitor!

Music Mission

Music studios, home studios, recording studios, live concerts, on-stage monitoring: countless situations, one mission: Music!

NETWORK CONTROL.

Anubis not only offers exceptional in-the-box features, it also allows for expanding its capabilities to any other RAVENNA/AES67 devices on the network. From stereo to 22.2 monitoring, from a four-piece rock band to a full symphony orchestra, Anubis puts you in control of any situation, from one meter from your equipment to kilometers away, directly from its superb touch screen or on your tablet or computer through its built-in web server.

MASSIVE SCALABILITY.

Your Anubis might look very small, but it has everything built-in to become a giant… Just with the tip of your finger on its touch screen you have access and control of the I/Os from any other Merging device on the network. We also provide you similar ability to connect the IOs from any other compatible AES67 device, this extends it to something massive. “Pairing” these other devices allows Anubis to extend its I/O as if they were built-in. Anubis can reserve all or part of these paired devices, make them available to other users on the network and/or secure them for your own recording needs. With its internal DSP, Anubis can manage as many as 256x256 signal paths. Awesome power!

NETWORK INTEGRATION.

Should you need a larger or more complicated RAVENNA/AES67 network configuration, involving devices from other vendors, DAWs, consoles, or simply multiple Anubis all together, Anubis integrates into existing ANEMAN controlled ecosystems very simply. ANEMAN unlocks the huge potential of a large network with an intuitive and powerful User Interface.

BROADCAST COMPLIANCE.

IP in broadcast is the technology of now but there are standards to observe.  Anubis has been designed from the outset to be ST2110 compliant, but some broadcasters are adhering to ST2022.  No problem for Anubis. Merging’s experience in being a key part of IP Showcase events for years and being a member of AIMS Alliance, means we keep abreast of the developments in broadcast connectivity, discovery and control. Mission protected!

NETWORK AUDIO MONITORING.

Anubis not only allows monitoring analog or digital inputs, it also allows directly monitoring any AES67/RAVENNA stream on your network. In a fast-moving industry toward network audio, Anubis is the perfect investment to monitor your traditional audio sources today and add network audio monitoring tomorrow… with the same ergonomics: no complicated sysadmin tools required, just point your stream in a coherent list and select it like any other sources.

UNIVERSAL DRIVERS.

·        Windows ASIO

·        MacOS CoreAudio

·        Linux ALSA

MERGING QUALITY.

This ultra-mobile and stylish unibody case offers astonishing A/D performance with a dynamic range of 139dB with equally impressive mic pres. Our pristine D/A technology ensures that you hear what your project deserves. Anubis come in two variants: Anubis Pro gives you exceptional performance up to 192kHz. If your mission is working in true high-resolution, Anubis Premium offers up to 384kHz and DXD plus DSD flavors up to 256. What else would you expect from Merging!

ULTIMATE SOUND QUALITY.

Killer headphone circuit! Merging has invested great efforts in designing our best ever headphone preamplifier, offering the precision you need to evaluate your mix whatever the sample rate.

Anubis is engineered with the latest generation converter technology, coupled with 28 years of experience in designing excellence reference quality. A 32bit signal path from input to output via the mixer, combined with the latest circuit design, its short audio signal path decreases the latency and improves the power distribution. Phenomenal performance at any sample rate!

DUAL GAIN 32BIT A/D CIRCUITRY.

Not only does this provide huge dynamic range with ample headroom, but you can control the gain independently for different circuits with clickless steps. It also allows for software add-ons. Creative innovation!

SPLIT CHANNEL ON ALL INPUTS.

Every input has a separate split gain control for sending them to different paths. Typically, one for the recording device and one for the FOH.

EXCEPTIONAL MECHANICS.

Anubis is not a piece of bent metal with a few knobs on the top. It may be a small desktop unit, but it is beautifully crafted from a single piece of aluminium. Inside is a miracle of production engineering under the guidance of masters of the miniature, Sonosax. Swiss engineering at its best!

BACKPACK PORTABILITY.

Anubis is designed to go where you do. Its rugged design and carry case with a weight of 950gr and dimensions of 200 x 128 x 40mm, make it ideal for stuffing in a backpack. It fits easily on your desktop or can be mounted on a microphone stand.

SUPERB SPECIFICATIONS.

Merging has a reputation for getting it right when it comes to audio quality and we have years of experience. It would be surprising if Anubis was any less than the best we can achieve. Great sound is only part of the story, just look at the performance measurements.

 DEVICE CONNECTIVITY.

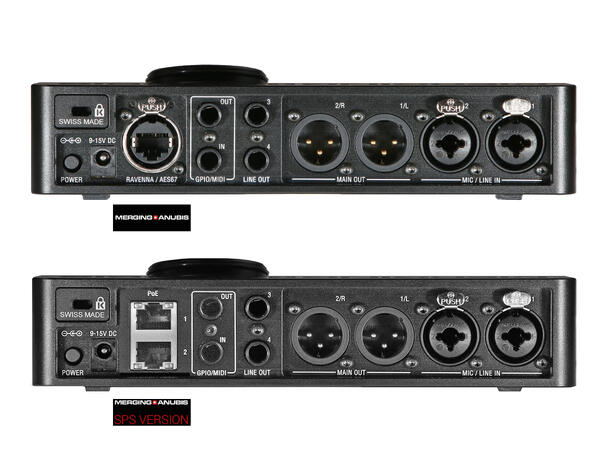

The Anubis interface has two analog high quality combo connectors, and an additional two front line/instrument analog inputs. On the output side, you get two gold plated XLR and two TRS jacks. In addition, there are two independent stereo headphone jacks with the best quality amplification we have ever done. There is also MIDI IO or GPIO and the all-important AES67/RAVENNA connector.

REDUNDANT POWER OPTIONS

Anubis is small and compact, it can be powered by its main PSU or / and from PoE (Power over Ethernet) making it a reliable redundant powered device. The input voltage range offers the possibility to use a wide range of power supply such as a battery.

ANUBIS+MONITOR

The Monitor Mission is designed for professional applications where superior monitoring capabilities are truly mission critical. No matter how small your studio, monitoring matters. State of the art features that are the standard of today have been carefully integrated, while unique and future proof capabilities were specifically added to the feature set to meet the challenges of tomorrow.

MONITOR FOR EVERYONE.

The concept of software-based Missions allows for designing very versatile and highly dedicated applications, upgradable in time, and precisely targeting the requirements of multiple markets. The Monitor Mission is the central node of all Music and Recording Studios, its extreme sound quality fulfils the essential requirement of all Mastering Studios, its large number of supported surround formats will please all Film and TV Post Studios, its AoIP standards support makes it the perfect choice for Broadcast Studios, OB Vans or Editing Rooms, while its compactness and robustness make it the ideal choice for Location Recording and Live Events monitoring.

KEY FEATURES.

• Scalable/Networkable
• Studio/Mobile
• Mastering grade Preamp and Amp
• Sampling rate up to 192kHz (Pro)
• Sampling rate up to 384kHz/DXD (Premium only)
• DSD support up to DSD256 (Premium only)
• Direct Monitoring of DAW running on Windows, MacOS and Linux
• Direct AES67/RAVENNA Sources monitoring
• Direct decoding of Ambisonic Sources
• Cough Cut on every input
• All state of the art monitoring features (Bass management, Speaker alignment, Talkback, Down-mix, etc…)

EASE OF OPERATION.

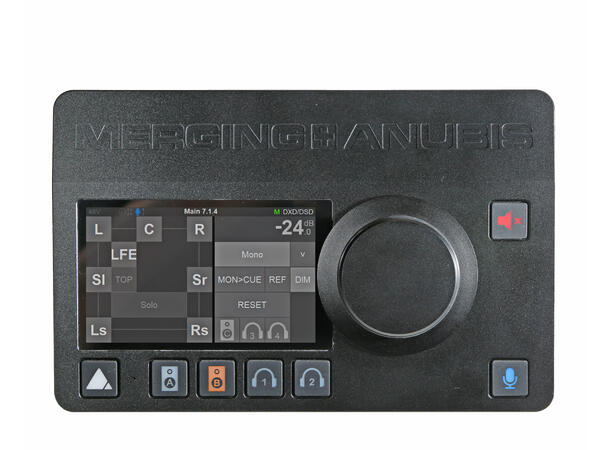

• Comprehensive user interface through the integrated multi-touch display
• Dedicated buttons for Volume control, Monitors selection, Talkback and Mute with customization support
• Advanced user interface through any tablet or web browser
• Dedicated and configurable metering page for sources and monitors
• Flexible Talkback with built-in or external microphones and control
• Footswitch support

VERSATILE AND SCALABLE.

• In-the-box monitoring with ultimate analogue specifications:
• ·        Up to 4 Monitors
• ·        Up to 4 Sources
• ·        Up to 4 Cues Mixes with ultra-low latency
• ·        Up to 2 Headphones
• ·         Built-in Dual Gain 32bit Preamp circuitry on all inputs

·         AD split feature on all inputs: Each one of the 4 Anubis input channels can be split and thus have its independent gain and cut feature This allows the separation of the inputs between the FOH and the Monitoring engineer, as well useful if you want to perform a live stage line check while cutting the FOH feed.

• ·        Exceptional quality and very powerful Headphone Amp suitable for ultra-low to very high impedance headphones (near zero impedance output)

• Expandable I/O through Hapi or Horus:
• ·        Up to 8 Monitors capable of up to 22.2 (maximum 32 channels)
• ·        Up to 128 Sources capable of up to 22.2 (maximum 128 channels)
• ·        Up to 8 Cues
• ·        Up to 256 additional Analogue I/Os
• ·        Up to 256 additional MADI, AES3, SPDIF I/Os
• ·        Up to 256 additional AES67/RAVENNA
• ·        Up to 256 additional Digilink  HD I/Os

• o   In-the-box I/O pairing management with Merging devices
• o   Any other AES67/RAVENNA devices pairing using ANEMAN

COMPLETE BASS MANAGEMENT AND SPEAKER ALIGNMENT

·       Freely configurable crossover filters on every speaker and LFE

·       Trim Level and time alignment delay for every speaker and LFE

·       Time alignment / Lip sync delay up to 200ms
