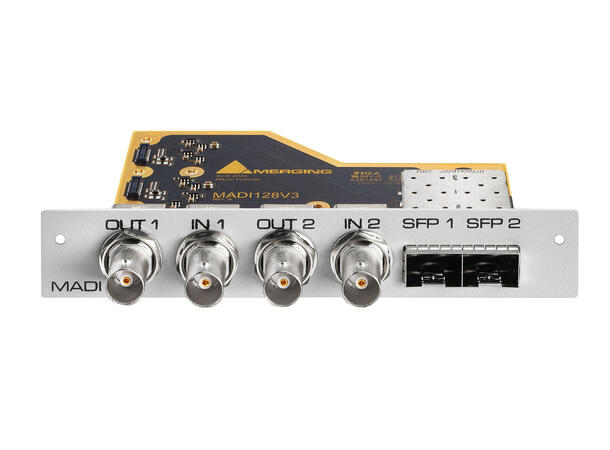

MADI Card 128 Channels with SFP cages for Hapi Mk III

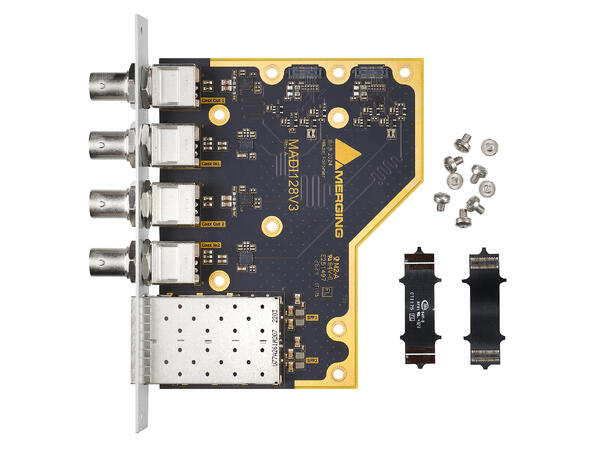

The Merging MADI128V3 expansion card doubles the total MADI channel count to up to 128 inputs and 128 outputs @1FS for Hapi MkIII. The MADI128V3 is also equipped with a two slots Small Form-factor Pluggable (SFP) cages, suitable SFP modules can be fitted. SFP transceivers for optical multi-mode or single-mode for transmission or mini BNC for coaxial transmission are not included.

Features
Two pairs of MADI Coaxial inputs and outputs (4 X BNC connectors)
128 discrete channels of digital input and output (extended mode) at 1FS
Up to 384 kHz sampling rate
24-bit resolution
Fully compliant MADI (AES 10-1991)
2 x SFP Cages slots.
