8 Channel Mic/Line A/D and D/A Card for Hapi Mk III – Premium Version

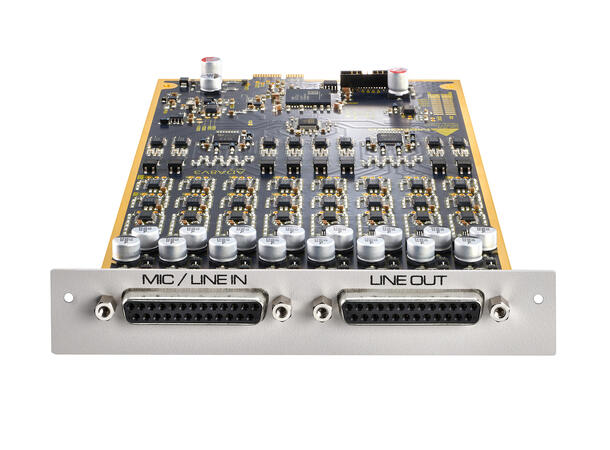

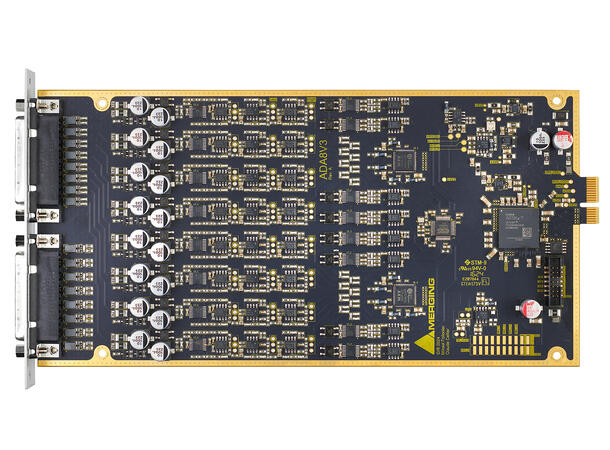

The ADA8V3P is a complex input and output card for the Merging audio mainframe Hapi Mk III. With eight inputs and eight outputs, it offers two-way audio conversion: analog to digital and digital to analog.

These remote controlled Mic/Line Input and Output cards feature 3rd generation Dual Gain topology, inspired by the exceptional Anubis preamps, for highest audio quality without compromise.

With two ADA8V3P 8-channel Mic/Line In and Line Out Cards you can configure Hapi Mk III for up to 16 analog I/O channels.

The Premium card ADA8P has superior specifications and supports sample rates up to 352.8 kHz (DXD) and 384 kHz as well as bitstream formats up to DSD256.


Features
8 exceptionally transparent, Swiss designed preamplifiers plus 8 outputs
Dynamic range of 139 dB (A-weighted, typ.) on the line inputs
Preamps offer up to 78 dB of gain (with Boost)
Full remote access for all parameter changes
Dynamic range of 125 dB (A-weighted, typ.) on the line outputs
Phantom power/polarity invert/low cut/impedance switchable per channel
Switch to line level on a per channel basis via display or remotely via browser
Auto-mute circuitry for “no-pop” power cycling
Digitally controlled output trims for line-up procedures
2x 25-pin Sub D connector
Sample rates up to 352.8 kHz (DXD), 384 kHz; DSD64, DSD128 and DSD256
Each Premium card is measured for the highest specs and smallest tolerances!
