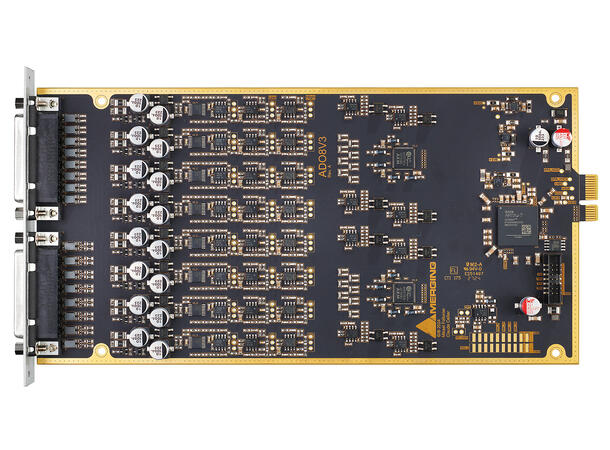

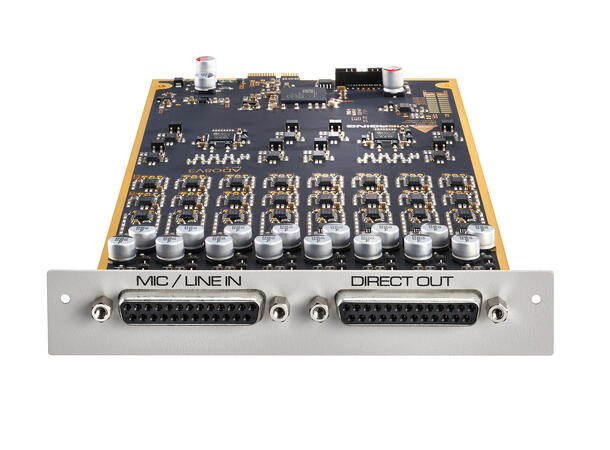

8 Channel Mic/Direct Outs A/D Card for Hapi Mk III

The ADO8V3S input card is an outstanding addition to the Merging Hapi Mk III audio mainframe.

With 8 mic/line inputs, it delivers unparalleled audio quality and a dynamic range of an impressive 139 dB (A).

The Swiss-designed preamps offer up to 78 dB of gain with exceptional transparency, thanks to Merging’s unique 3rd generation dual gain topology design. Its remote accessibility allows you to easily adjust all parameters for each channel. The ADO8V3S sets a new standard in audio circuit design, and it even includes analog direct outs (post-mic-pre) for monitoring or external processing.

The ADO8V3S supports sample rates up to 192 kHz.

Features
8 exceptionally transparent, Swiss-designed preamplifiers
Up to 78 dB of gain (with Boost)
Remote/local switch to line level on a per-channel basis
Full remote access for all parameter changes
Phantom power/polarity invert/low cut/impedance switchable per channel
Removes the need for DI-boxes
Direct line out for each channel (post mic preamp)
Dynamic range of 139 dB (A-weighted, typ.)
Auto-mute circuitry for “no-pop” power cycling
Preamps MIDI remote control support
2x 25-pin Sub D connector
Sample rates up to 192 kHz
