Hapi MKII network converter
8 channel AES I/O, 8/2 channel ADAT/SPDIF Optical I/O, Ravenna
Hapi MkII Overview
MERGING+HAPI has been a hugely popular networked audio
converter and instrumental in introducing so many to the exciting world
of RAVENNA/AES67. Its economical form factor made it the ideal local
stagebox or studio rack unit for any application. Now is the time to
build on that success with new technology and new features that still
allow full interface card compatibility with the original Hapi and Horus
products.
Hapi MKII utilizes the ZMAN technology introduced with Anubis
and this powerful processor allows some very meaningful performance
upgrades. The recent introduction of the ADA8S and ADA8P cards improved
the headroom of the mic-pre inputs and effectively doubled the analog
I/O count to 16 in/16 out in DSD, all in 1U rack mountable box.
Merging’s range of audio device options make Hapi the optimum interface for any DAW, regardless of OS.
- Channel-based routing. Each channel can be routed individually to make the most efficient use of resources
- Improved Headphones specifications and features
- Mastering grade Headphone Amp
- Powerful Headphone Amp suitable for ultra-low to very high impedance headphones.
- Headphones DSD volume support (DSD64, DSD128, DSD256)
- Headphones DSD256 support.

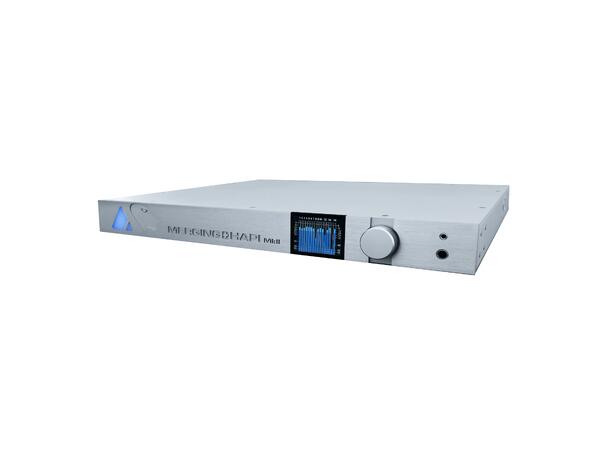

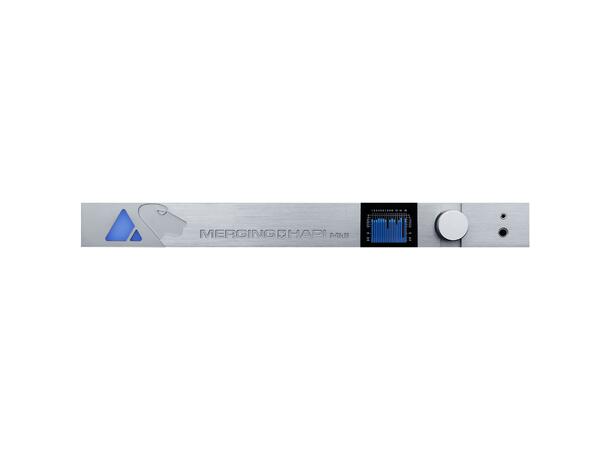

- New front panel with improved display. Clear Plexiglas with dimming options
- ST2022-7 Support. Perfectly complementing Anubis SPS and
MAD, Hapi MKII is now fully compliant with the Seamless Protection
Switching strategy
- Switch mode support - Remove the need for an external network switch when using one other Networked Interface
- Additional DA Roll Off filters
- Per channel DA Trims level and polarity support
- 0.1 dB level precision steps on DA and all trims – Precision mastering control
- Per channel Headphones Trims level and polarity support

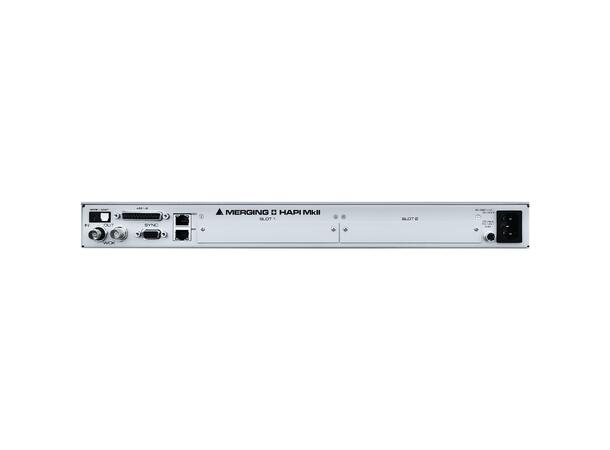

Base Unit - Hardwired Features
Digital I/O
- 8 AES/EBU I/O (D-SUB)
- 8 ADAT / 2 SPDIF (Switching)
- RAVENNA / AES67 (RJ45)
- Word Clock I/O
Synchronization I/O
Sample Rate support
- 44.1 – 384 kHz PCM
- DXD and DSD64/128/256
User Interface
- Remote control over LAN (CAT5E/CAT6)
- Direct access on unit with rotary control
Redundant Power Options:
- Optional DC power input to be used as a redundant or alternate power source
Options
2 Option slots that fit any combo of:
- 8 Channel Mic/Line Input Card (AD8D / AD8DP)
- AD8D sample rates from 44.1 -> 192kHz
- AD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256

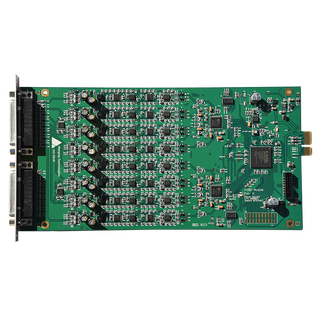

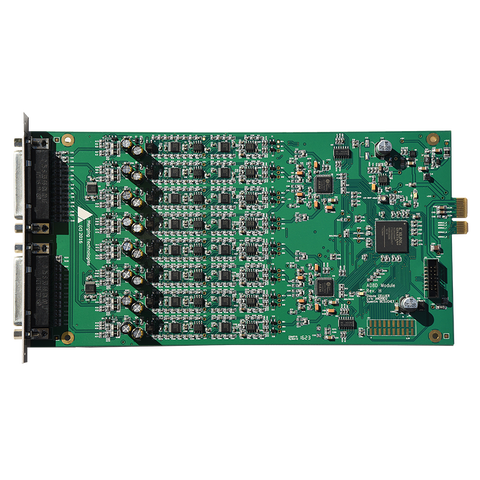

- 8 Channel Mic/Line Input Card (AKD8D / AKD8DP)
- AKD8D sample rates from 44.1 -> 192kHz

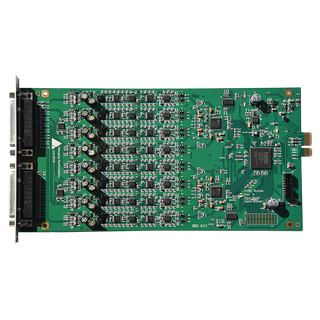

- AKD8DP sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256

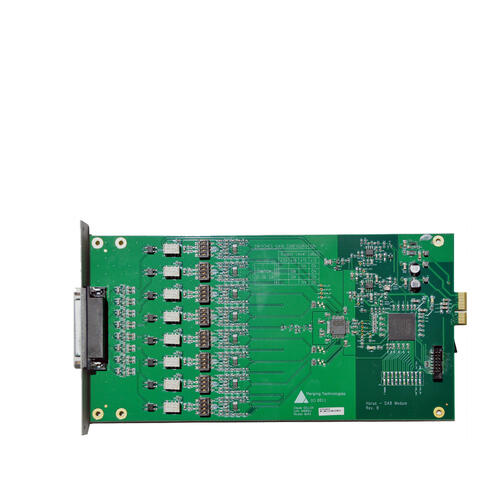

- 8 Channel Line Out Card (DA8/DA8P)
- DA8 Sample rates from 44.1 -> 192kHz
- DA8P sample rates from 44.1 ->384 kHz, DXD/DSD64/128/256
- 8 Channel Mic/Line Input & 8 Channel Line Out Card (ADA8)
- Sample rates from 44.1 -> 192kHz

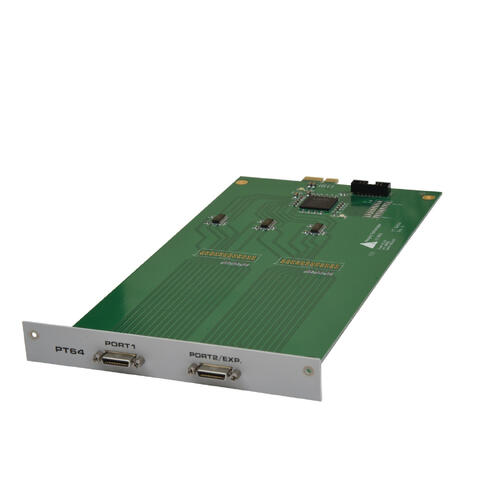

- 64 Channels of Pro Tools HD™ connectivity in each card (PT64)
- Sample rates from 44.1 -> 192kHz
- The left slot may be fitted with 64 I/O MADI coaxial/optical module (MADM/MADS)
Note: P and “non-P” cards (Premium and Standard) can be mixed in the same unit
