Maag Audio EQ2
Proffesjonell eq med den klassiske Air Band fra Maag Audio

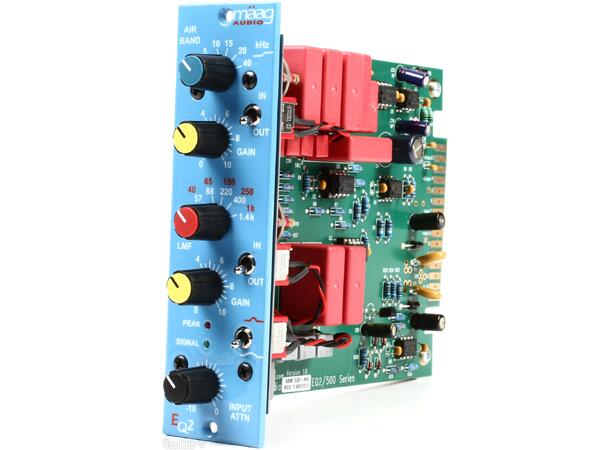

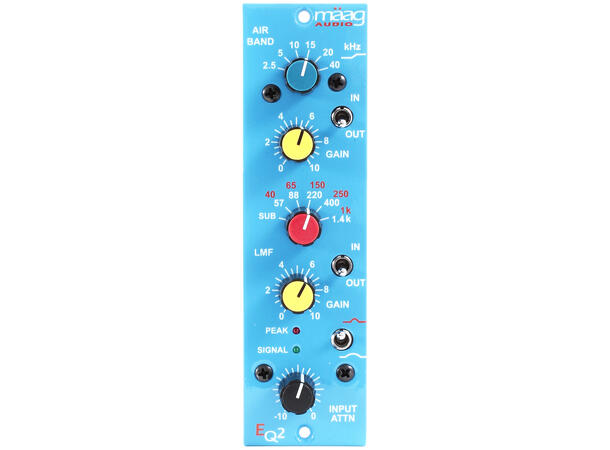

The Maag Audio EQ2™ (500 Series) is a no
compromise one channel 2 band equalizer with AIR BAND®, Low Mid
Frequency (LMF) bell boost from SUB to 1.4 kHz, and an INPUT ATTN to
control down to –12.5 dB of attenuation. The EQ2’s AIR BAND® is equipped
with an additional sassy frequency selection @ 15 kHz, making the EQ2
hard to resist in any situation. The LMF provides both tight or wide
bell curve options to dial in the perfect amount of warmth on the 2-bus.
When it comes to tracking, the EQ2 will quickly become your favorite
preamps’ “better half” by controlling the input (INPUT ATTN) (great for
correcting over driven mic preamp transformers) before eq’ing with the
versatile AIR BAND and LMF. The EQ2 is compatible with the API 500-6B
lunchbox® and 500VPR rack systems and any other 500 Series spec rack.
Following its EQ4® predecessor, the EQ2 provides unparalleled
transparency and top end presence with the same high quality components
found in the powerhouse 6 band EQ4. EQ adjustments are obtained with
minimal phase shift and detent controls allow for easy recallable
settings, even on the INPUT ATTN.
Specifications |
Value |
Frequency Response |
-2 dB points, 10Hz & 75kHz |
Nominal Input Impedance XLR) |
48 K Ohms, balanced |
Nominal Output Impedance (XLR) |
50 Ohms, balanced |
Headroom |
+27 dBu |
THD + Noise |
< 0.005% |
|
