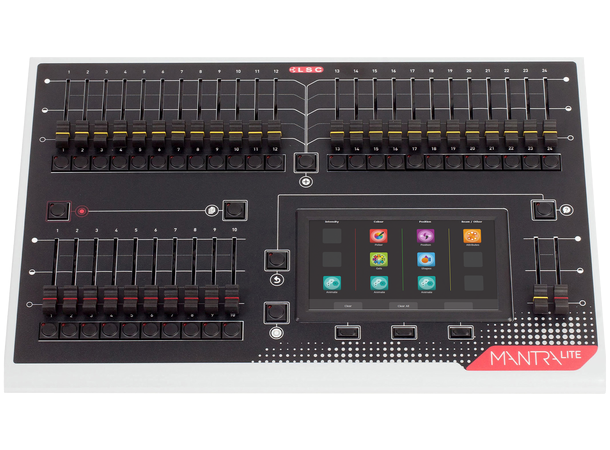

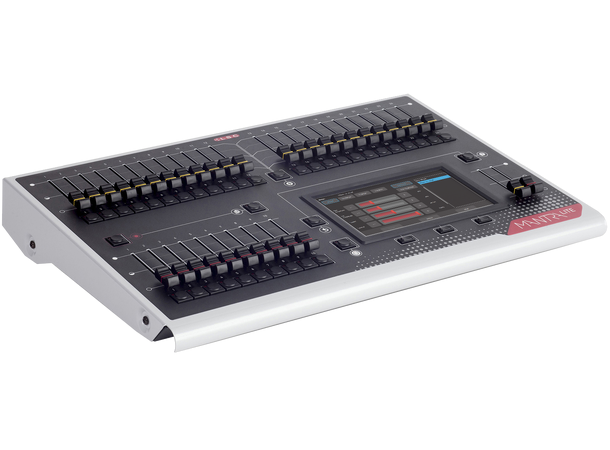

Mantra Lite
What you imagine, you create
The Mantra Lite is an award-winning lighting controller for LEDs, moving lights and conventional dimming. Expandable by adding up to two wings, the Mantra Lite is ideally suited for all types of operators in small theatres, places of worship and entertainment venues.
Specs:

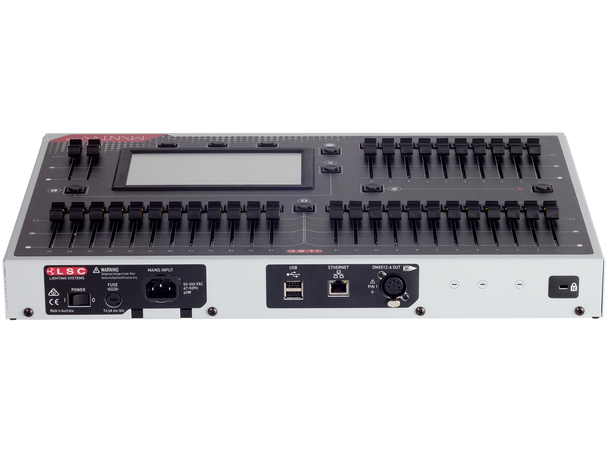

Outputs
- 1 x RJ45 Ethernet connector for sACN and/or Art-Net
- 2 x USB Type-A ports
- 1 x XLR 5-pin output connector for DMX512-A (E1-11)
Control
- 18cm capacitive LCD screen with app-based user interface
- Direct control of up to 24 fixtures
- 10 playback masters
- 100 cue lists/chases, each with a maximum of 250 cues/animations
- 1 x playback master (red) and 1 x fixture master (yellow)
Protection
- Nn-screen, context-sensitive Help menus
- Full brownout protection via on-board mini-UPS providing five seconds of power for automatic show save
Expansion
- Main console expandable with up to two wings via USB connection
- Second DMX universe on main console possible by attaching an LSC QX1 node to USB output
Memory
- 16GB flash memory
- External show backup via USB
Power
- Nominal 100-240V, 50-60Hz
- Typical operating range of 90-260V, 45-65Hz
- Power input connector via IEC socket with mains cable provided
- /E models supplied with external UL-certified power supply, connected via 2.5mm 12V DC jack
Mechanicals
Mantra Lite
- 490mm (w) x 330mm (d) x 80mm (h)
- Weight: 5kg
Mantra Lite + 1 Wing
- 735mm (w) x 330mm (d) x 80mm (h)
- Weight: 7.5kg
Mantra Lite + 2 Wings
- 980mm (w) x 330mm (d) x 80mm (h)
- Weight: 10kg
Corrosion-resistant, powder-coated steel with rear-screened polycarbonate durable front panel
Useful front-panel lip doubles as a handy carry handle
Peace of mind
- CE (European) and RCM (Australian) approved
- Two-year warranty
- Designed and manufactured in Australia by LSC – an Australian-owned company with over 40 years’ experience in developing world-first products
