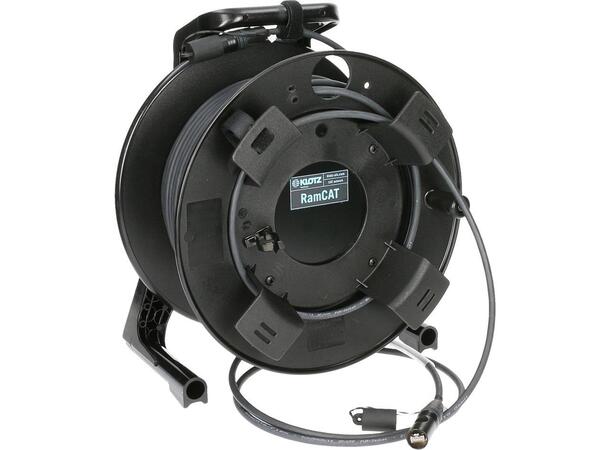

Klotz RC6EEW flexible RamCAT6 network cable drum system for use on the road with etherCON Cat.6a

ruggedized Cat. 6 Outdoor, SF/UTP, AWG26/19 stranded
suitable for dragchains (tested in endurance test)
compression resistant construction due to a PE cross
10 GB Ethernet acc. to IEEE 802.3an
extra-rugged PUR jacket
ruggedized connector with Cat.6a component compliance
intermateable with the existing etherCON Cat.5 range

Attention! does not intermate with the Cat.6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B

The RC6EE is a flexible3 RamCAT6 cable designed for data transfer in mobile operation. Developed for a frequency of 500 MHz, it is suitable for data transfer rates of up to 10 Gbit/s.  ,
The RAMCAT6 is the cable of choice for data transfer in the Ethernet applications 1000BaseT and 10GBase-T where drag chains and cable drums are used. The RC6EE offers characteristic impedance of 100 O and has four twisted pairs with copper cores (19 x 0.10 mm). The matched lay lengths of the individual pairs and the sophisticated cable stranding with central PE cross are designed to maximize NEXT (near-end crosstalk) and FEXT (far-end crosstalk) values.  ,
With cross-shaped PE central filler and abrasion-proof PUR jacket, the cable is ideal for mobile use on the road. Dual shielding reliably protects against electromagnetic interference. The RC6EE is made up with  ,

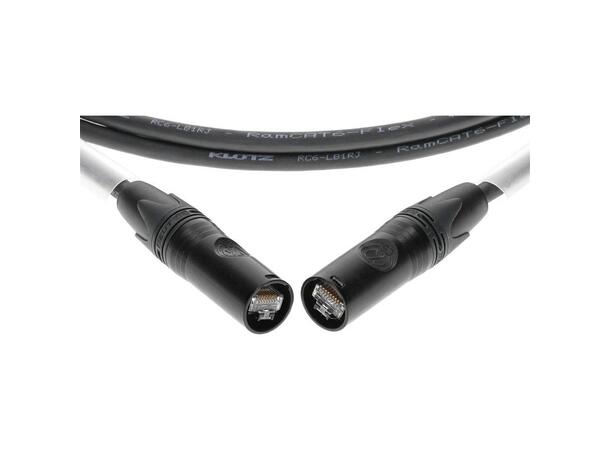

Neutrik etherCON connectors. These RJ45 connectors with rugged metal housing are CAT6a-compliant and downward-compatible with previous standards. The technically advanced CAT6 standard presents a  ,
particular challenge for cable designers.
